Installing HiPath 3800
Replacing the board lock
Install the board adapter increases the board length. The boards jut out slightly from the board
shelf. To ensure that these boards can still snap into place in spite of the board adapter, the
upper black lock must be replaced with a gray lock.

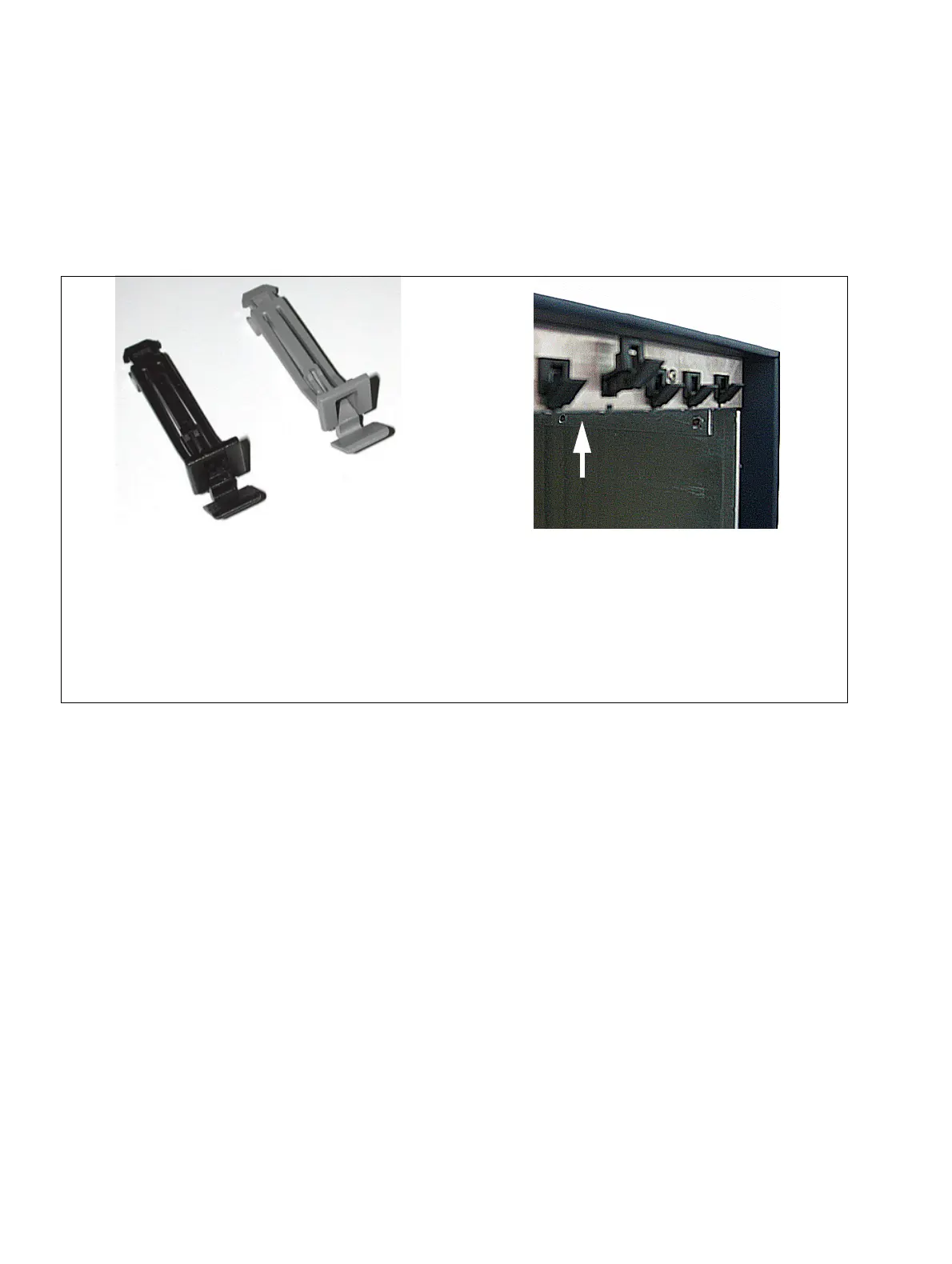

Figure 4-24 Replacing the board lock
Remove the black latch
(At the point marked with the arrow press
the latch out of its seating and pull it out of
the shelf.)
Black and gray board locks
