Nur für den internen Gebrauch Installing HiPath 3000
Installing HiPath 3550, HiPath 3350, HiPath 3500, and HiPath 3300
● Procedure: LAN cable shield contacts
Step Activity

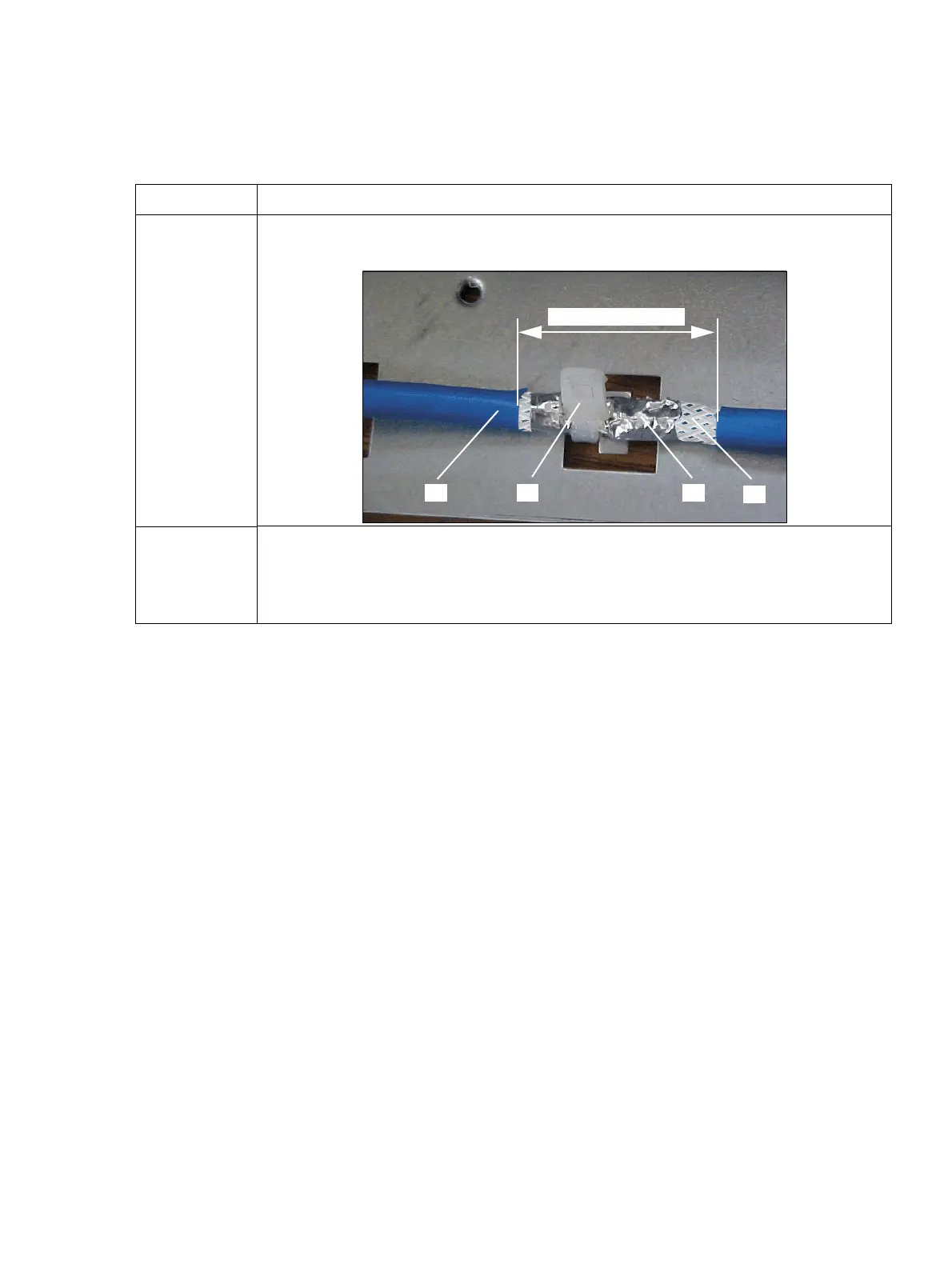

1. Expose the external shield (D) by stripping the LAN cable sheath (A).
Stripped length = approx. 30 mm.
2. Wrap conductive tape (C) around the exposed external shielding at least
1.5 times and use a cable binder (B) to attach it to the housing, maintaining
a continuous conducting contact between the tape and the housing (see
figure).
A
Stripped length
B
C
D
