Installing HiPath 3000 Nur für den internen Gebrauch
A31003-H3590-S100-7-7620, 06/2012
4-128 HiPath 3000/5000 V9, Service documentation
inst_h3.fm
Installing HiPath 3550, HiPath 3350, HiPath 3500, and HiPath 3300

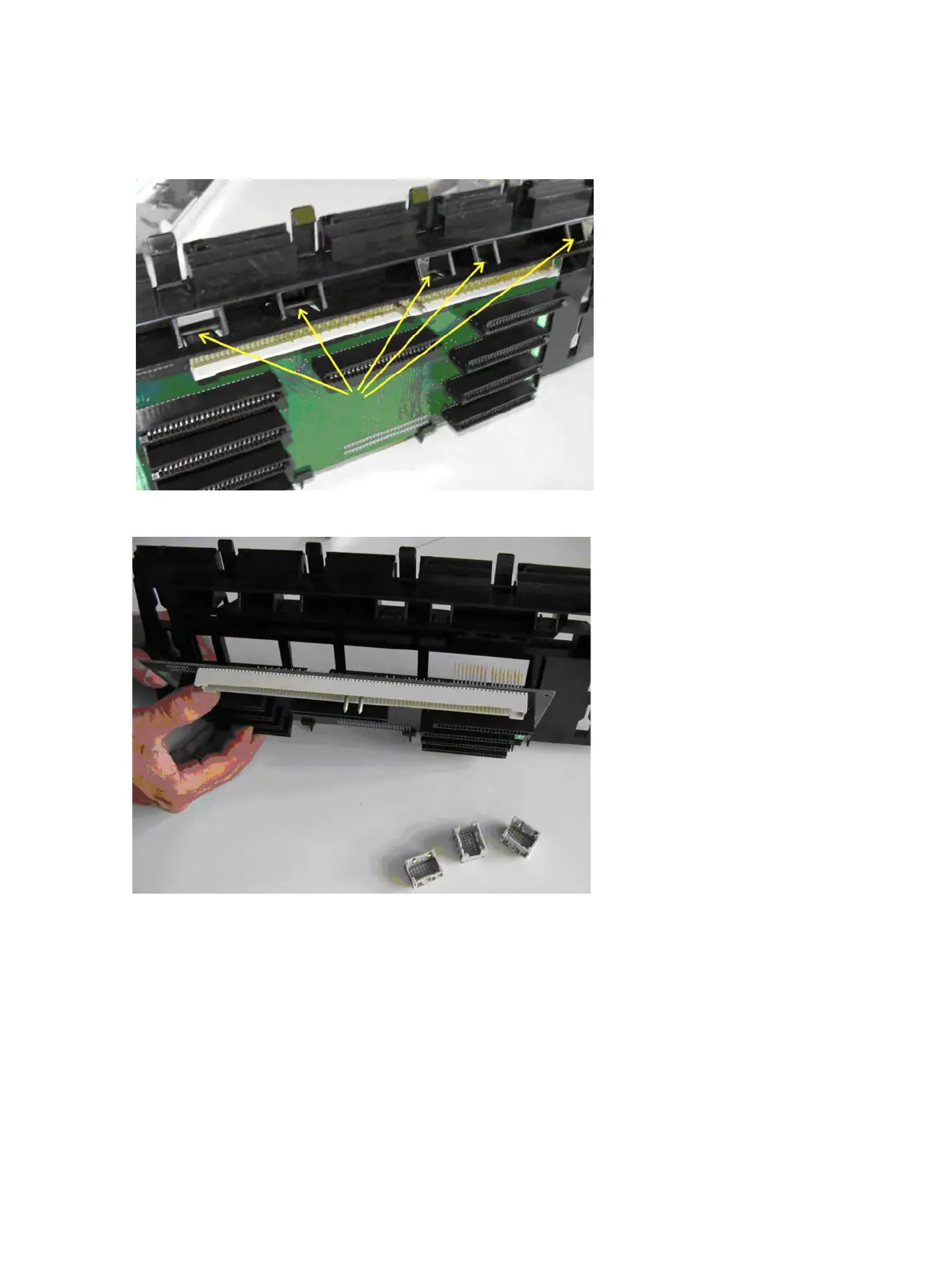

c) Release the plastic hooks between the backplane and the case:
d) Press the backplane forward and slide it upward out of the case.
8. Insert the new backplane into the HiPath system.
9. Attach the container for the Hvt cable to the back of the backplane.
10. Mount the housing with the backplane on the baseplate of the system.
11. Install the motherboard in the system and the backplane.
12. Install the power supply.
13. Install the expansion cards and optional modules in the HiPath system.
14. Insert the plastic clips on the front of the motherboard and expansion cards.
