start_h5.fm

A31003-H3590-S100-7-7620, 06/2012

HiPath 3000/5000 V9, Service documentation

6-25

Nur für den internen Gebrauch Startup and Administration HiPath 5000

Starting HiPath 5000

12. Click Next to proceed with the setup routine.

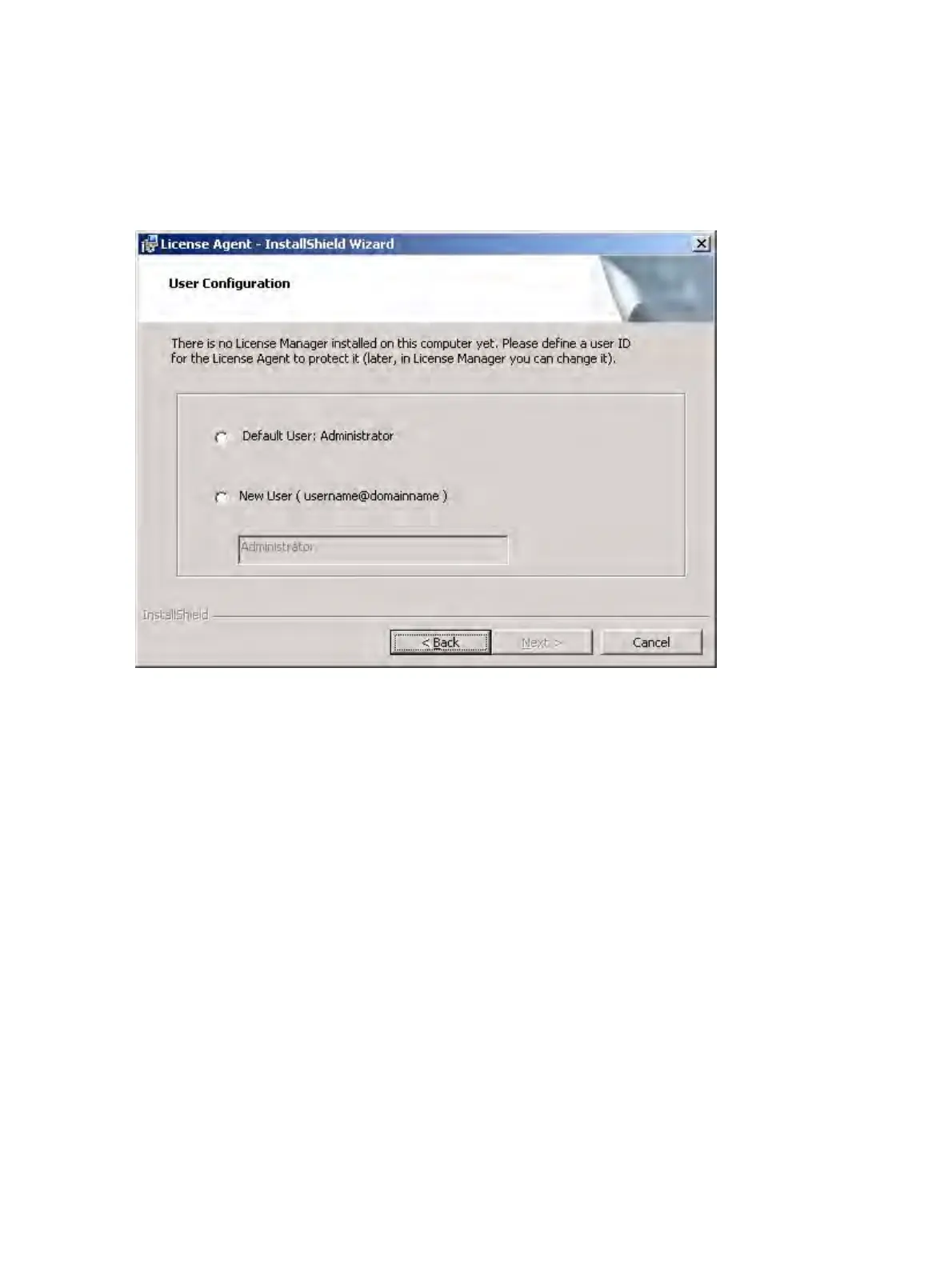

The User Configuration dialog appears.

Configure the user account for the license agents (Customer License Agent CLA).

13. Click Next to proceed with the setup routine.

14. When installation is complete, a dialog appears in which you can terminate the setup with

Finish.
