Expanding and Upgrading HiPath 3000 Nur für den internen Gebrauch
A31003-H3590-S100-7-7620, 06/2012
9-20 HiPath 3000/5000 V9, Service documentation
exup.fm
HiPath 3000Expanding

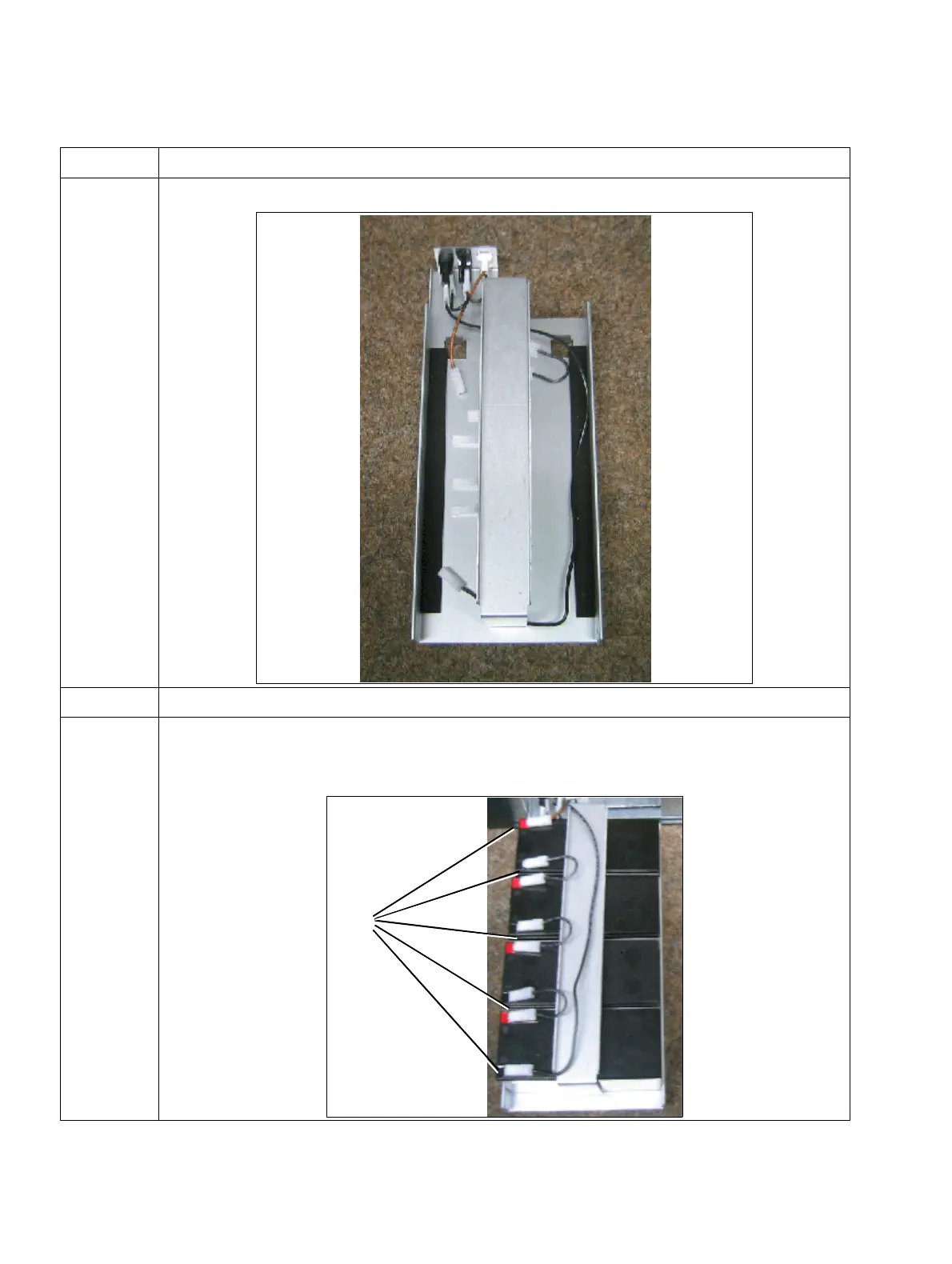

6. Remove the mounting screw [A] on the battery retainer [B].
7. Remove the battery retainer and set aside.
8. Insert the battery carefully and connect it: To do this, slide the eight cable connec-
tor lugs [D] carefully onto the two connection contacts on each of the four batter-
ies.
Step Activity
[A]
[B]
[D]
