Plug-in cables
Hardware - SIMADYN D 9-5
Edition 06.2002
9
Ribbon cable
SC13
40 pin / 4 x 10 pin
Application
Connects the 40-pin plug connector of an
input/output module with the 10-pin plug connectors of
four interface modules.
Features
• unscreened ribbon cable
• one 40-pin socket connector
• four 10-pin socket connectors with partial connector
labeling, A to D and the assignment
A: Pins 1 to 10
B: Pins 11 to 20
C: Pins 21 to 30
D: Pins 31 to 40
of the 40-pin socket connector
Cable ends
Plug connectors according to DIN 41651 with strain relief
at both ends.
Length 2 m
Order No. 6DD1684-0BD0
Table 9-5 Ribbon cable SC13
2
1
3
0
C
1
1
B
1
1
0
A
3
1
4
0
1
7
,
3
D
2
0
Connector marking
Color coding
1. core
l
t
55,6

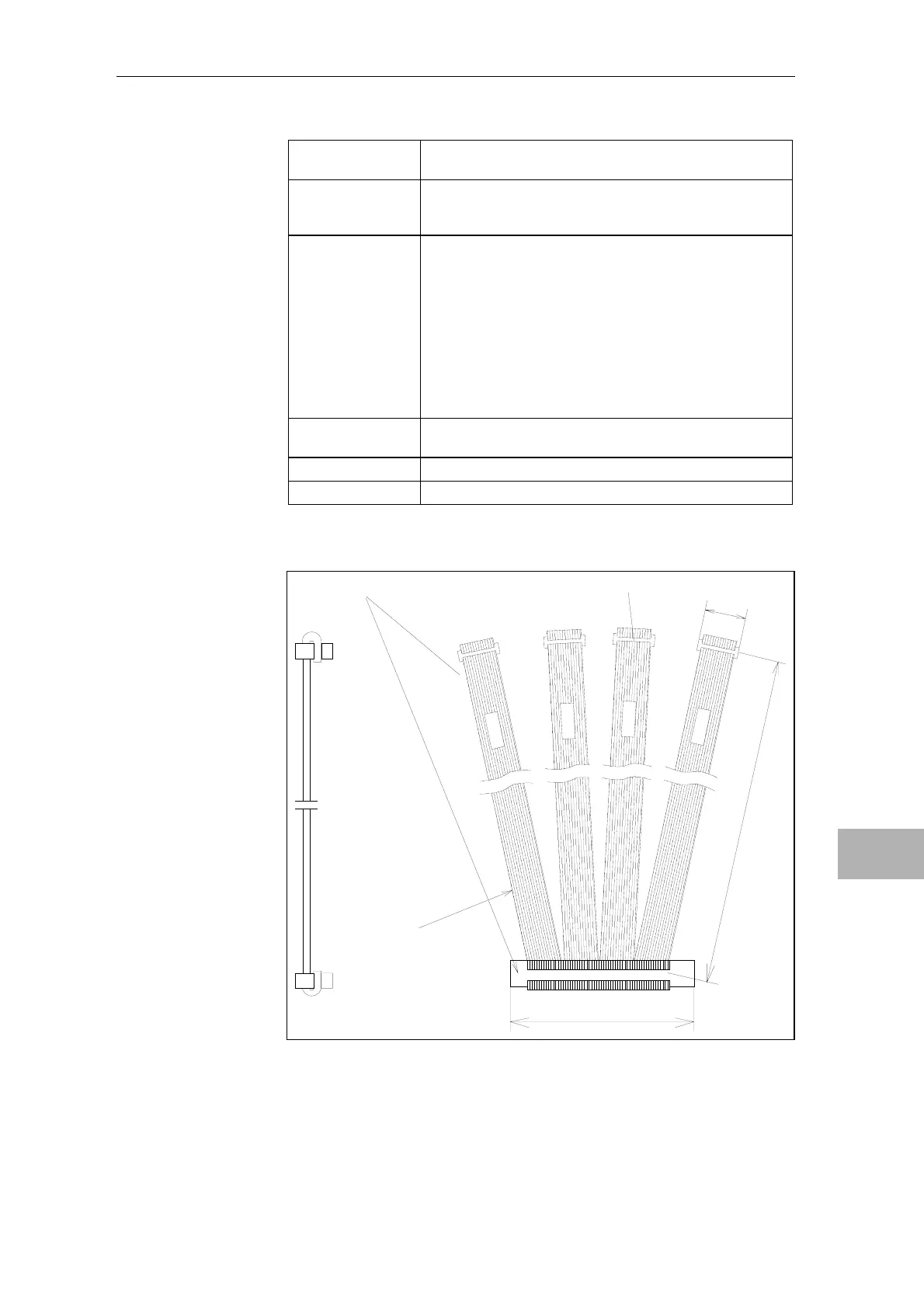

Fig. 9-1 Ribbon cable SC13
SC13
