Plug-in cables
9-8 Hardware - SIMADYN D
Edition 06.2002
Round cable
SC50
15 pin / 26 pin
Application
Connects the 15-pin SUB-D socket connector of an
expansion module with the 26-pin plug connector of an
interface module.
Features
• screened round cable
• 15-pin SUB-D plug connector
• 26-pin socket connector
• (1:1) connection, pins 16 to 26 of the socket connector
are not assigned
Cable ends
Expansion module: SUB-D plug connector according to
DIN 41652
Interface module: Plug connector according to DIN 41651
with strain relief.
Length 2 m
Order No. 6DD1684-0FA0
Table 9-9 Ribbon cable SC50
2000 +/- 0,1
Shrinking tubing
4
3
2
1)
1
1
26

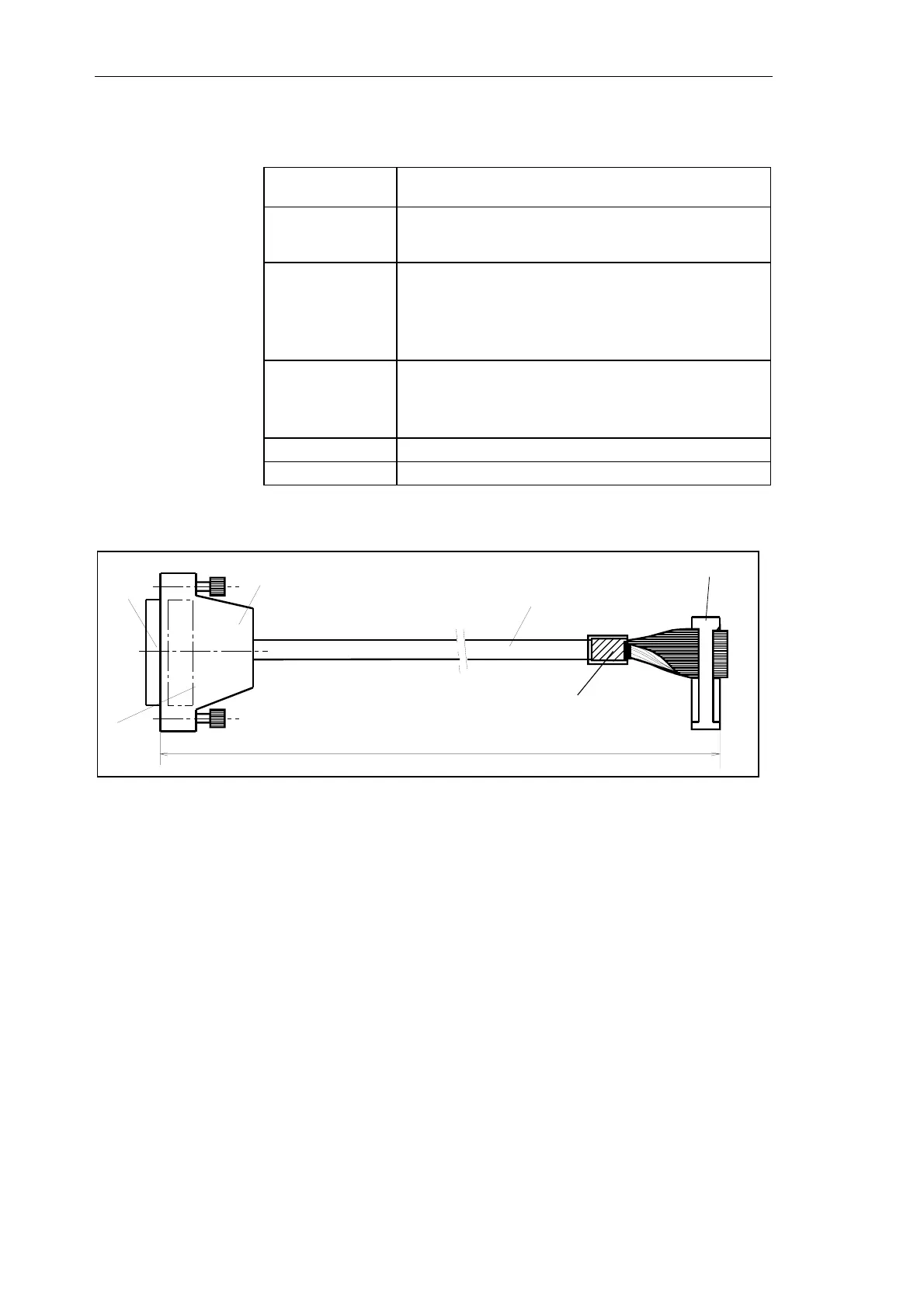

Fig. 9-3 Ribbon cable SC50
SC50
