Plug-in cables
Hardware - SIMADYN D 9-7
Edition 06.2002
9
Round cable
SC49
50 pin / 2 x 26 pin
Application
Connects the 50-pin SUB-D socket connector of an
expansion module with the 26-pin plug connectors of 2
interface modules.
Features
• screened round cable
• 50-pin SUB-D plug connector
• two 26-pin socket connectors with partial connector
labeling A and B with the assignment
A: Pins 1 to 25
B: Pins 26 to 50
of the 50-core ribbon cable
Cable ends
Expansion board: SUB-D plug connector according to DIN
41652
Interface module: Plug connector according to DIN 41651
with strain relief.
Length 2 m
Order No. 6DD1684-0EK0
Table 9-8 Ribbon cable SC49
ca. 50
Shrinking tubing
1
2
1)
L
a
b
e
l
g
l
u
e
d
o
n
t
h
e
c
a
b
l
e
4
S
h
r
i
n
ki
n
g
t
u
b
i
n
g
A
B
3
A
B
2000 +/- 15

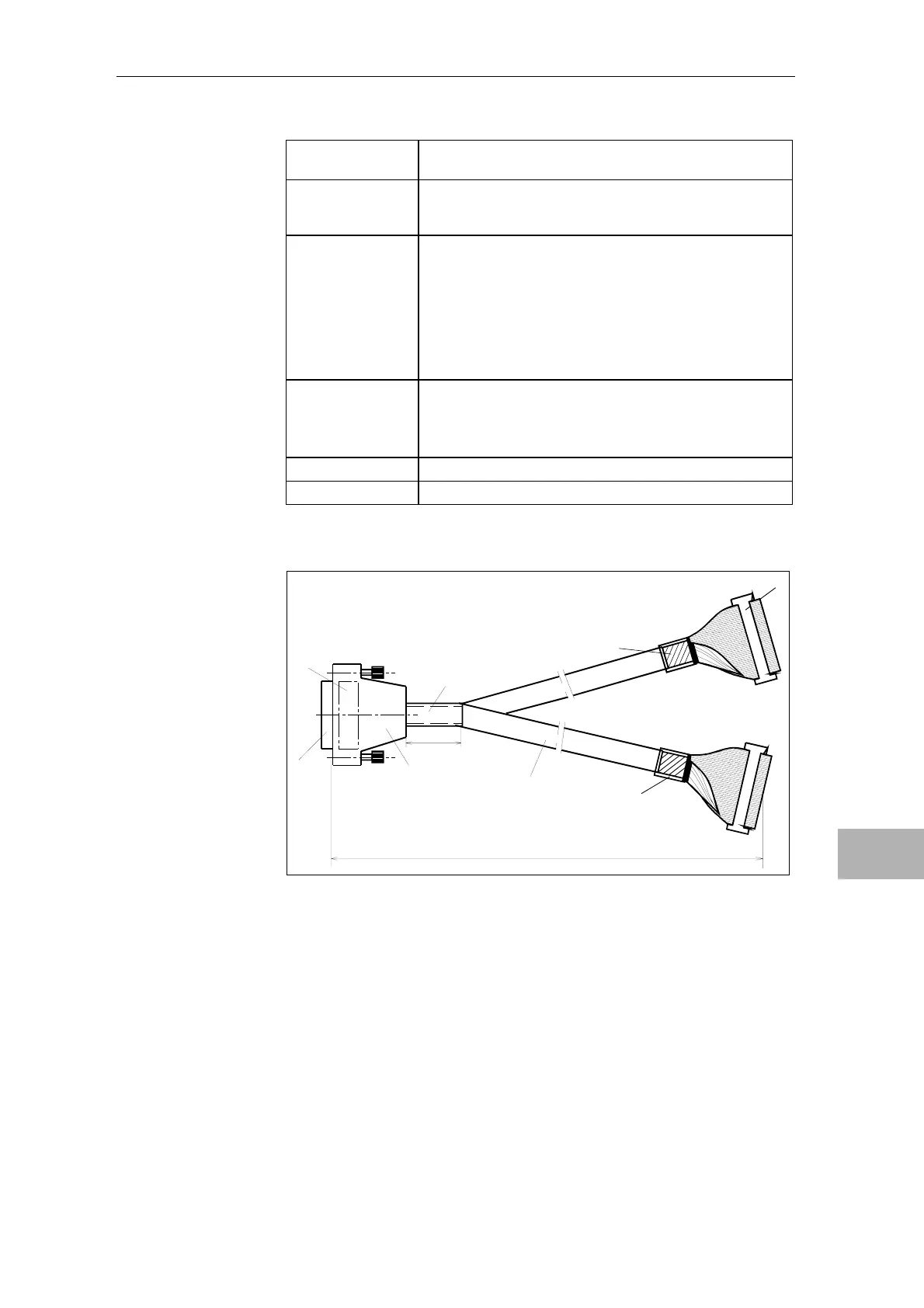

Fig. 9-2 Ribbon cable SC49
SC49
