Plug-in cables
9-10 Hardware - SIMADYN D
Edition 06.2002
Round cable
SC54
50 pin / 5 x 10 pin
Application Connects the 50-pin SUB-D socket connector of an expansion
module with the 10-pin plug connectors of 5 interface modules.
Features
• screened round cable
• 50-pin SUB-D plug connector
• 5, 10-pin socket connectors with printed partial connector
designations A to E with the assignment
A: Pins 1 to 10
B: Pins 11 to 20
C: Pins 21 to 30
D: Pins 31 to 40
E: Pins 41 to 50
of the 50-pin plug connector
Cable ends Expansion module: SUB-D plug connector according to DIN
41652
Interface module: Plug connector according to DIN 41651 with
strain relief.
Length 2 m
Order No. 6DD1684-0FE0

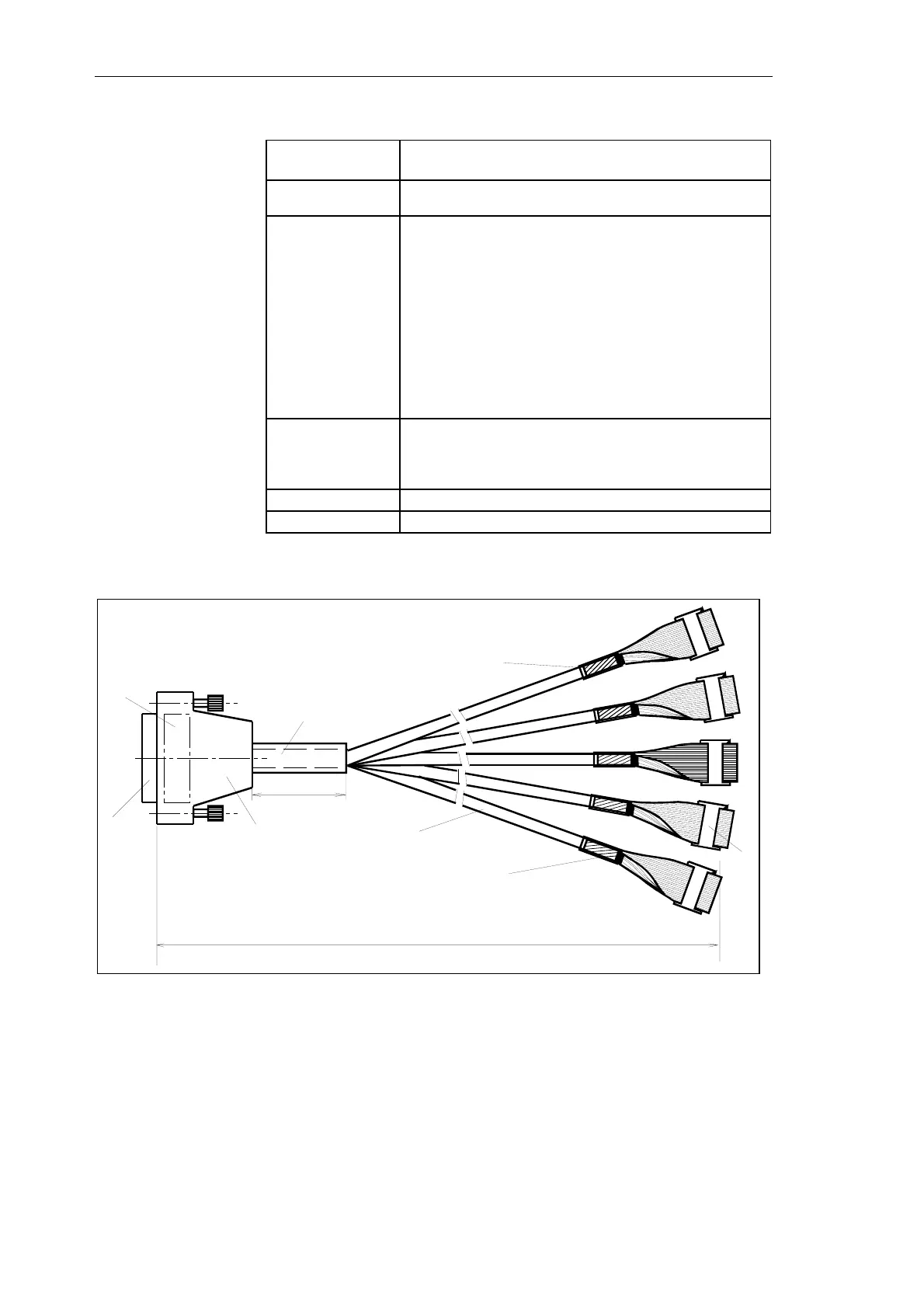

Table 9-11 Ribbon cable SC54
ca. 50
Shrinking tubing
1
2
1)
2000 +/- 15
3
4
A
B
C
D
E
E
D
C
B
A
Shrinking tubing
Shrinking tubing
Fig. 9-5 Ribbon cable SC54
SC54
