Plug-in cables
9-12 Hardware - SIMADYN D
Edition 06.2002
Ribbon cable
SC55
40 pin / 2 x 20 pin
Application
Connects the 40-pin plug connector of an input/output
module with the 20-pin plug connectors of two interface
modules.
Features
• unscreened ribbon cable
• 1, 40-pin socket connector
• 2, 20-pin socket connectors with partial connector
designations A and B with the assignment
A: Pins 1 to 20
B: Pins 21 to 40
of the 40-pin socket connector
Cable ends
Connectors according to DIN 41651 with tension relief at
both ends.
Length 2 m
Order No. 6DD1684-0FF0

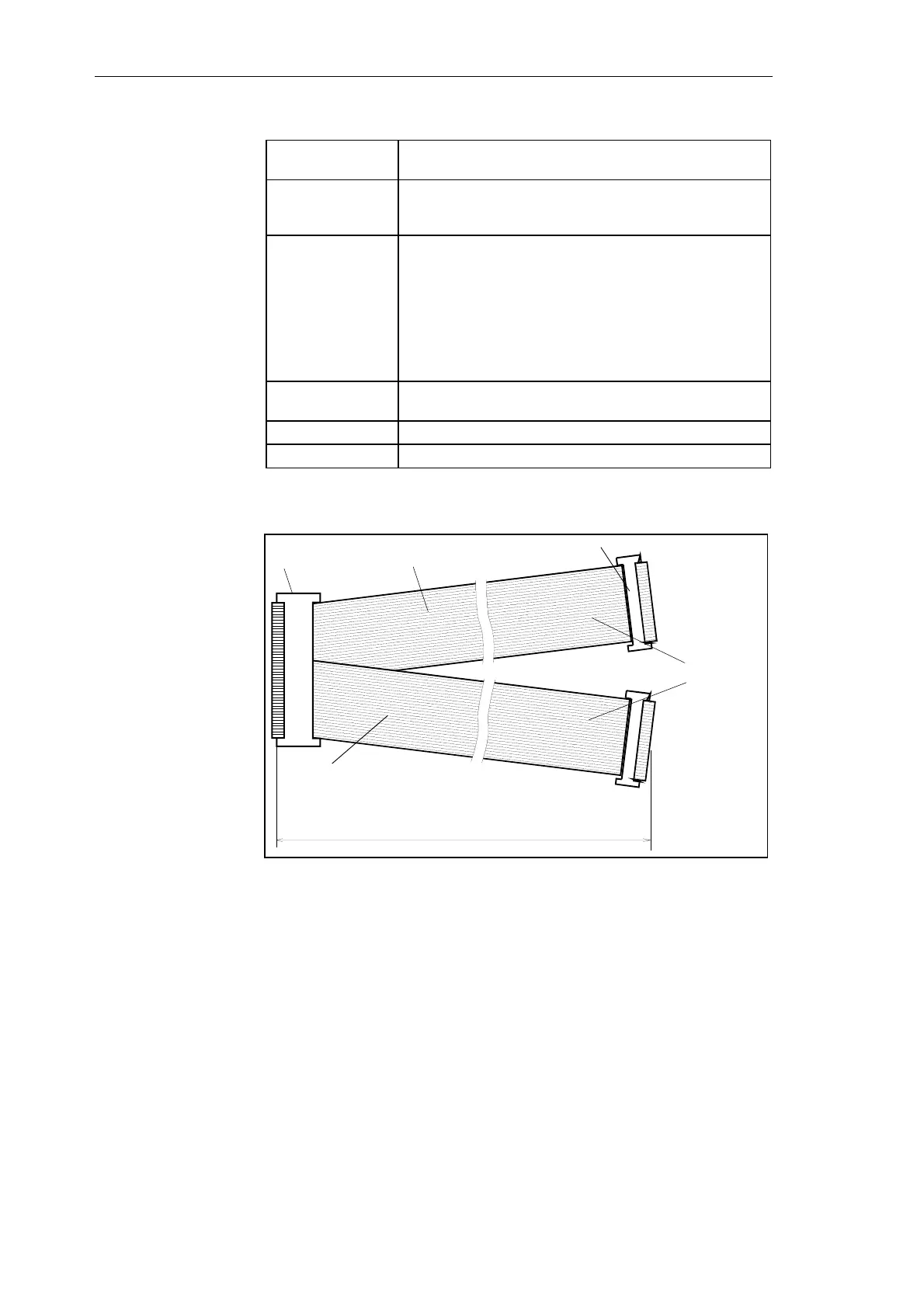

Table 9-13 Ribbon cable SC55
A
B
1
2)
1)
2
3
stamped on acc. to DIN 30640 A6 -sw
2000 +/- 15
Fig. 9-6 Ribbon cable SC55
SC55
