Options
6.1 Shielded terminal plates
Equipment Manuel for Booksize Power Modules
Manual, (GH2), Edition 06.2005, 6SL3097-2AC00-0BP2
6-13

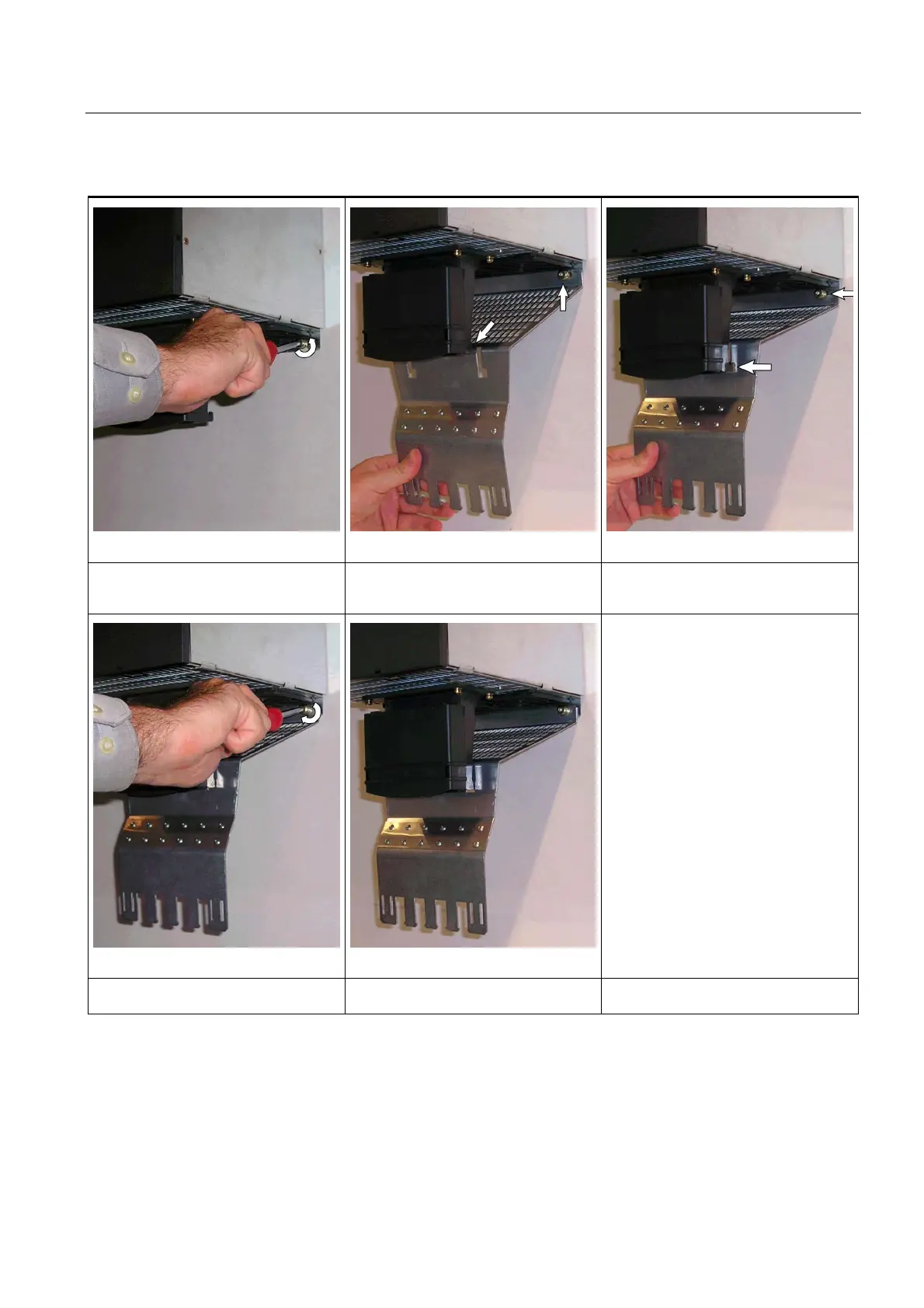

Table 6-2 Installing the shielded terminal plate on a 200 mm module (e.g. with internal air cooling)
Loosen the lower mounting screws
using a screwdriver.
Hook the shielded terminal plate into
the screws and on the line/motor
connection.
Secure the shielded terminal plate by
shifting it to the left.
Secure the shielded terminal plate with
screwdriver 6 Nm.
The shielded terminal plate is installed.
