Servo control
4.6 Current setpoint filter
Drive functions
Function Manual, 11/2017, 6SL3097-4AB00-0BP5
105
In addition to the amplitude response, the phase response is also shown in the following. A
phase shift results in a control system delay and should be kept to a minimum.

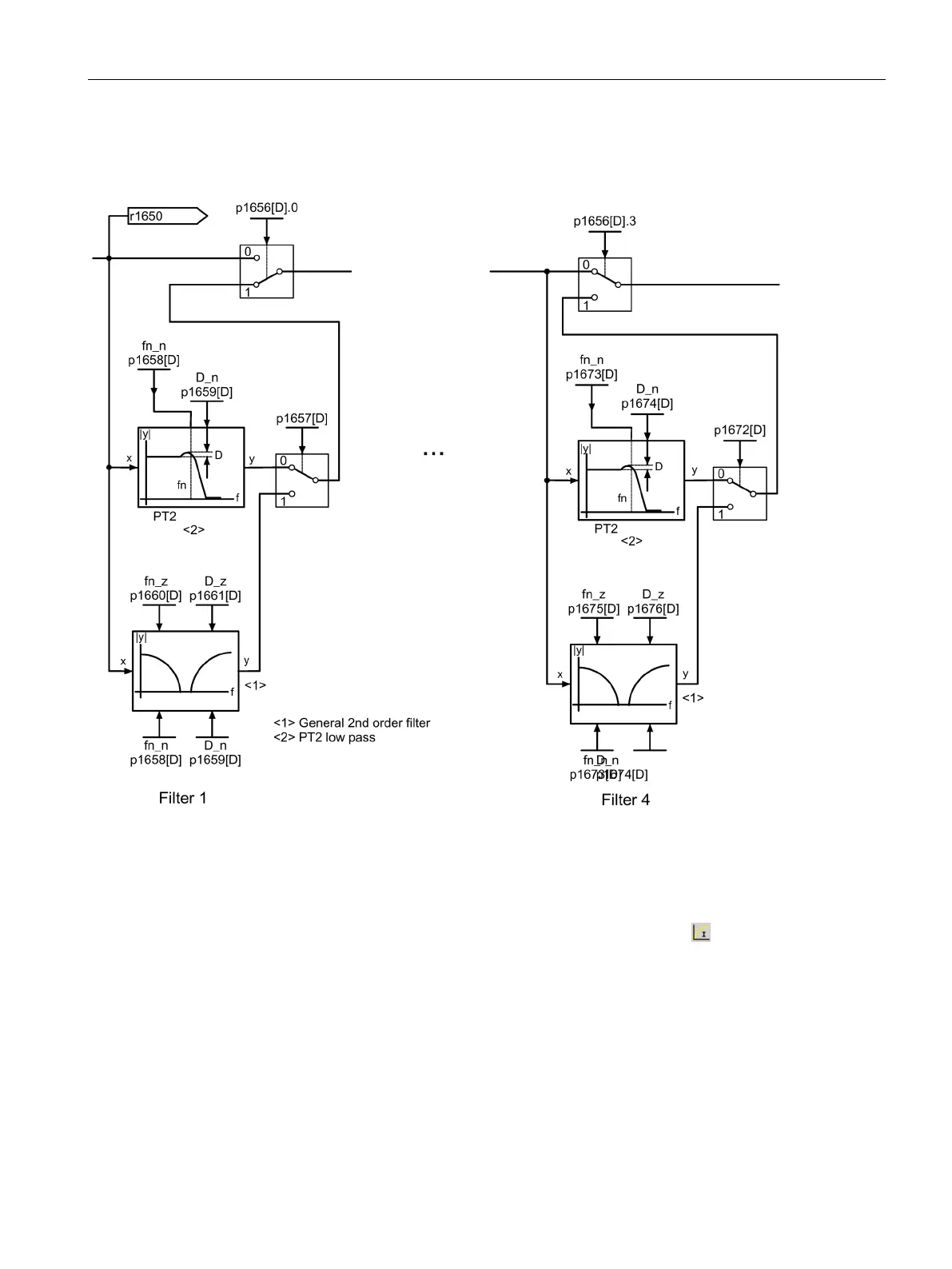

Figure 4-9 Current setpoint filter
Parameterization with STARTER
The "Current setpoint filter" parameter screen is selected with the icon in the toolbar of
the STARTER commissioning tool.
