Siemens SIROTEC Function Manual

Function modules
8.8 Basic positioner
Drive functions
Function Manual, 11/2017, 6SL3097-4AB00-0BP5
531
Overview of important parameters (see SINAMICS S120/S150 List Manual)
•
p0488
Probe 1, input terminal
•
p0489
Probe 2, input terminal
•
p0493
Zero mark selection, input terminal
•
p0495
Equivalent zero mark, input terminal
•
p0580
Probe, input term
inal
•
p0680[0...7]
Central probe, input terminal
•
p2517[0...2]
LR direct probe 1
•
p2518[0...2]
LR direct probe 2
8.8.6
Safely referencing under EPOS
Basic positioning with safe referencing
Some safety functions (e.g. SLP, SP) require safe referencing. If EPOS is active at a drive,
when referencing using EPOS, then the absolute position is also automatically transferred to
the Safety Integrated functions.
The Safety Integrated functions only evaluate the absolute position if a safety function is
parameterized, which requires an absolute value, e.g. SLP.
The following are examples for a load-side position calculation, depending on various
encoder mounting versions and axis types.

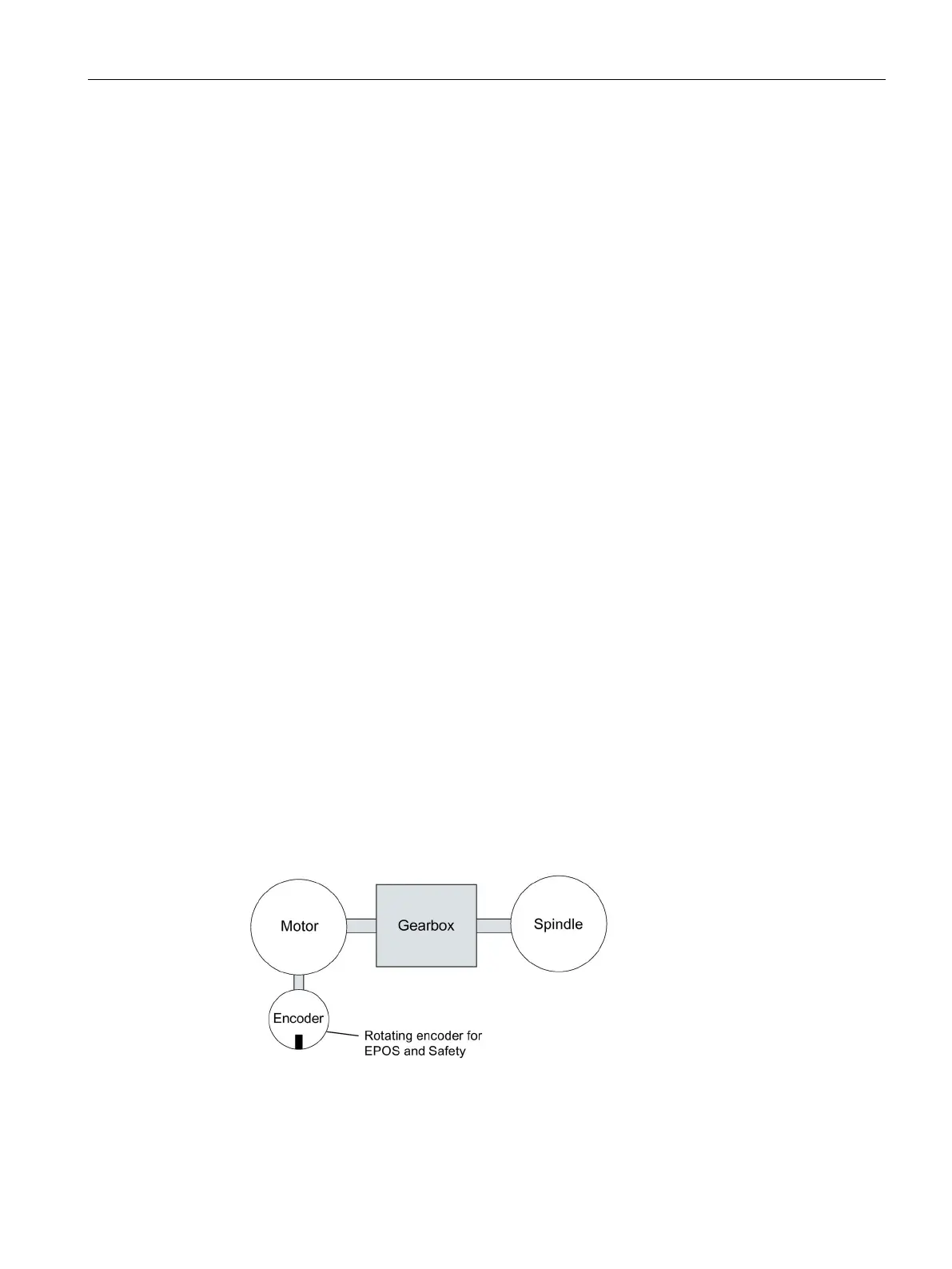

Example 1:
Safety Integrated Extended functions monitor the rotating load. EPOS and Safety Integrated
Extended functions use the same rotary encoder at the motor. The rotating load is coupled to
the motor via a gear. The speed/position values of the spindle are calculated.
● p2506 = 360000 => a position of 360000LU (r2521) corresponds to 360° (r9708)
● p2506 = 10000 => a position of 10000LU (r2521) corresponds to 360° (r9708)
Figure 8-20 Example1: EPOS and safe referencing_rotating
