Extended setpoint channel
3.1 Fundamentals
Drive functions
62 Function Manual, 11/2017, 6SL3097-4AB00-0BP5
In the extended setpoint channel, setpoints from the setpoint source are conditioned for
motor control.
The setpoint for the motor control can also come from the technology controller (see Chapter
"Technology controller (Page 467)").

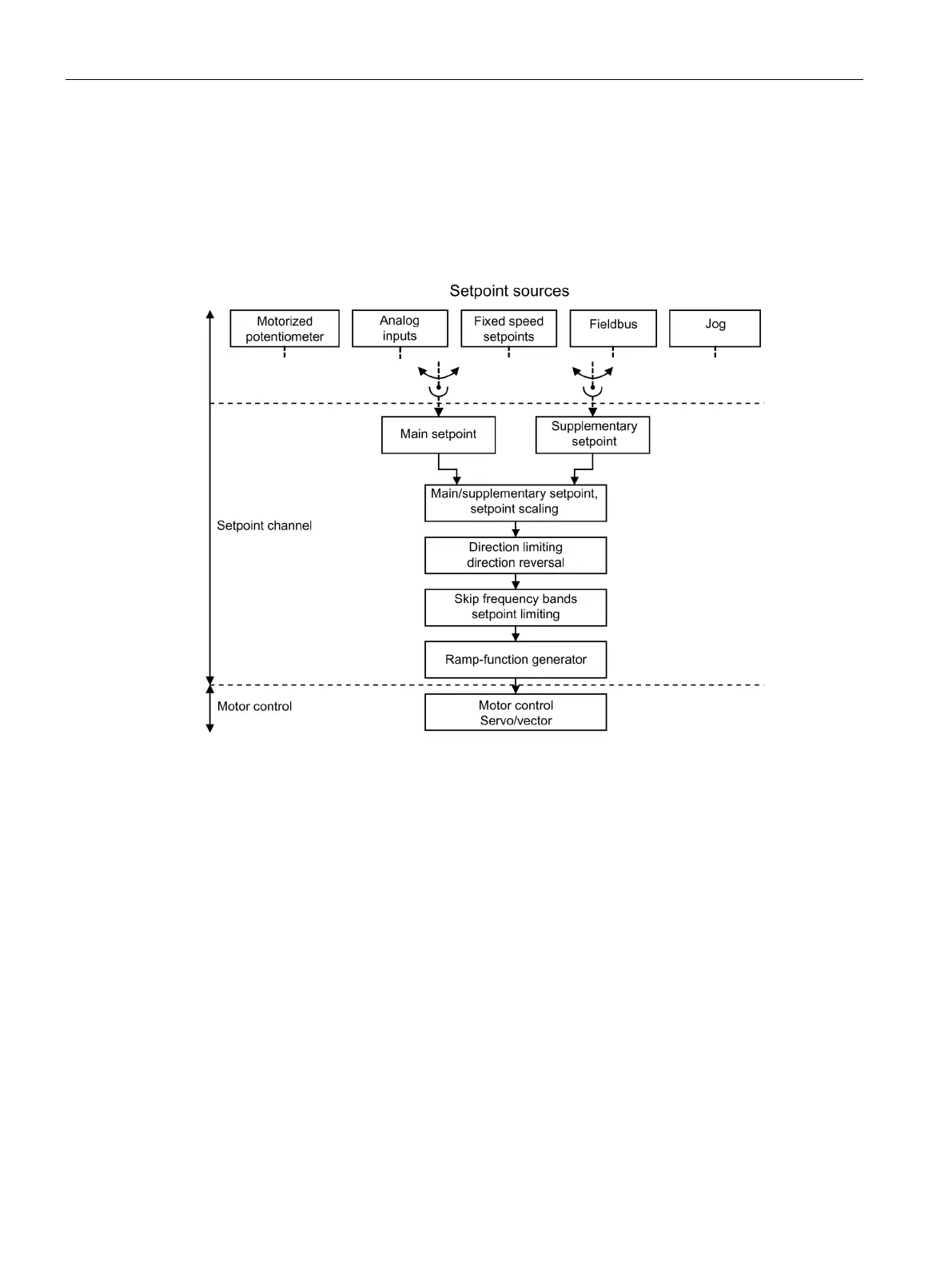

Figure 3-1 Extended setpoint channel
Properties of the extended setpoint channel
● Main/supplementary setpoint, setpoint scaling
● Direction limitation and direction reversal
● Suppression bandwidths and setpoint limitation
● Ramp-function generator
