4.19 Variable signaling function
Drive functions
Function Manual, 11/2017, 6SL3097-4AB00-0BP5
181
When the output signal of the variable signaling function is set, bit 5 in message word
MELDW is set during cyclic communication. The message word MELDW is a component of
the telegrams 102, 103, 105, 106, 110, 111, 116, 118, 126.

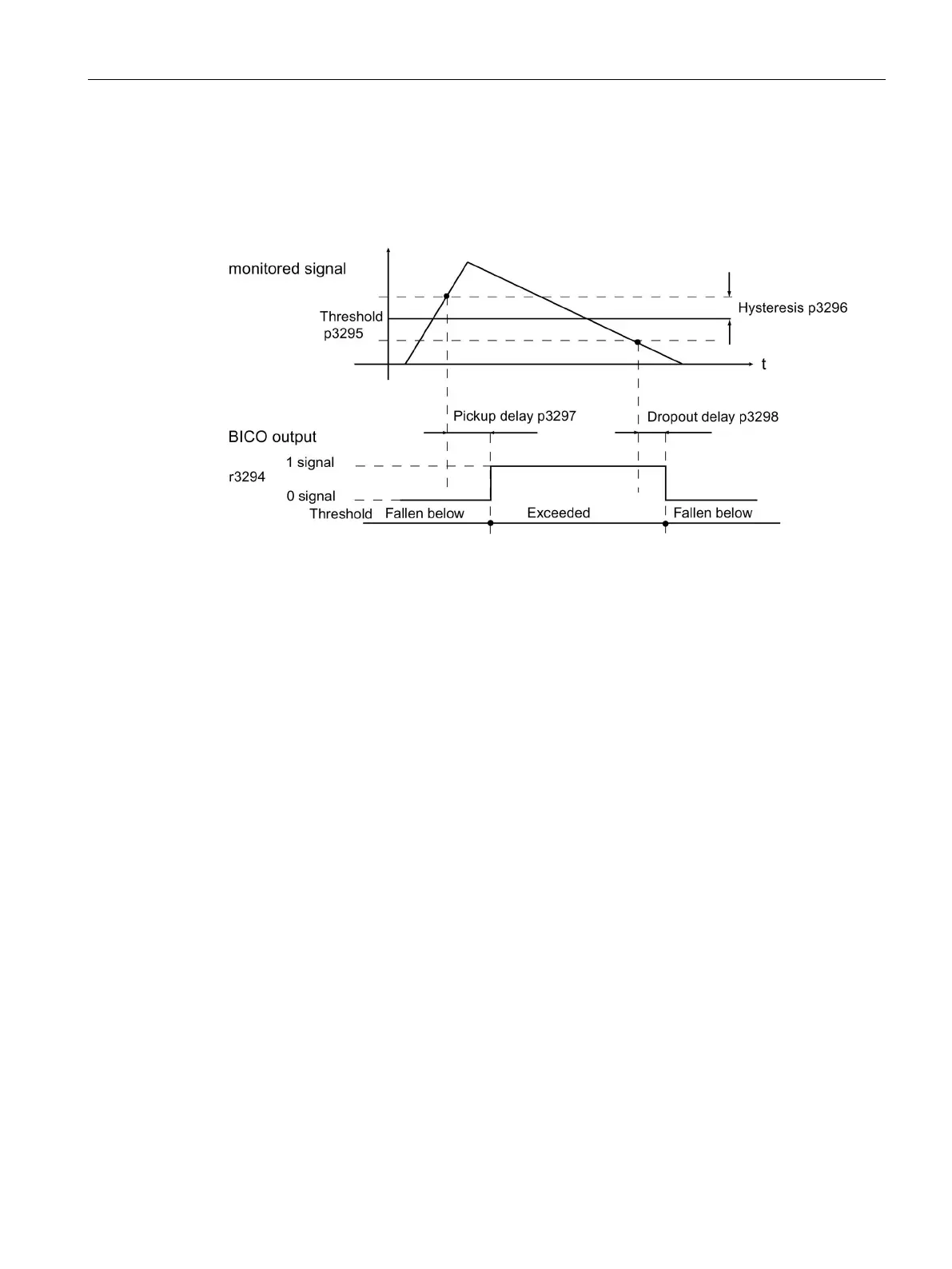

Figure 4-23 Variable signaling function
Function diagrams (see SINAMICS S120/S150 List Manual)
•
5301
Servo control
- variable signaling function
Overview of important parameters (see SINAMICS S120/S150 List Manual)
•
p3290
Variable signaling function, start
•
p3291
CI: Variable signaling function signal source
•
r3294
BO: Variable signaling function, output signal
•
p3295
Variable signaling function, threshold value
•
p3296
Variable signaling function, hysteresis
•
p3297
Variable signaling function, pickup delay
•
p3298
Variable signaling function, dropout delay
•
p3299
V
ariable signaling function, sampling time
