Servo control
4.20 Central probe evaluation
Drive functions
Function Manual, 11/2017, 6SL3097-4AB00-0BP5
189
MT_STW = 100H: a search is only made for rising edges for probe 1

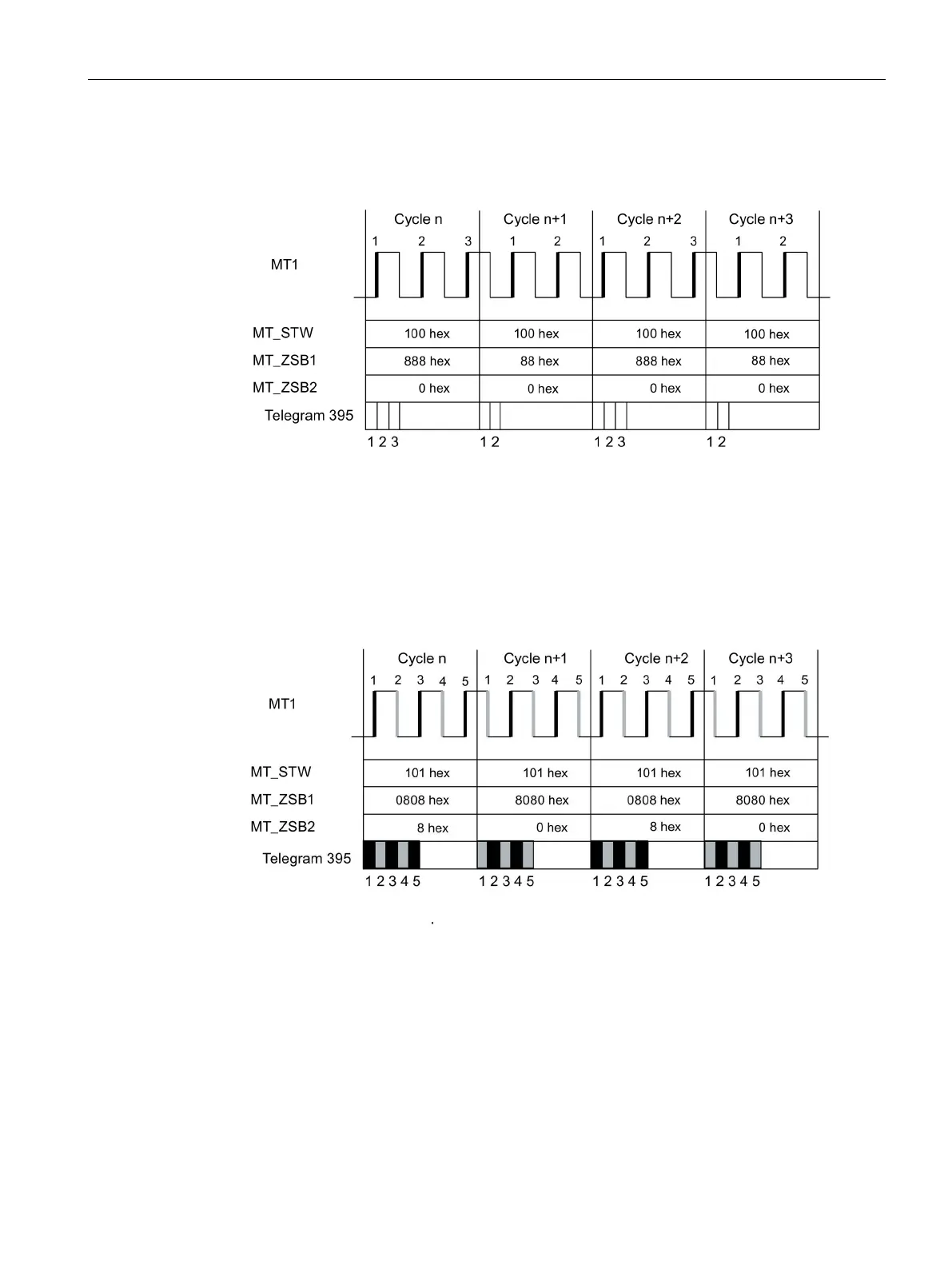

Figure 4-24 A search is made for rising edges for probe 1
In the DP cycle, all time stamps for rising edges are transferred corresponding to their
sequence in time for probe 1.
MT_STW = 101H: a search is made for rising and falling edges for probe 1.
Figure 4-25 A search is made for rising and falling edges for probe 1
In the DP cycle, all time stamps for rising and falling edges are transferred corresponding to
their sequence in time for probe 1.
