Siemens SIROTEC Function Manual

Vector control
5.6 Open actual speed value
Drive functions
Function Manual, 11/2017, 6SL3097-4AB00-0BP5
233
Monitoring of the speed deviation between motor model and external speed
The external actual speed (r1443) is compared with the actual speed of the motor model
(r2169). If the deviation is greater than the tolerance threshold set in p3236, after the switch-
off delay time set in p3238 expires, fault F07937 (Drive: Speed deviation motor model to
external speed) is generated and the drive switched-off corresponding to the set response
(factory setting: OFF2).

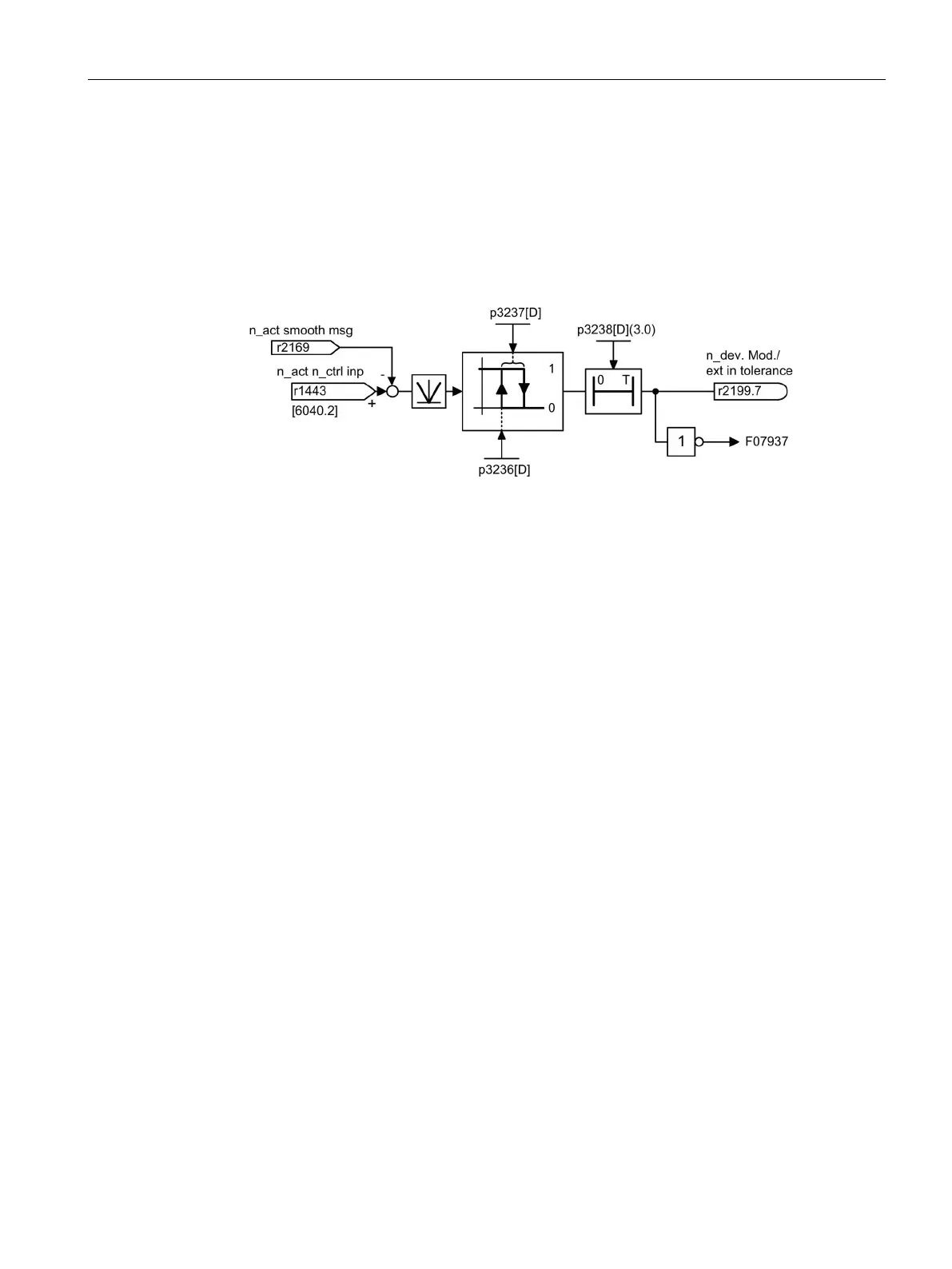

Figure 5-12 Monitoring "Speed deviation model / external in tolerance"
Function diagrams (see SINAMICS S120/S150 List Manual)
•
6040
Vector control
- Speed controller with/without encoder
•
8012
Signals and monitoring function
- Torque messages, motor locked/stalled
Overview of important parameters (see SINAMICS S120/S150 List Manual)
•
r0063[0...2]
CO: Actual speed value
•
p1440[0...n]
CI: Speed controller actual speed value inpu
t
•
r1443
CO: Actual speed value actual speed value on actual value input
•
r2169
CO: Actual speed value smoothed messages
•
r2199.7
CO/BO: Status word, monitoring 3
Speed deviation model / external in tolerance
•
p3236[0...n]
Speed threshold 7
•
p3237[0...n]
H
ysteresis speed 7
•
p3238[0...n]
OFF delay n_act_motor_model = n_act_external
