Basic functions
7.30 Web server
Drive functions
Function Manual, 11/2017, 6SL3097-4AB00-0BP5
447
Loading trace files from the memory card
1. Click the “Diagnostics" entry in the navigation.
2. Click the “Trace files" tab.
A list of loadable trace files is then displayed in the “Trace files" tab:

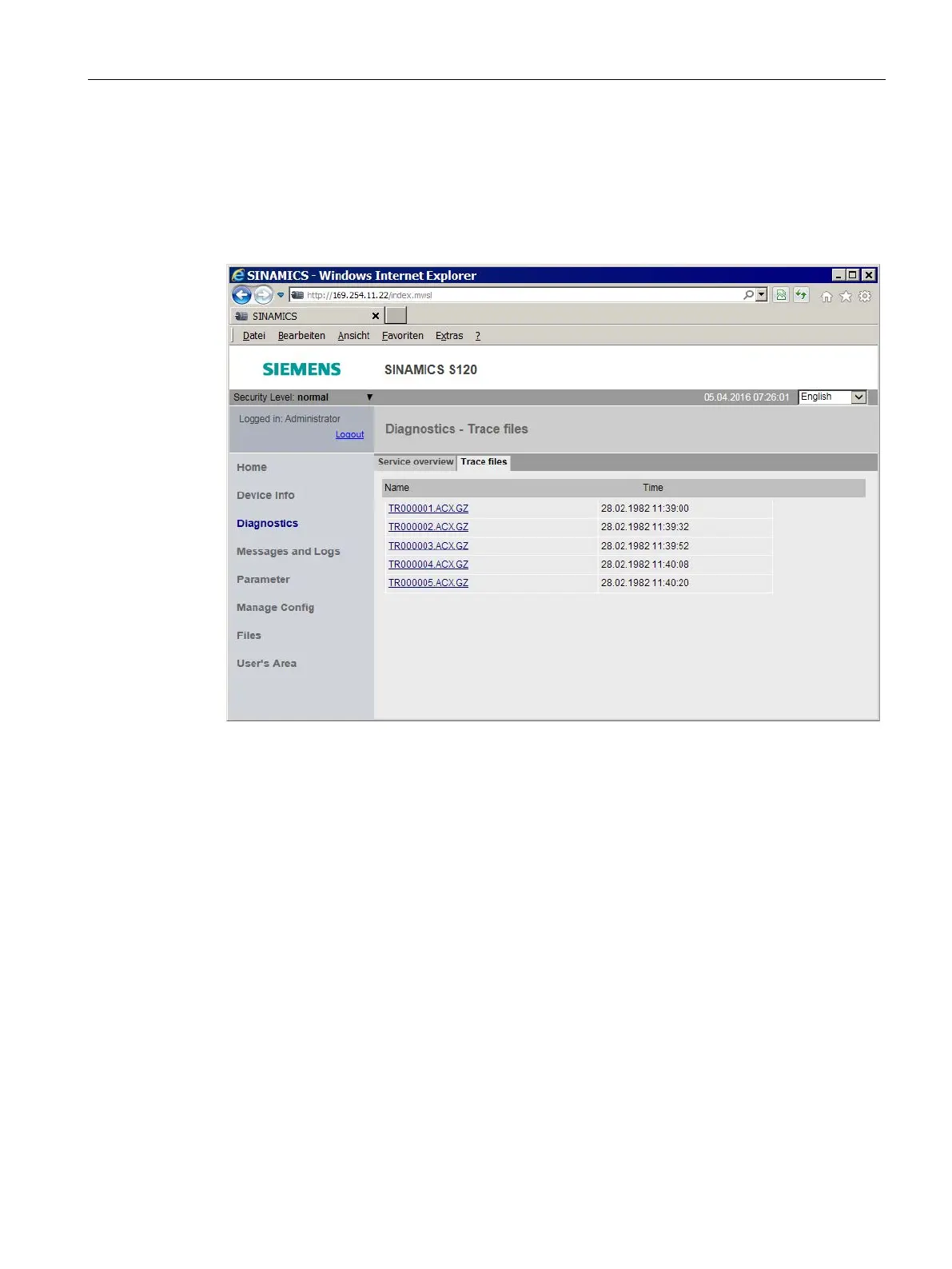

Figure 7-34 Loading trace files
3. In the list, click the name of the trace file that you wish to load.
You are then prompted whether you want to open the trace file or store it in your file
system.
4. Save the file in your file system.
The file stored in the file system can be opened with the commissioning tool (e.g.
STARTER).
