Basic functions
7.30 Web server
Drive functions
452 Function Manual, 11/2017, 6SL3097-4AB00-0BP5
Creating a parameter list in the Web server
1. Click the "Parameter" entry in the navigation.
The "Parameter" area is then displayed on the right in the Internet browser. The “Define"
tab is active when this display area is called.

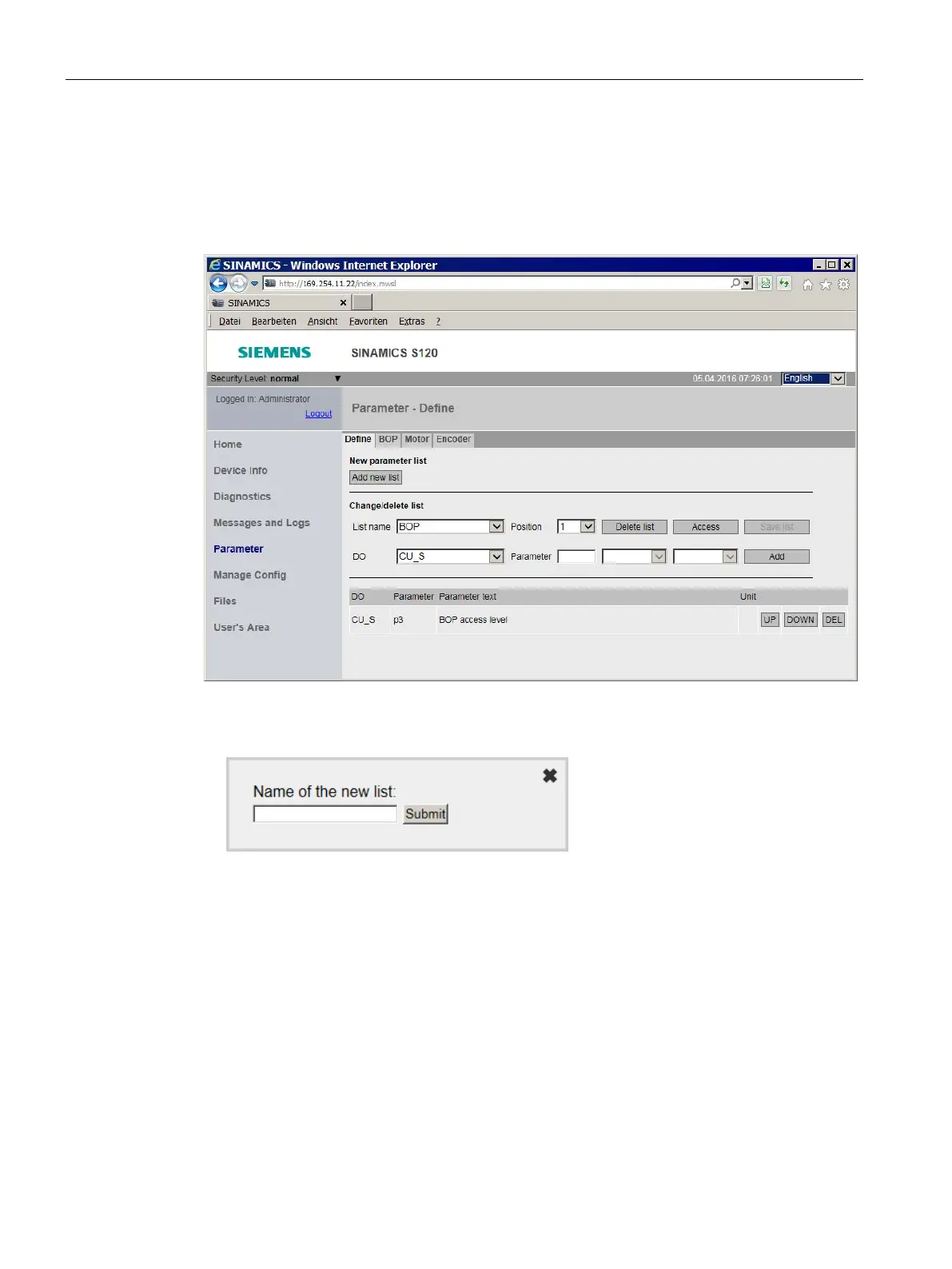

Figure 7-37 Drive parameters - defining the parameter list
2. Click on the “Add new list” button.
Figure 7-38 Drive parameters - new list
3. Specify a name (without special characters) for the new parameter list and click "Confirm"
to confirm the entry.
4. Click the "Access" button and assign the access rights for this parameter list (see Section
Access rights for parameter lists in the web server (Page 439)).
