Siemens SIROTEC Function Manual

Function modules
8.3 Extended Brake Control
Drive functions
Function Manual, 11/2017, 6SL3097-4AB00-0BP5
477

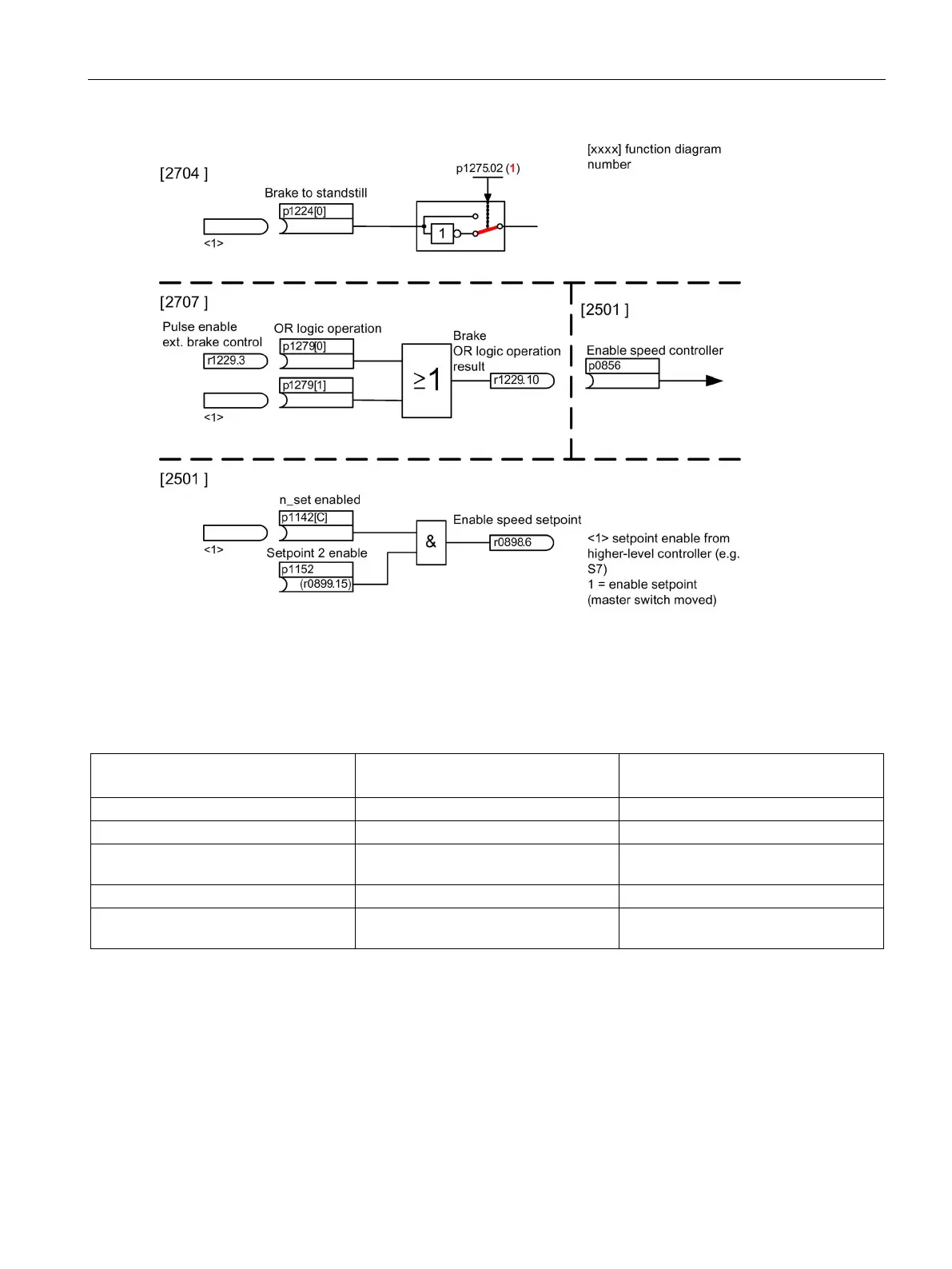

Figure 8-4 Example of operating brake for a crane drive
Control and status messages for extended brake control
Table 8- 2 Controller extended brake control
Signal name
Binector input
Control word sequence control / inter-
connection parameters
Enable speed setpoint
p1142 BI: Enable speed setpoint
STWA.6
Enable setpoint 2
p1152 BI: Setpoint 2 enable
p1152 = r0899.15
Unconditionally open holding brake p0855 BI: Unconditionally open holding
brake
STWA.7
Enable speed controller
p0856 BI: Enable speed controller
STWA.12
Unconditionally close holding brake p0858 BI: Unconditionally close holding
brake
STWA.14
