Function modules
8.14 Advanced Position Control (including Active Vibration Suppression)
Drive functions
612 Function Manual, 11/2017, 6SL3097-4AB00-0BP5
Examples:
Yellow
Speed controller reference frequency response
Magenta
APC closed circuit (load speed/motor speed), measured with APC inactive
Green
APC open circuit (filter 1 output/motor speed), p3761 = 3 ms

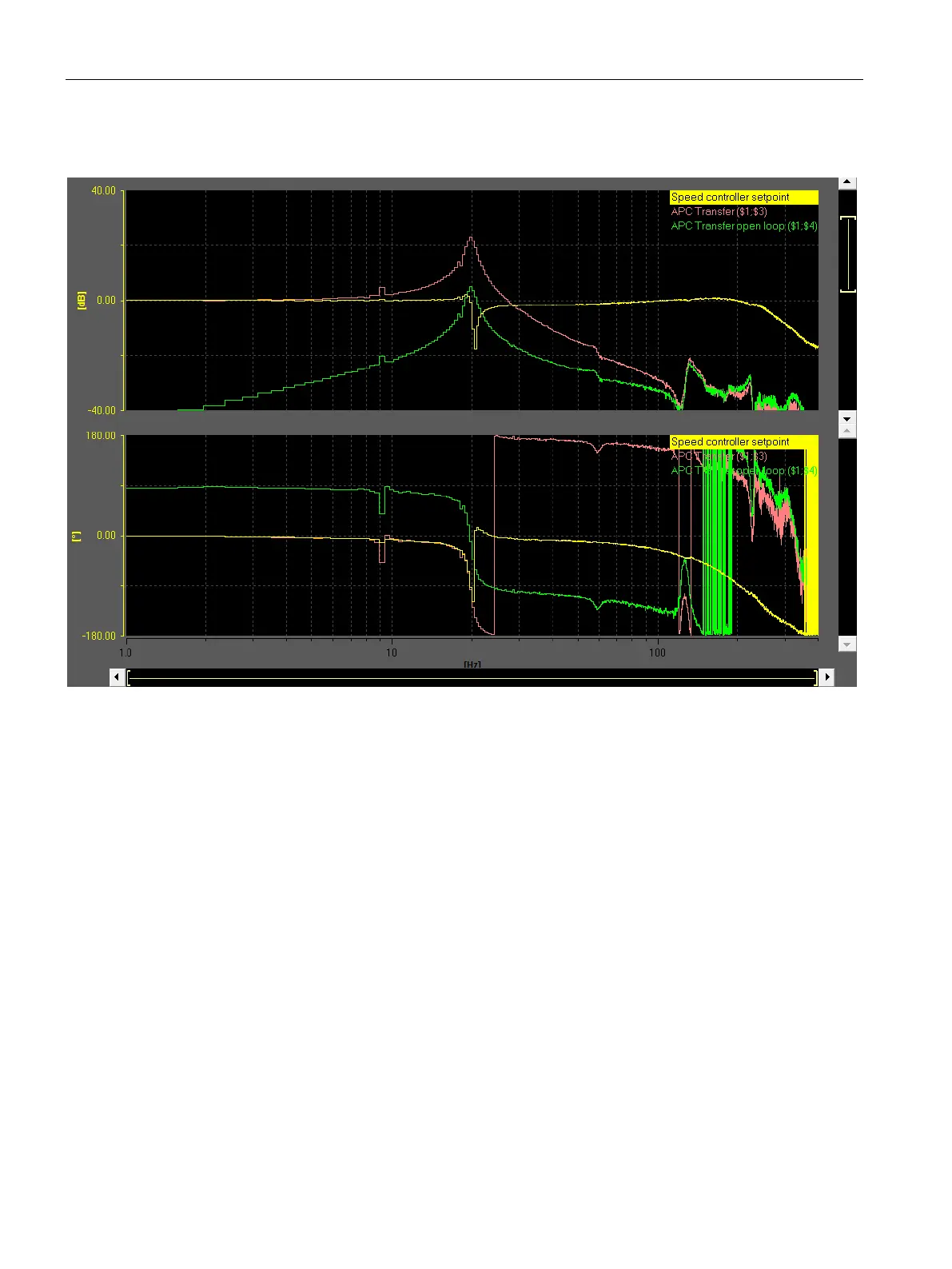

Figure 8-41 APC circuit open
