8.14 Advanced Position Control (including Active Vibration Suppression)
Drive functions
Function Manual, 11/2017, 6SL3097-4AB00-0BP5
623
In STARTER there are
predefined measurement functions to measure the relevant
frequency responses of APC.
However, for the predefined measurement functions, you have the option of recording 2
additional signals. Using mathematical functions, you can display the required frequency
responses as Bode diagram.
1. Select the measurement function and the additional signals.

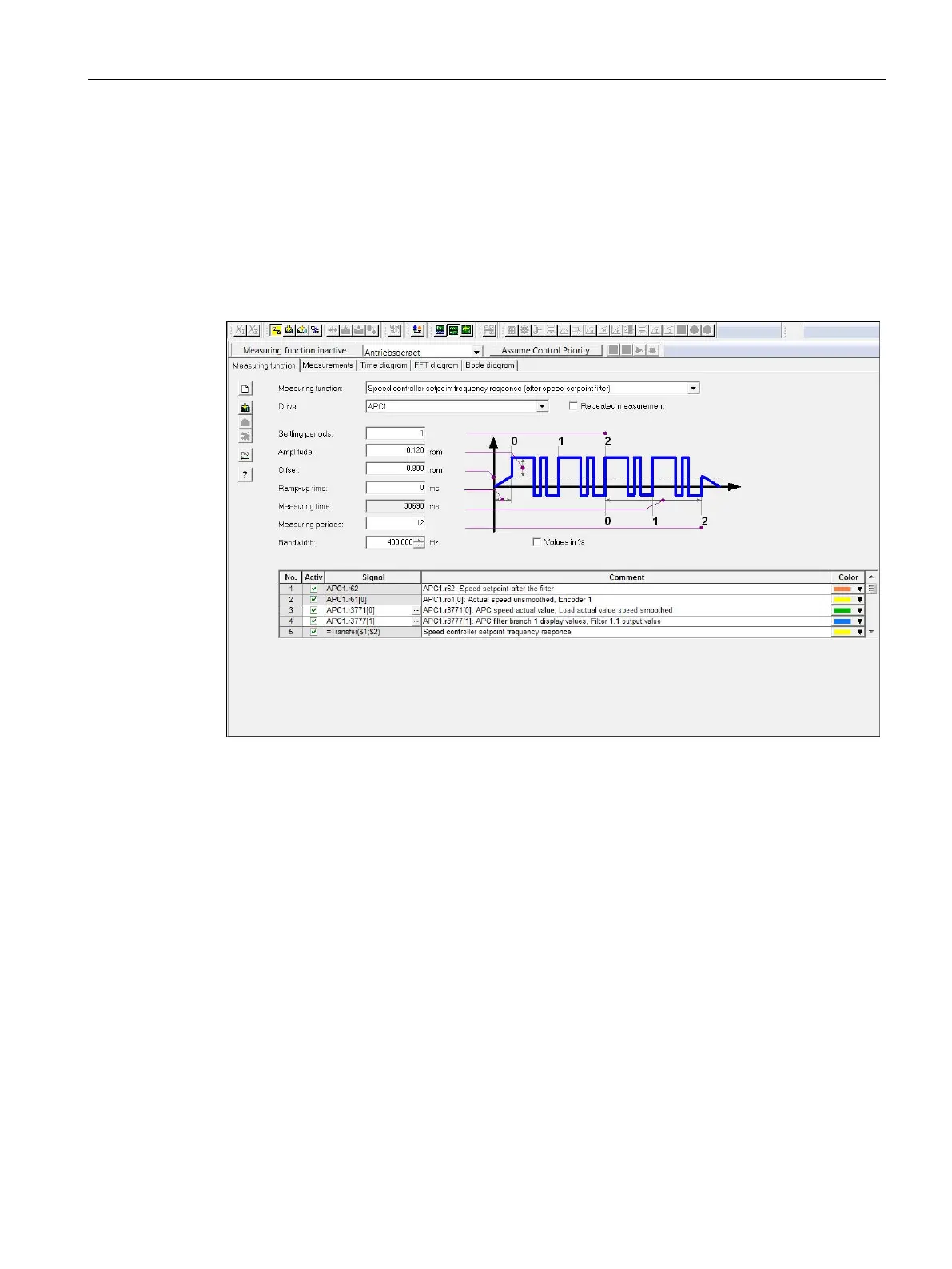

Figure 8-47 Measurement functions and signals
