Siemens SIROTEC Function Manual

Communication
11.1 Communication according to PROFIdrive
Drive functions
744 Function Manual, 11/2017, 6SL3097-4AB00-0BP5
Example: Find reference mark
Assumptions for the example:
● Distance-coded reference mark
● Two reference marks (function 1 / function 2)
● Position control with encoder 1

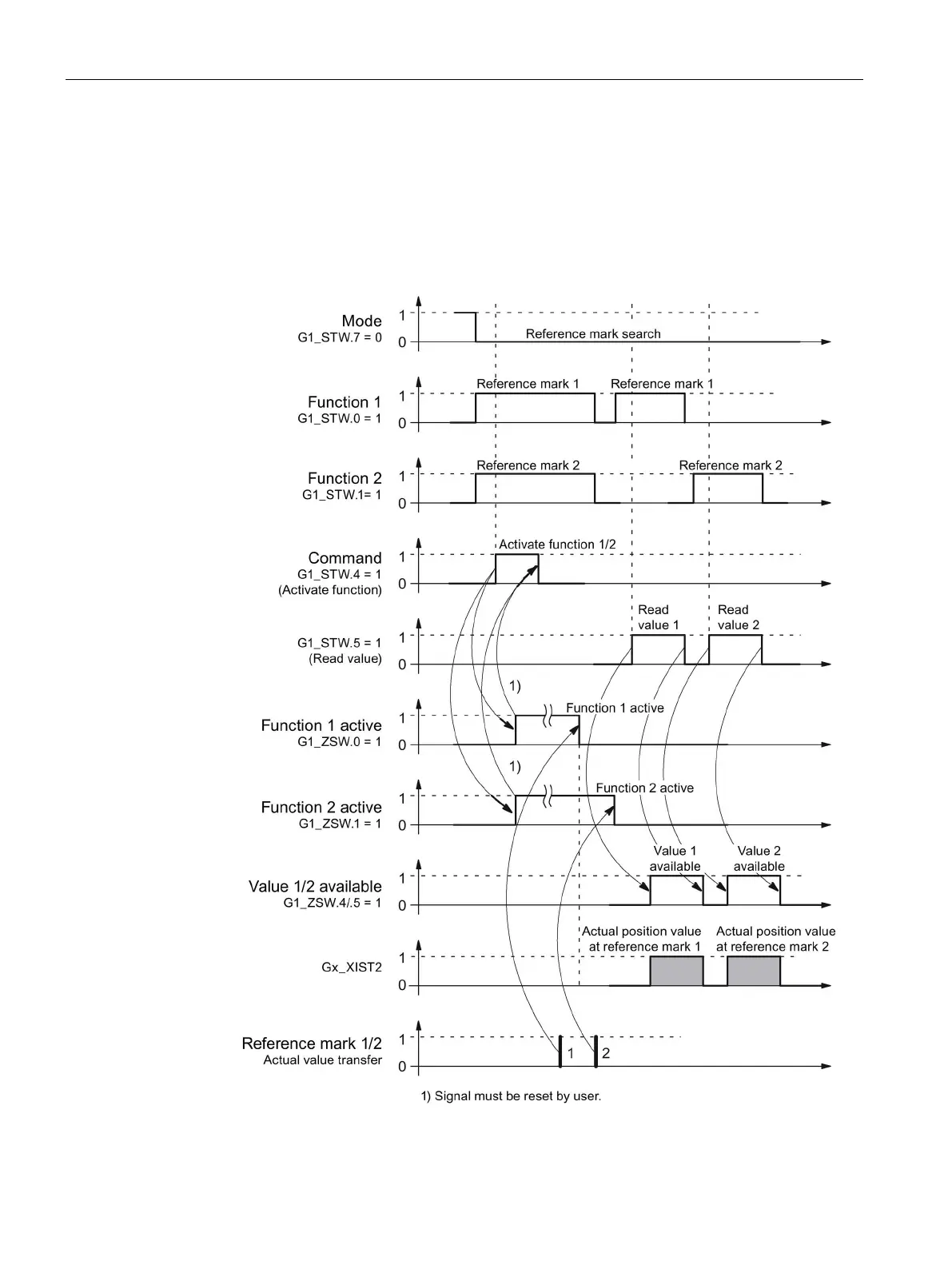

Figure 11-4 Sequence chart for "Find reference mark"
