Communication
11.1 Communication according to PROFIdrive
Drive functions
748 Function Manual, 11/2017, 6SL3097-4AB00-0BP5
Structure of the data cycle
The data cycle comprises the following elements:
Global control telegram (PROFIBUS only)
Cyclic part - setpoints and actual values
Acyclic part - parameters and diagnostic data
Reserve (PROFIBUS only)
Token passing (Token Holding Time, TTH)
For searching for a new node in the drive line-up (GAP)
Waiting time until start of the next cycle

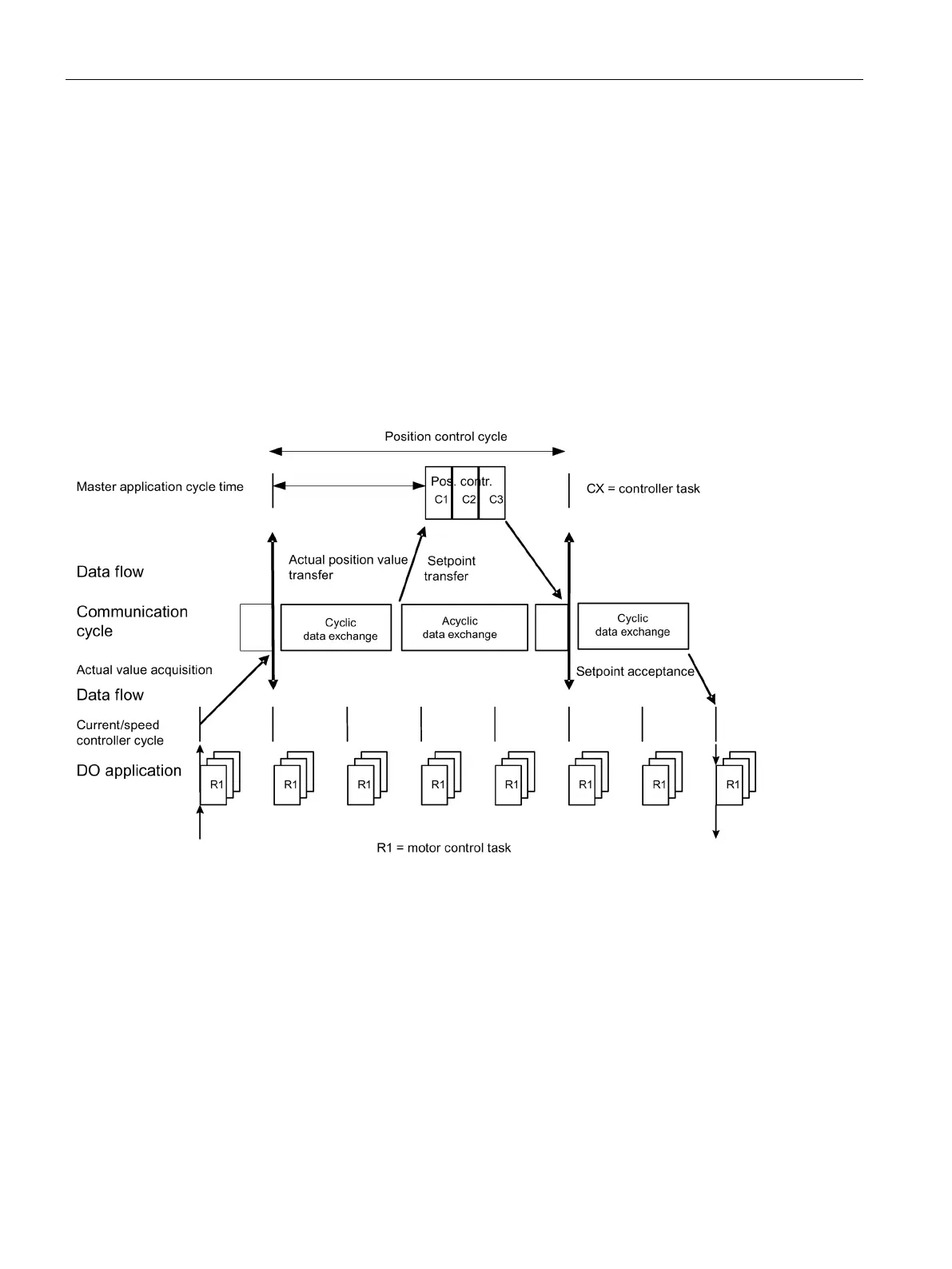

Figure 11-7 Isochronous drive coupling / motion control with PROFIdrive
