4Operation Sirona Dental Systems GmbH
4.6Assistant element Operating Instructions INTEGO

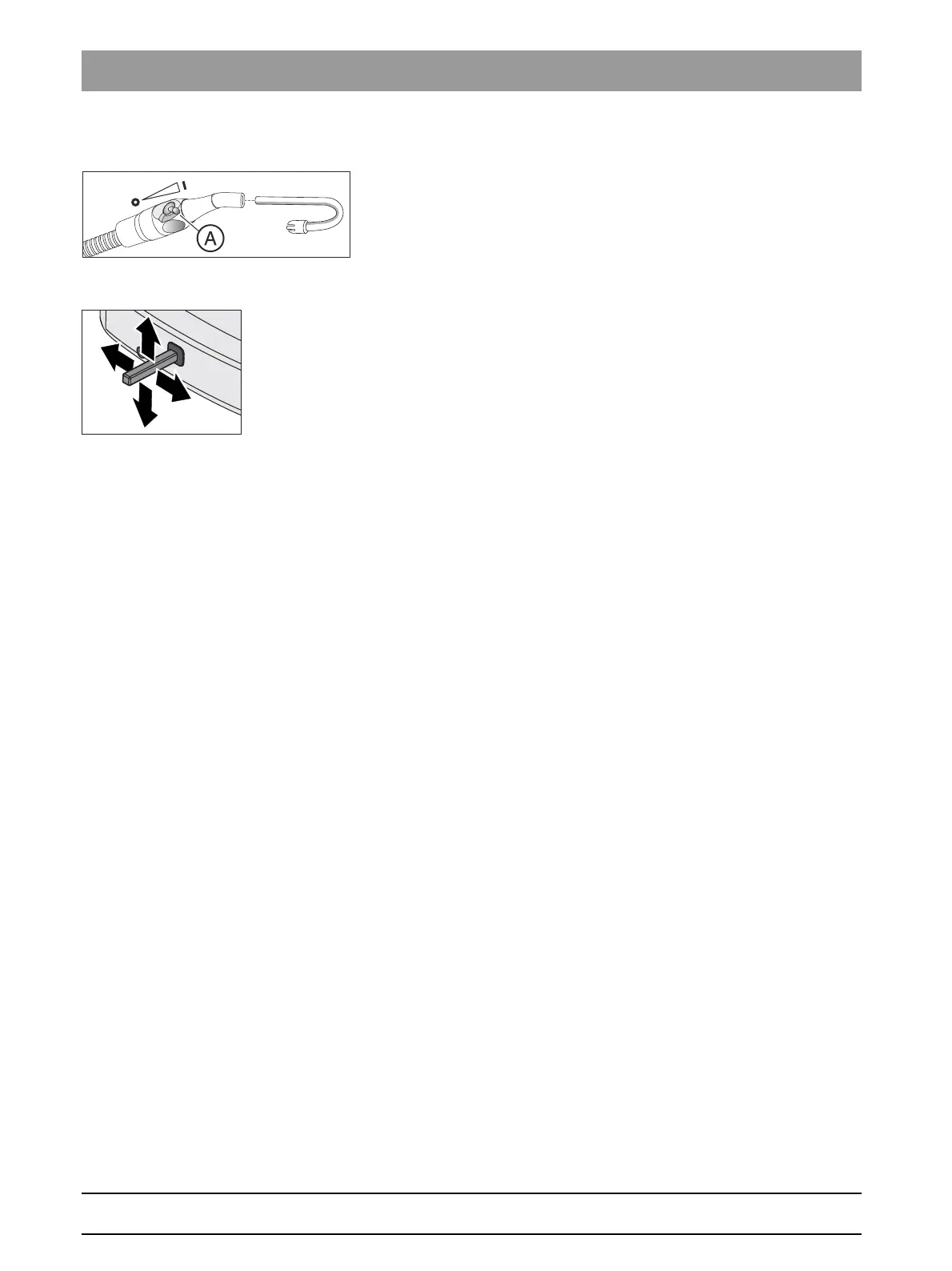

Saliva ejector
A curved tip that can be placed in the corner of the mouth is provided for
saliva ejection.
The suction flow can be stopped and regulated using the A rotating knob.
Interrupting suction flow with the 4-way foot control
If the treatment center is equipped with a position selector valve for the
suction system, it can be set so suction flow can be interrupted or
restarted by moving the 4-way foot control switch at the base of the chair
in any direction, on the EasyPad, see "Coupling suction to the 4-way foot
switch" [ → 194], on the EasyTouch [ → 200]
