3Unit description Sirona Dental Systems GmbH
3.11Water unit Operating Instructions INTEGO
3.11.1 Compact water unit
The Compact water unit is available only without a disinfection system.
However, it can be equipped with a fresh water bottle for stand-alone
water supply. Another option is switching between the fresh water bottle
and the public drinking water supply. Please note the information given in
the chapters "Media quality" [ → 16] and "Standards/approvals" [ → 23].
The function for sanitizing the treatment center and flushing the water
lines (Purge) is optional. A fresh water bottle is needed to sanitize the
treatment center.
Automatic cleaning of the suction system is optional. An intake for a
suction hose is integrated below the cuspidor on the water unit for
automatic cleaning. Water is pumped into a container behind the suction
hose intake and suctioned off from there, see "Suction hose cleaning on
the Compact water unit" [ → 235]

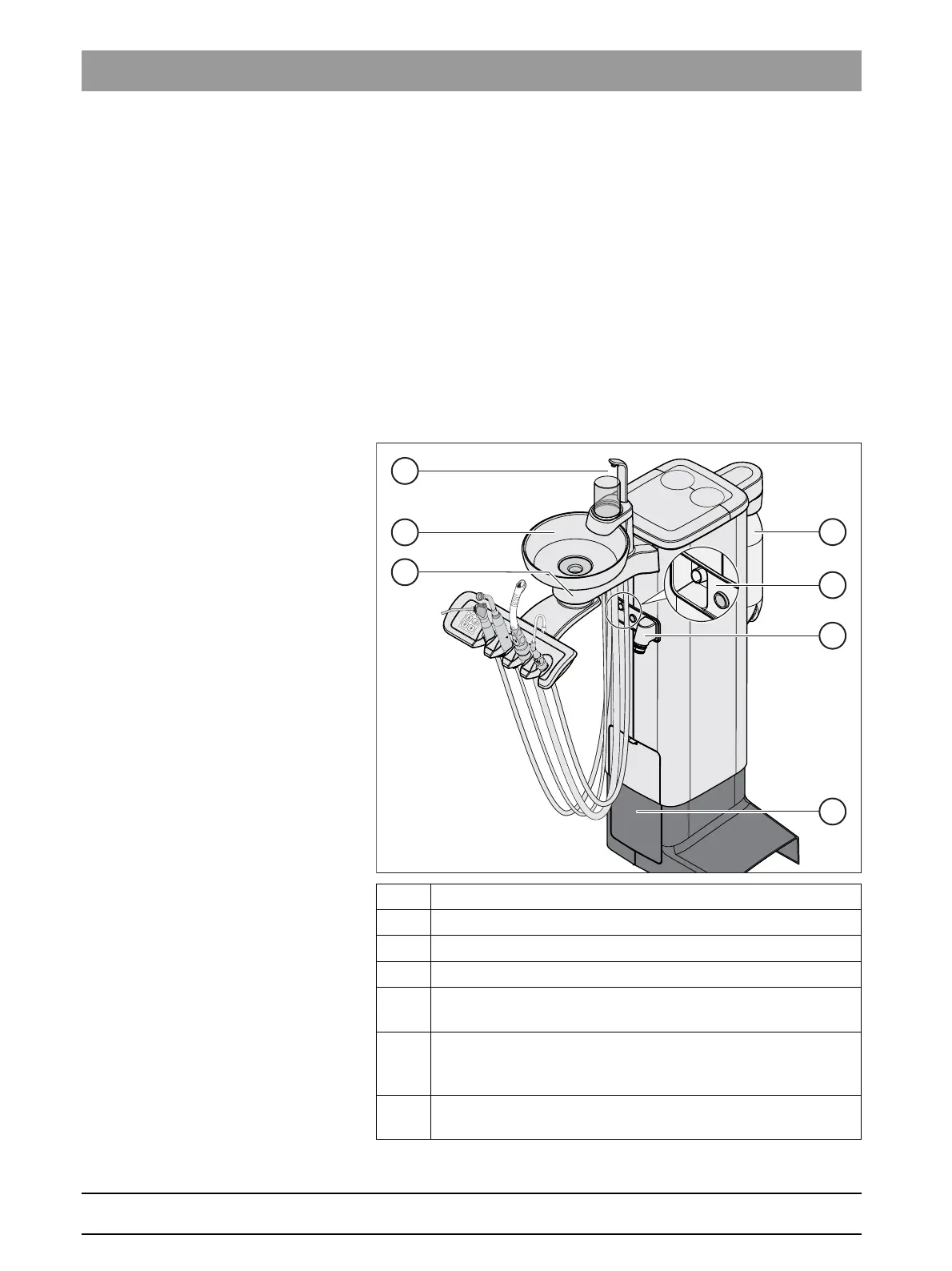

A Manually swiveling cuspidor (removable)
B Tumbler filler
C Fresh water bottle, see "Stand-alone water supply" [ → 154]
D Intake for suction hose cleaning
E Connection for the suction hose to the assistant element (only
with the Comfort assistant element)
F Maintenance flap for accessing flushing valve, amalgam
separator, sediment container, or filter insert for standard wet
suction, or collector for the air jet pump (Air Venturi)
G Central suction sieve under the removable cuspidor bowl (with
the Compact assistant element)
A
F
E
D
B
C
G
