Dentist element
INTEGO and INTEGO pro can be equipped with a TS dentist element
(with hanging hoses) or a CS dentist element (with whip arms).
All functions of the treatment center can be controlled via the control
panel on the dentist element.
3.9.1 TS dentist element hanging hoses
With the TS dentist element, instruments are placed upright in the
instrument holders. The instrument hoses hang freely under the dentist
element.

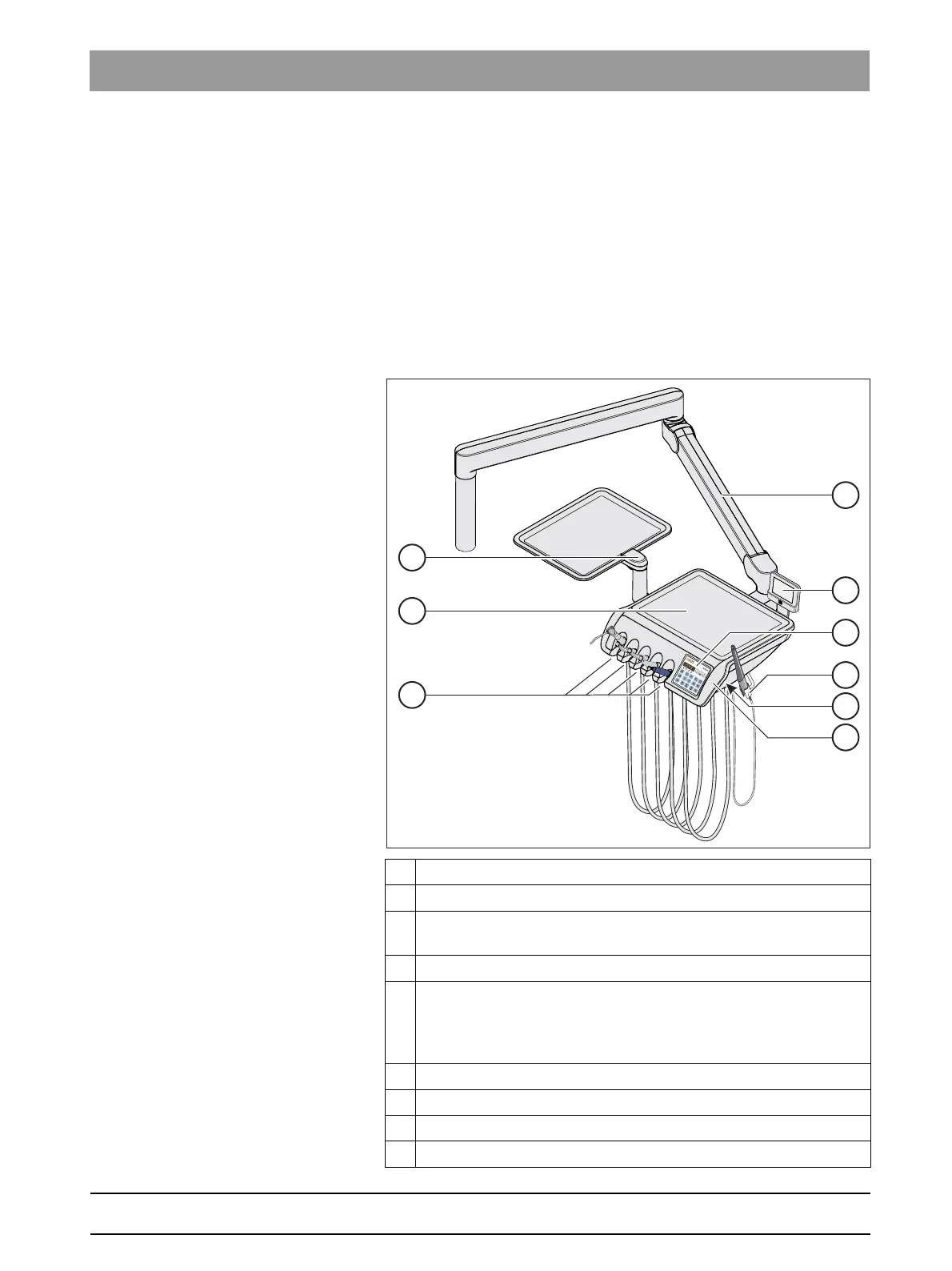

A Instrument holder (max. 5 instruments)
B Holder with non-slip silicone mat for 2 standard trays
C Swiveling tray holder on the TS dentist element for two standard
trays
D Removable handle covers (left/right)
E Button to release the support arm brake for adjusting height
For treatment centers without the Ambidextrous option there is a
push button only on the right-hand side, with the Ambidextrous
option there is a button on both sides.
F Additional holder for intraoral camera
G EasyPad (shown here) or EasyTouch user interface
HX-ray viewer
I Support arm
H
G
E
D
B
A
C
F
I
