Sirona Dental Systems GmbH 4Operation
Operating Instructions INTEGO 4.5Dentist element
båÖäáëÜ
4.5.8 Electric motor
Electric motor, observe the operating Instructions
4.5.8.1
Motor versions

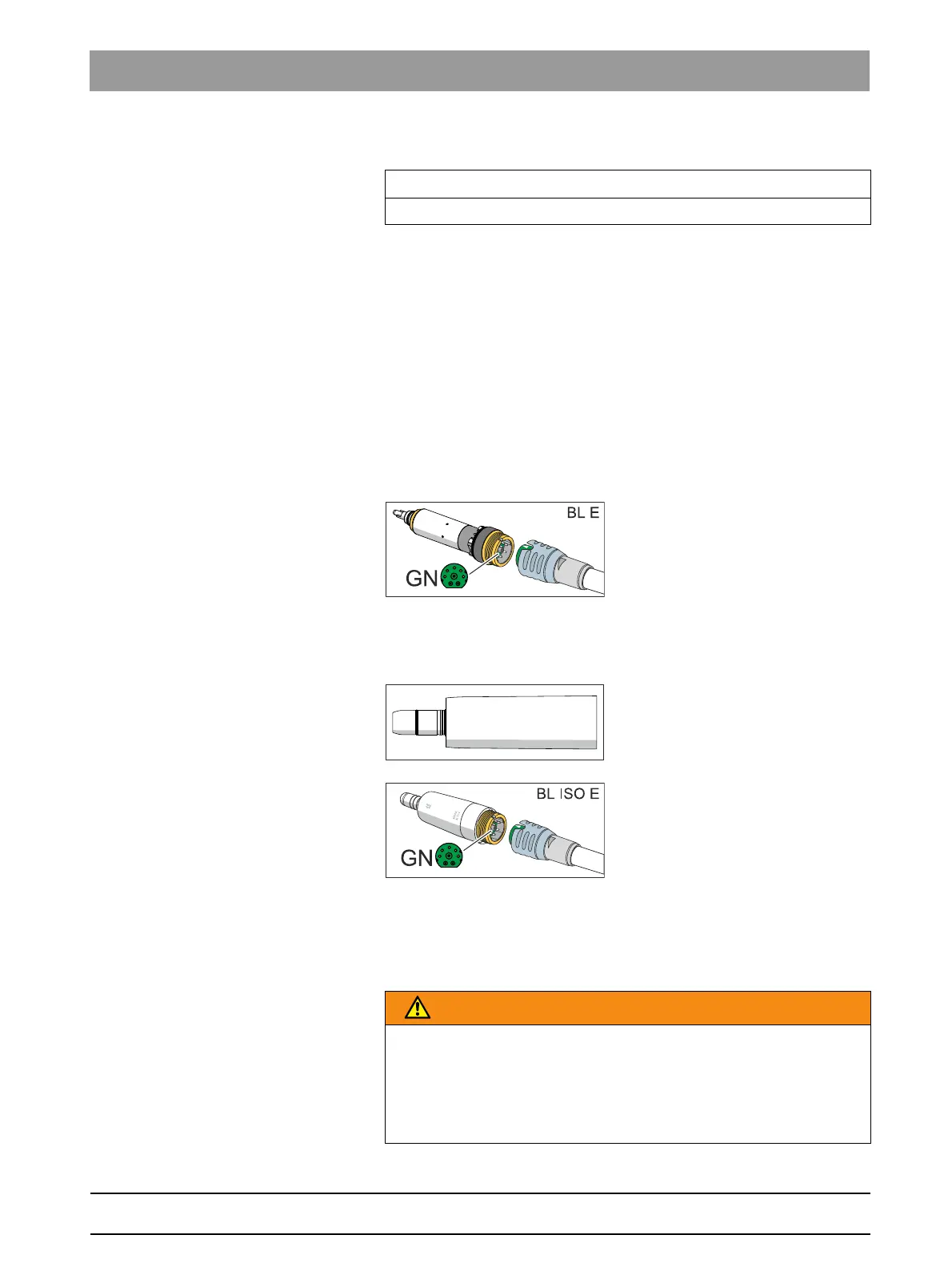

Depending on the handpiece coupling, the brushless motors BL E and
BL ISO E are available. Brushless motors are designed as three-phase
motors (without carbon brushes). They are characterized by their precise
controllability and durability.
The speed range of the motors for INTEGO / INTEGO pro is between
1,200 and 40,000 rpm. If the treatment center features the eControl
option, the motor can be down-regulated to 100 rpm.
The motors can be sterilized.
The green (GN) coded instrument hose must be used for the motors BL E
and BL ISO E.
BL E motor
The BL E motor is designed for direct operation of T1 CLASSIC
handpieces. In order to use e.g. T1 LINE handpieces, the (Apex)
basic adapter must be used.
BL ISO E motor
The BL ISO E motor is equipped with an ISO coupling. T1 LINE
handpieces, for example, can thus be used without an adapter.
For information on performing apex measurement using the instrument,
refer to the section “Preparing to use the ApexLocator” [ → 121].
Electric motor, cardiac pacemaker
IMPORTANT
Also observe the operating instructions for the motor.
WARNING
The magnetic field of the electric motor is strengthened when the motor
is switched on.
This magnetic field could affect any cardiac pacemaker located nearby.
➢ Do not place the electric motor on the patient's chest. Never switch
a motor which is placed on the chest on.
