4.12.2 SiroCam F / AF / AF
+
intraoral camera
4.12.2.1
Safety instructions
The SiroCam F / AF / AF
+
intraoral camera is a sensitive optical
instrument and must therefore always be handled with care.
Intraoral c amera, lens window
Intraoral camera, heating due to LEDs
The following temperatures are reached:
4.12.2.2
Functional description
The camera generates digital image data with the help of a CMOS
sensor.
The cameras SiroCam AF and SiroCam AF
+
feature automatic focus and
can thus be used for both intraoral and extraoral images. In the SiroCam
F, focusing is set for the close-up range.
NOTICE
The lens window is sensitive to scratches.
The lens window can be damaged by hard objects. Deep scratches in
the lens window impair image quality.
➢ Always place the intraoral camera in the designated holder and
clean the lens window with a soft cloth.
IMPORTANT
The intraoral camera is heated during operation due to the LEDs in the
camera head.
Duty time Temperature at 25 °C
room temperature
Temperature at 37 °C
in oral cavity
1 min 31 °C 43 °C
Continuous operation 46 °C 58 °C

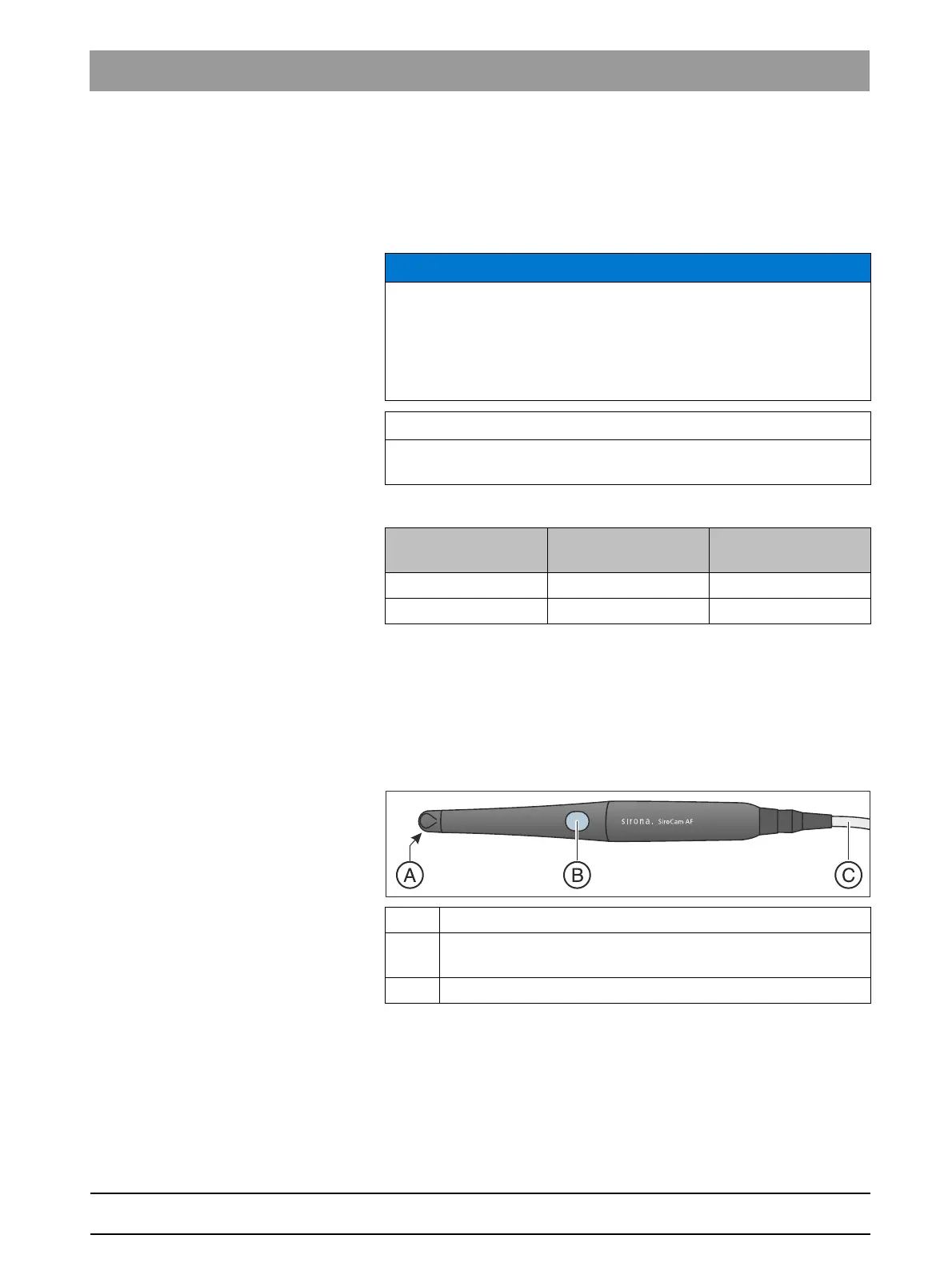

A Lens window (covered)
B Key for automatic focus (auto focus) in the SiroCam AF and
SiroCam AF
+
, no function in the SiroCam F
Connecting cable
