Sirona Intego - Swiveling tray holder

64 57 498 D3543
D3543.201.01.05.02 08.2016
167
Sirona Dental Systems GmbH 4Operation
Operating Instructions INTEGO 4.8Swiveling tray holder
båÖäáëÜ
4.8
Swiveling tray holder

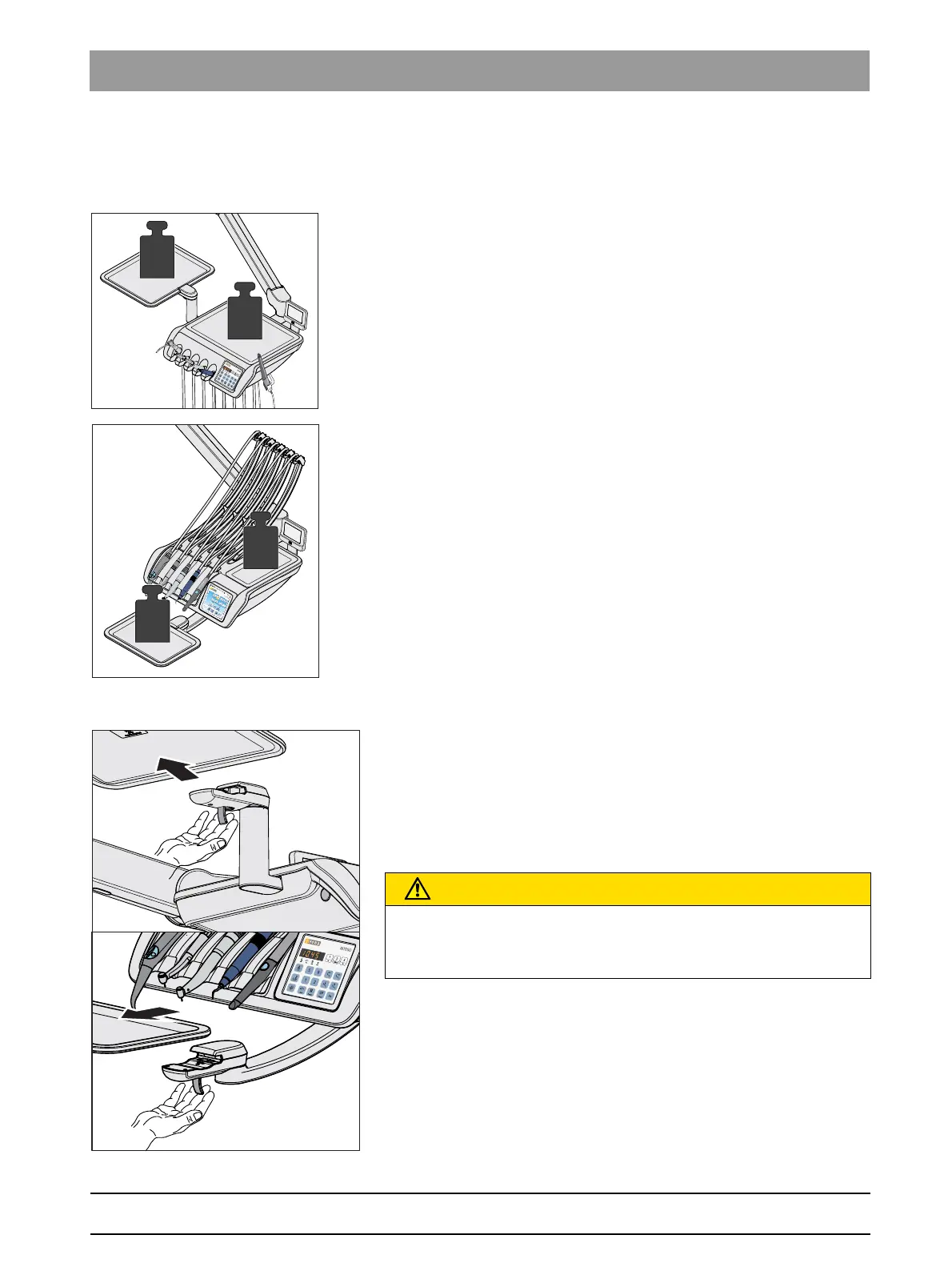

Maximum load capacity
Tray on the TS dentist element with Turn option
The TS dentist element can be equipped with a tray. The holder has room
for two standard trays.
For treatment centers without the Ambidextrous option, the tray is
mounted on the left of the assistant element. With the Ambidextrous
option, the tray holder can be removed from the dentist element and
positioned on both sides by the user.
The maximum load on the TS dentist element with a tray holder is 2 kg
(4.4 lbs). In this case, the maximum load on the dentist element and the
tray is 1 kg (2.2 lbs) each.
The CS dentist element can be equipped with a tray holder mounted
under the dentist element. The holder is available in two sizes for one or
two standard trays
The maximum load on the CS dentist element with a tray holder is 1.5 kg
(3.3 lbs). In this case, the maximum load on the dentist element is 0.5 kg
(1.1 lbs) and on the tray 1 kg (2.2 lbs).
Removing the tray
1. Hold the tray tightly.
2. Open the lock by turning the lever downwards.
3. Remove the tray.
4. Let the lever fall back into its original position.
To insert the tray holder, simply guide it into the mount. The mechanism
locks automatically.
Tray, Tra y Holder
+
max.
1 kg
2.2 lbs
max.
2,0 kg
4.4 lbs
max.
2,0 kg
4.4 lbs
max.
2,0 kg
4.4 lbs
max.
1 kg
2.2 lbs
max.
1,5 kg
3.3 lbs
max.
1,5 kg
3.3 lbs
+
max.
1 kg
2.2 lbs
max.
1,5 kg
3.3 lbs
max.
0,5 kg
1.1 lbs
CAUTION
If the tray is not locked in place, it can disengage from the tray holder.
➢ After installing the tray, make sure it is securely attached to the tray
holder.
