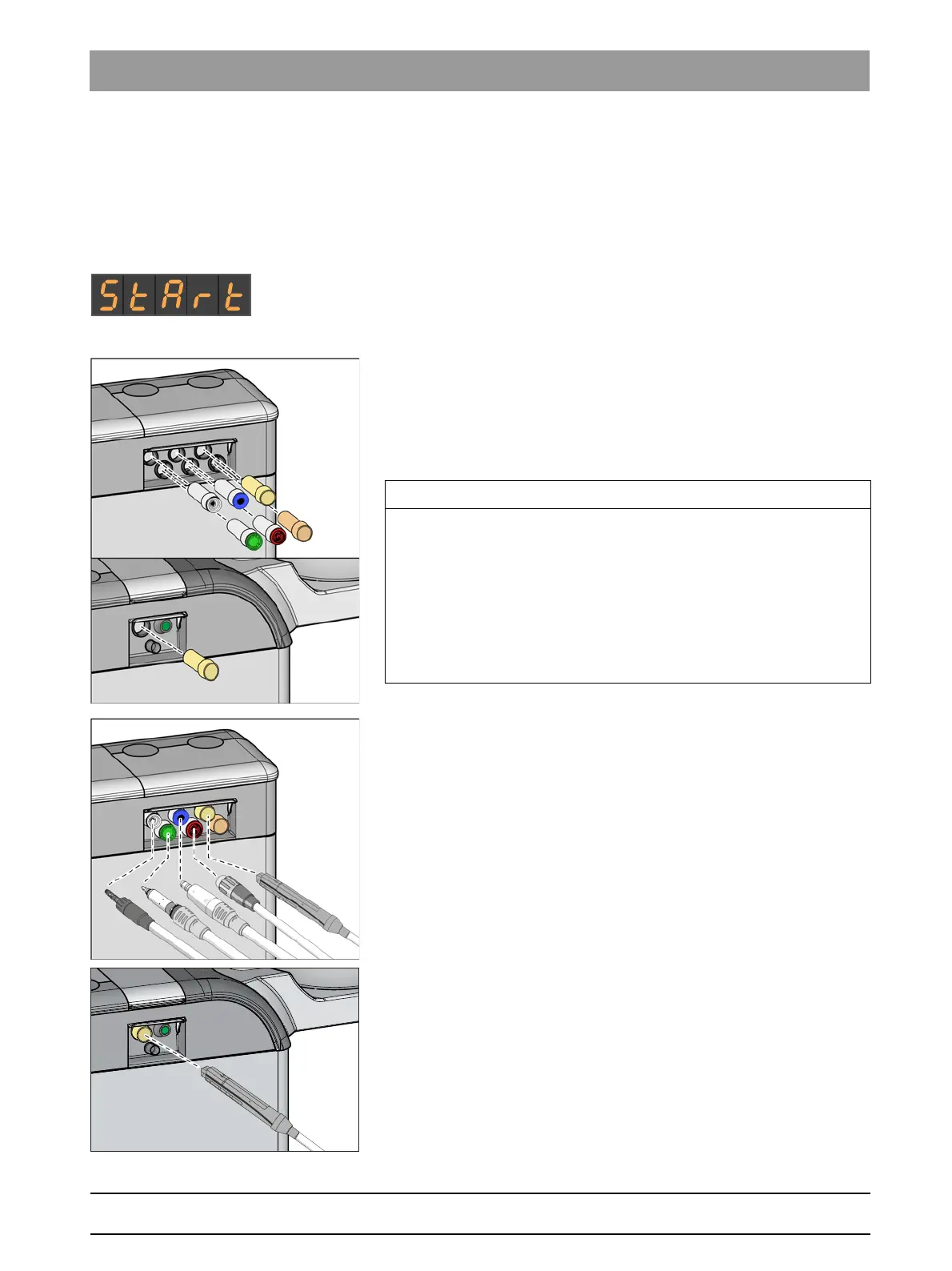

Inserting instruments into the cleaning adapters of the water unit
The Comfort water unit has integrated cleaning adapters for water-
carrying instruments. This allows all instruments to be simultaneously
treated with a high concentration of sanitation solution and then rinsed
with water. For this purpose, sanitizable instruments must be inserted into
the adapters on the water unit.
✔ The "Start" text is shown on the EasyPad display.
1. Remove the SPRAYVIT sleeves from the valve bodies and the
straight and contra-angle handpieces from the water-carrying
instruments.
2. If the adapters are not yet located in the receptacles of the water unit,
insert them into the receptacles until they lock into place. The
SPRAYVIT adapters can be inserted only into the two receptacles on
the right side of the dentist element with the guide rib facing upward.
Similarly, a SPRAYVIT adapter must be inserted into the assistant
element side. The adapters always remain in the water unit.
3. Dentist element side: Insert the couplings of all water-carrying
treatment instruments into the adapter in the Comfort water unit (for
SPRAYVIT E: valve lever in the up position, locking knob in the down
position).
Also for the CS dentist element: Move the swivel arm of the
instruments to be purged into the operating position so that the weight
of the instrument hoses allows them to remain in this position.
4. Assistant element side: Insert the valve bodies of the SPRAYVIT E
into the adapter on the water unit.
IMPORTANT
Arrangement of adapters
The adapters for the instrument couplings are color coded:
Yellow = SPRAYVIT E, water on right button
Orange = SPRAYVIT E, water on left button
White = highspeed handpiece
Green = Motor BL E
Blue = Motor BL ISO E (ISO interface)
Red = SIROSONIC L scaler
