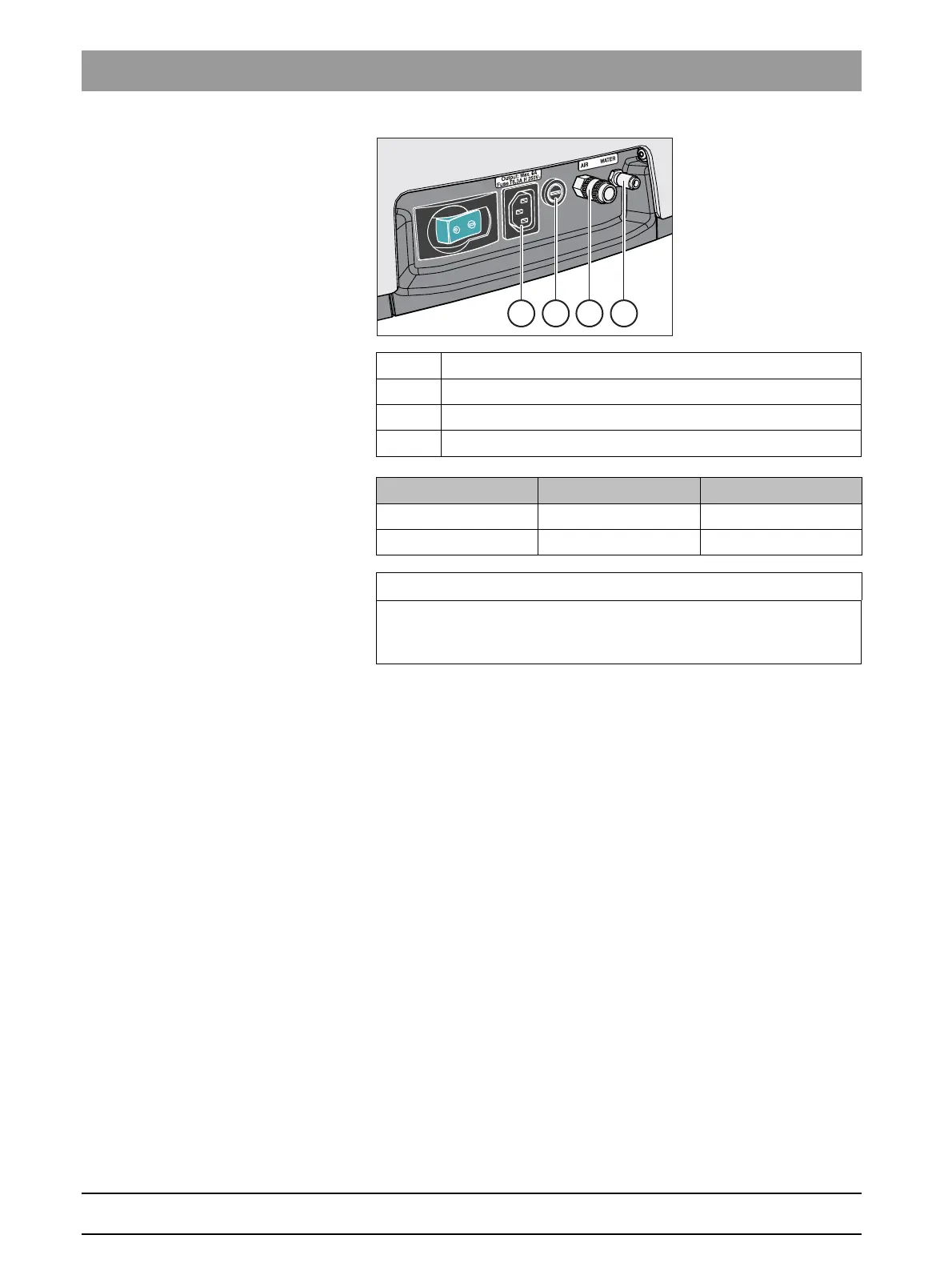

3.12External device connection Operating Instructions INTEGO
External device connection, reduced performance of integrated consumers
A IEC outlet socket with power supply (max. 6 A)
B Fuse for inlet connector (6.3 A slow-blow)
C Quick coupling for air
D Quick coupling for water
Pressure Flow rate
Water 2.2 ± 0.2 bar max. 300 ml/min
Air 4.4 ± 0.5 bar max. 50 Nl/min
IMPORTANT
The removal of media at the external device connection can reduce the
performance of integrated consumers, e.g., the filling quantity of the
tumbler or the highspeed handpiece.
