4.3Foot control Operating Instructions INTEGO

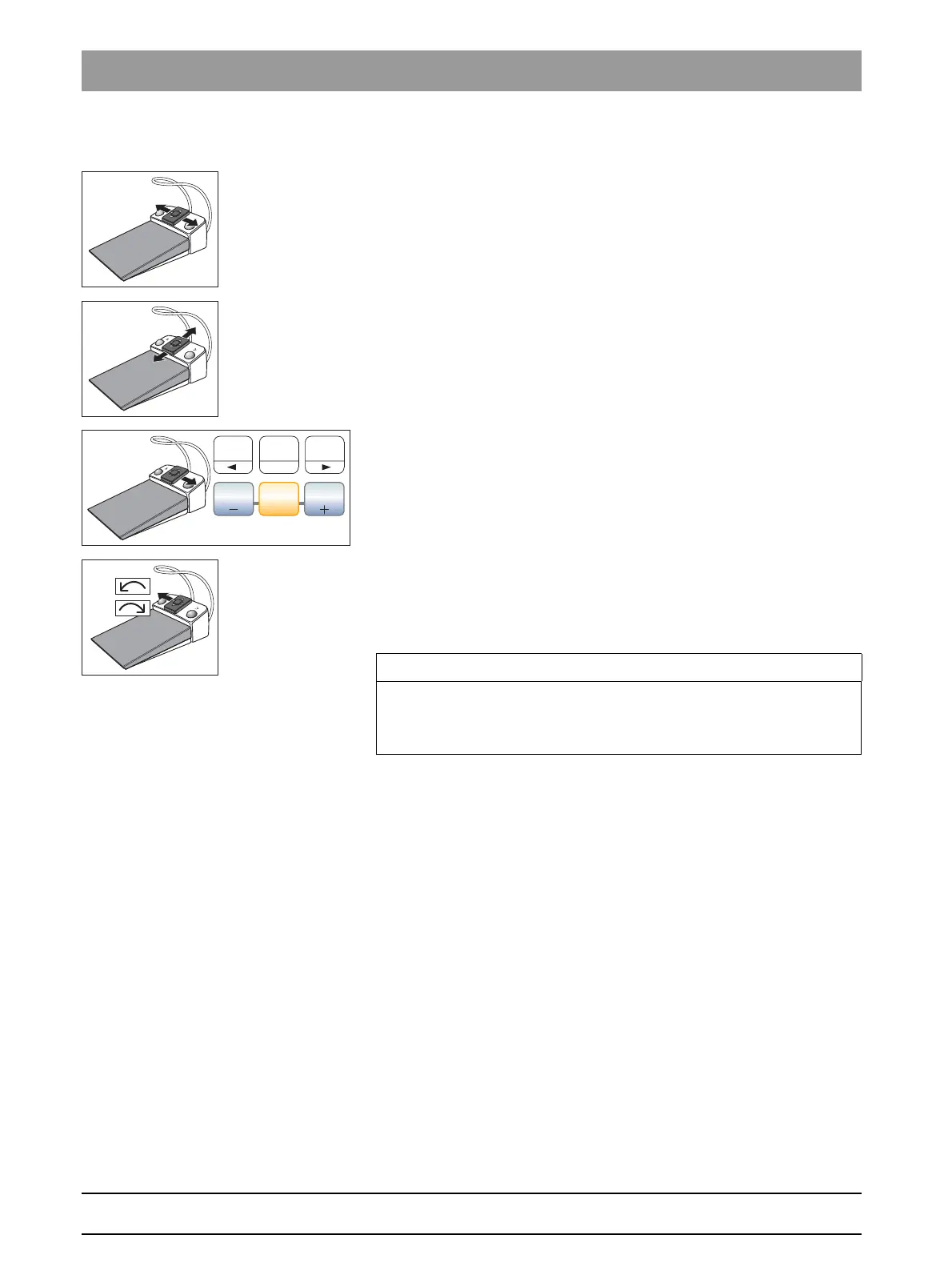

4-way foot control plate
✔ All instruments are in place.
➢ Move the 4-way foot switch plate to the left or right.
 Left: Chair program 1 is started.
Right: Chair program 2 is started.
✔ An electric motor or the SIROSONIC L is removed.
➢ Slide the 4-way foot switch plate up or down.
 Up: The speed or intensity is increased.
Down: The speed or intensity is reduced.
✔ An electric motor or the SIROSONIC L is removed.
➢ Slide the 4-way foot switch plate to the right.
 The instrument settings saved for the favorite key, e.g. speed,
intensity and activation of spray are called up.
✔ An electric motor is removed.
➢ Slide the 4-way foot switch plate to the left.
 The clockwise/counterclockwise rotation of the electric motor is
activated.
Foot switch, functions during active treatment
S
0
S
0
1
2
Setup
3
S
0
1.2 4020
Set
S
0
IMPORTANT
The allocation of functions may differ when torque control is active.
➢ When torque control is activated, follow the directions for operating
the foot switch, see "Integrated torque control" [ → 105].
