Positioning the CS dentist element (special position)
Alternatively, the support arm of the CS dentist element can be attached
to the left mount on the Compact water unit (special position) and with the
Comfort water unit to the front mount. This type of mounting minimizes the
travel distance of the dentist element and makes it easier for the patient
to get in and out of the chair.
With the Compact water unit, the support arm of the operating light is
attached to the right mount and with the Comfort water unit to the rear
mount.
Special position not possible
With the Ambidextrous water unit, the CS dentist element cannot be
installed in the special position.

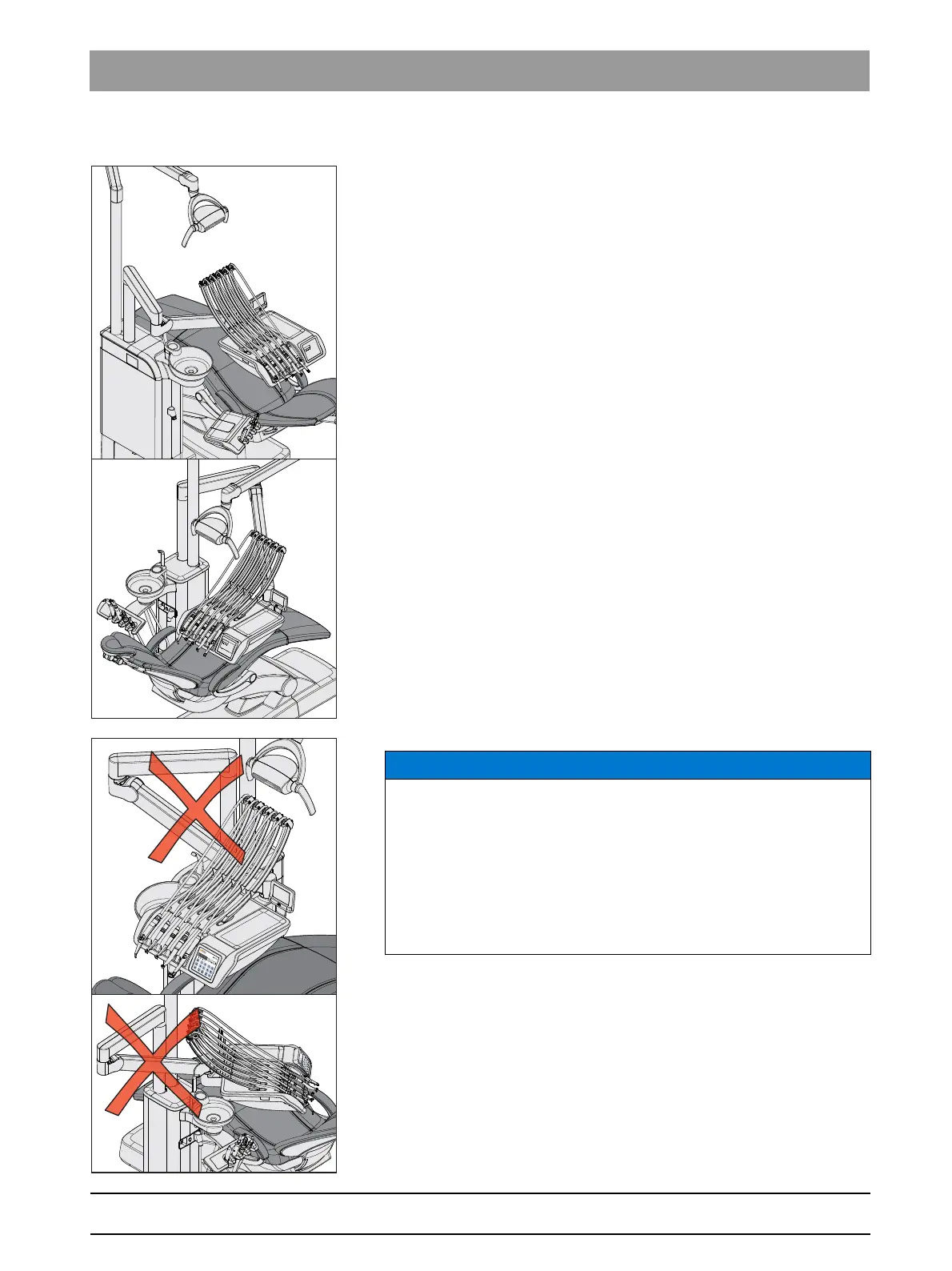

Dentist element with swivel arms, special positio n
NOTICE
In the special position, there is an increased danger of collision with the
following components:
• Between the support arm and tumbler filler
• Between the support arm and tumbler
• Between the support arm and cuspidor
• Between the support arm and the instruments of the assistant element
Always move the dentist element carefully to avoid collision.
Do not position the support arm behind the tumbler filler.
