Ski-Doo REV Series Shop Manual

Section04ENGINE
Subsection 01 (593, 593 HO, 593 HO SDI AND 793 HO ENGINE TYPES)

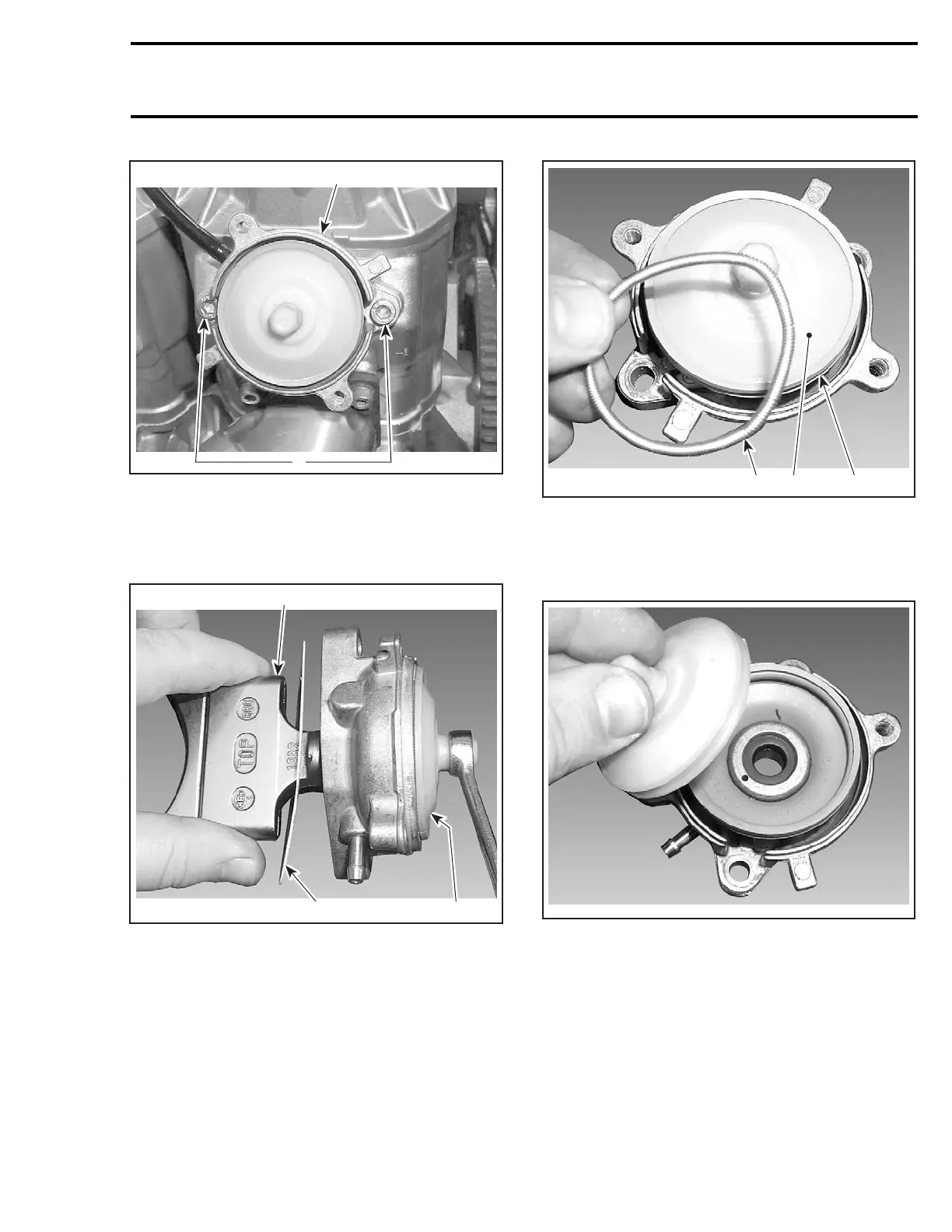

A32C98A
1
2
TYPICAL
1. Allen socket screws
2. RAVE valve base
Unscrew and remove the guillotine no. 9 from the
valve piston no. 10 than remove the gasket no. 11.
2
A32C99A
3
1
TYPICAL
1. Guillotine
2. Gasket
3. Valve piston
Remove spring no. 12 retaining bellows no. 13 to
valve piston.
1
A32C9AA
32
TYPICAL
1. Spring
2. Valve piston
3. Bellows
Remove valve piston.
A32C9BA
TYPICAL
Remove the small spring no. 14 retaining bellows
to valve base.
mmr2004-Rev 91
