Ski-Doo REV Series Shop Manual

Section 08 REAR SUSPENSION
Subsection 03 (DRIVE AXLE)

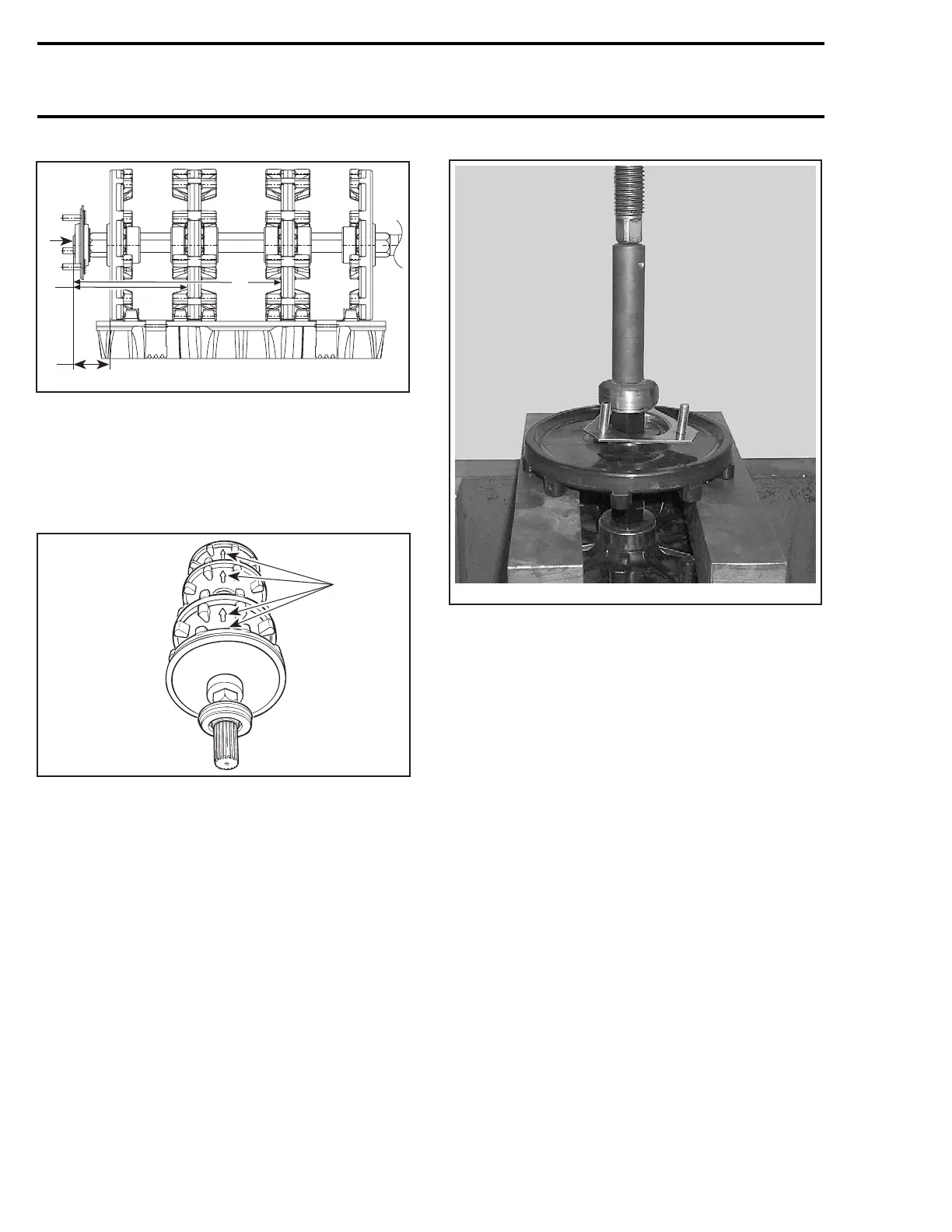

A32D47A
1
A
B
C
SUMMIT ADRENALINE/SPORT AND HIGHMARK
1. Measure from end of drive axle
A. 48.3 mm (1.90 in)
B. 150.8 mm (5.94 in)
C. 273.8 mm (10.78 in)
Ensure to align indexing marks of each sprocket
when assembling.
A24D05A
1
TYPICAL
1. Indexing marks aligned
CAUTION: The same sprocket must not be
pressed twice on the axle. When sprocket
has been removed from drive axle, use a new
sprocket at the installation.
Bearing Protector
At assembly, flat side of bearing protector no. 7
must be against bearing.
Bearing
Always push bearing no. 8 by inner race.
A33D0OA
The bearing no. 8 must have its shield facing the
sprocket.
The bearing no. 1 must have its shield facing right
side (cover).
When installing seal no. 2 ensure to position it as
shown in the exploded view.
Index speedometer magnetic adapter no. 4 in
drive axle and push until it is completely inserted
in its hole.
LUBRICATION
Lubricate end housing bearing with suspension
synthetic grease (P/N 293 550 033). Continue lu-
bricating until grease flows out of the pilot hole on
speedometer sensor.
314 mmr2004-Rev

Ski-Doo REV Series Specifications

General

Chassis	REV
Track Width	15 in
Fuel Capacity	10.6 gal
Seating Capacity	1
Reverse	Available on most models
Electric Start	Available on most models
