Ski-Doo REV Series Shop Manual

Section 08 REAR SUSPENSION
Subsection 02 (SC-10 III SUSPENSION)
A33F45A

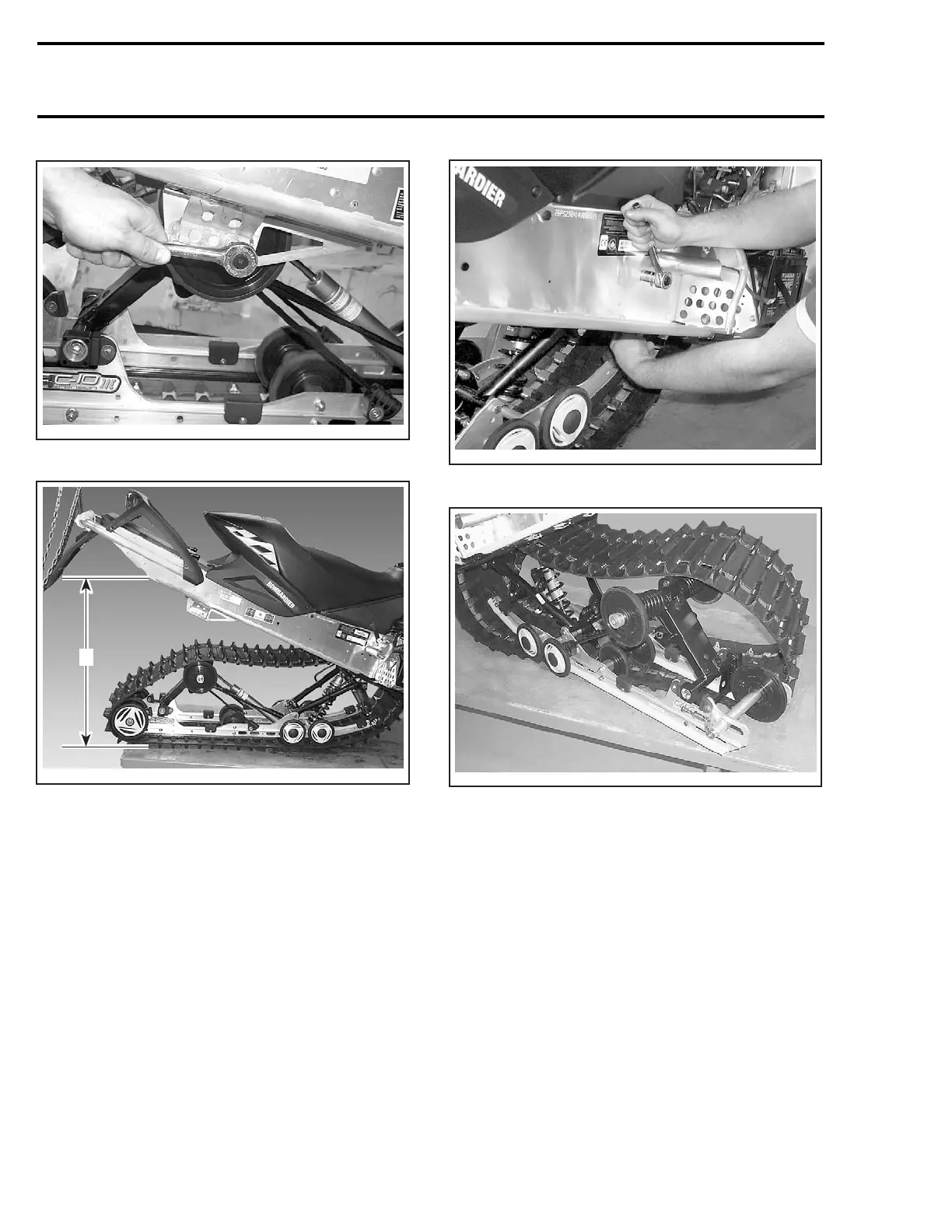

Lift rear of vehicle at least 1 m (3 ft).
A33F46A
A
TYPICAL
A. At least 1 m (3 ft)
Models with SC-10 III 121 in Suspension
In case of gas pressure shocks, to facilitate the
suspension removal, it is necessary to remove the
rear shock no. 23.
All Models
Remove both self-locking screws no. 2 retaining
front arm to tunnel.
A33F47A
Remove suspension.
A33F1PA
DISASSEMBLY AND ASSEMBLY
Inspect track thoroughly before reinstalling sus-
pension. Refer to TRACK.
Outer Bushing
At installation, hole of outer bushing no. 7 must
face adjustment screw.
298 mmr2004-Rev
