Ski-Doo REV Series Shop Manual

Section04ENGINE
Subsection 06 (REWIND STARTER)

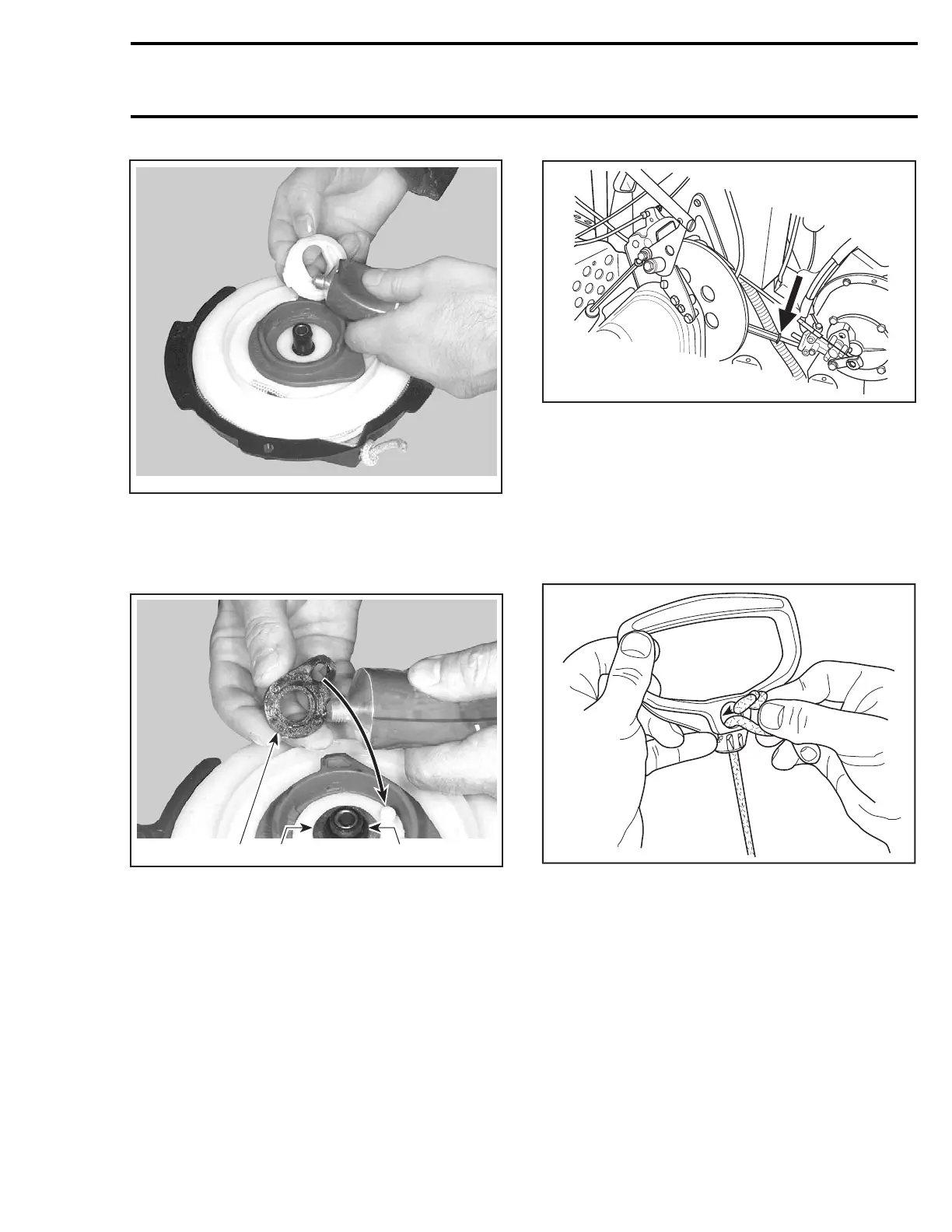

A32C6DA
Install step collar no. 7 with its sleeve first. Lubri-
cate a new O-ring no. 2 and locking element no. 8
with Molykote PG 54 (P/N 420 899 763). Install
over pawl lock.
A32C6EA
31 2
1. Step collar
2. O-ring
3. Locking element
Install a new push nut no. 5.
INSTALLATION
Fuse rope end with a lit match.
Thread starter rope no. 1 through rope guide when
applicable.
A03C0VA
TYPICAL
Reinstall rewind starter assembly on engine.
Prior to installing starter grip on new rope, it is first
necessary to fuse the rope end with a lit match.
Pass rope through starter grip and tie a knot in
theropeend. Fusetheknotwithalitmatchthen
insert rope end down and pull the starter grip over
the knot.
A32C6FA
TYPICAL
mmr2004-Rev 143
