If water level drops to an even level in less than 10
seconds, the DPM manifold is defective. Replace
DPM manifold parts, (refer to Parts Catalog)and
re-test. If test fails again, replace DPM manifold.
If you are unable to attain any amount of vacuum
(water level increases and decreases immediately
in tube), check your set-up and re-do the test.
If you still cannot attain any vacuum, DPM mani-
fold is defective. Replace DPM manifold.
THROTTLE CABLE
THROTTLE/OIL PUMP CABLE
REMOVAL
NOTE: Before removing the cable from vehicle,
note its routing for installation.

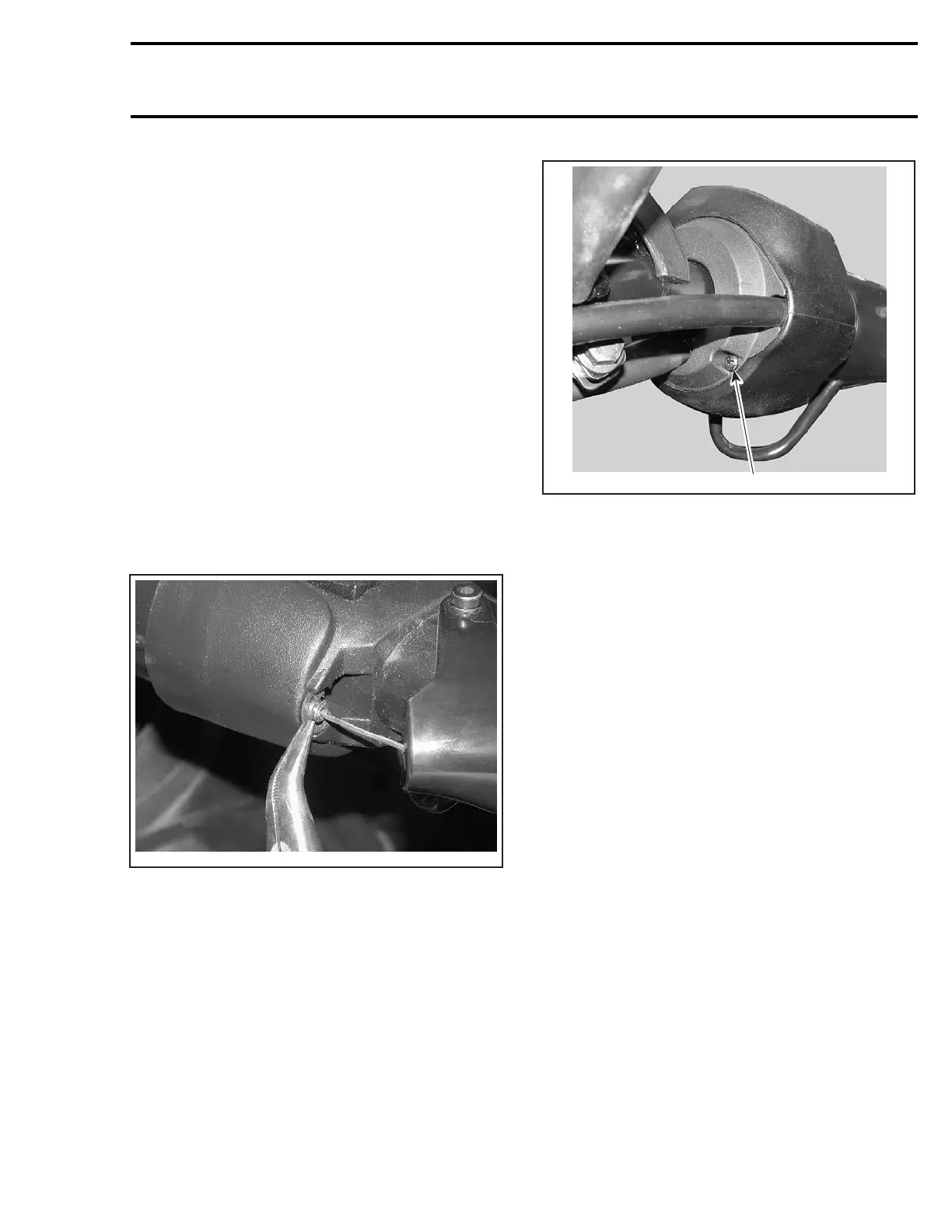

Usinglongnoseplierstoholdthecable,pushthe
end of cable out of its location.
Remove the retaining circlip.
A32A1IA
TYPICAL
Remove the handle cover.
1
A33C2YA
1. Handle cover screw
Unhook the cable sheath then remove the cable
from handle.
Remove air intake silencer.
Disconnect the cable end from carburetors or
throttle body.
Disconnect cable end from oil pump.
NOTE: The carburetors or the throttle body can be
removed to allow an easier access to the oil pump.
THROTTLE/OIL PUMP CABLE
INSTALLATION
For installation, reverse the removal procedure.
To adjust throttle and oil pump cables see further
in this section.
THROTTLE CABLE ADJUSTMENT
Adjust throttle cable as per following procedure:
Loosen throttle cable housing adjusting and lock-
ing nuts.
Connect throttle cable barrel to carburetor cam
lever no. 16.
While holding throttle lever to wide open throttle
position, pull on the throttle cable until mechanism
touches the stopper. In this position, turn cable
housing adjusting nut and tighten lock nut.
Also ensure that, when throttle is released to idle
position, the idle adjusting screw end touches its
stopper.
mmr2004-Rev 155
