Section 07 ELECTRICAL SYSTEM
Subsection 03 (BATTERY)
BATTERY
NOTE: For manual start SDI models with a small
battery/capacitor arrangement, refer to ENGINE
MANAGEMENT SECTION.
GENERAL
Sealed valve regulated lead acid (VRLA) battery
are used. They are non-spillable and maintenance
reduced — no electrolyte level to be checked and
readjusted. No ventilation tube is attached to the
battery.
SUPPLIER P/N BOMBARDIER P/N
YTX20L-BS 515 1756 42
REMOVAL
WARNING
Battery BLACK negative cable must always be
disconnected first and connected last.
WARNING
Never charge or boost battery while installed
on vehicle.
Open right side panel of vehicle.
Disconnect BLACK negative cable end from the
terminal.
Slide off rubber boot from RED cable and discon-
nect it.
Unscrew the bracket retaining nut and lift bracket
to remove it.
Put bracket aside.
Remove battery.

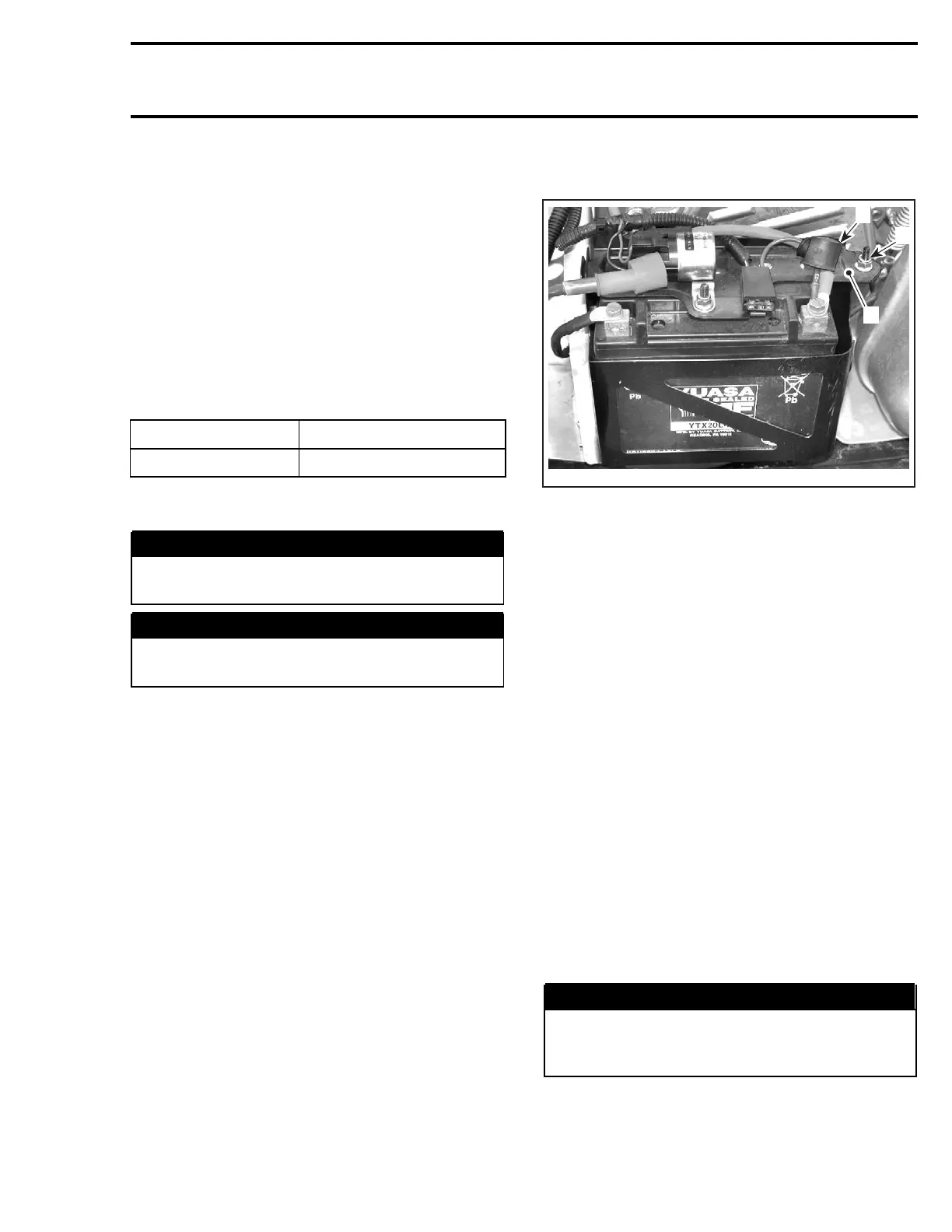

A33E0UA
1
2
3
1. Rubber boot of RED positive cable terminal
2. Bracket retaining nut
3. Battery bracket
CAUTION: Should any electrolyte spillage oc-
cur, immediately wash off with a solution of
baking soda and water to prevent damage to
vehicle components.
CLEANING
Clean the battery, battery casing, cables and bat-
tery posts using a solution of baking soda and wa-
ter.
Remove corrosion from battery cable terminals
and battery posts using a firm wire brush. Bat-
tery top should be cleaned by soft brush and any
grease-cutting soap or baking soda solution.
INSPECTION
Visually inspect battery casing for cracks, leaks or
other possible damage. Discoloration, warping or
raised top, indicates that battery has overheated
or been overcharged. If casting is damaged, re-
place battery and thoroughly clean battery tray and
close area with water and baking soda.
WARNING
Should the battery casing be dama
ged, wear
a suitable pair of non-absorbe
nt gloves when
removing the battery by hand
.
Inspect battery posts for security of mounting.
mmr2004-Rev 259
