Ski-Doo REV Series Shop Manual

Section 01 TOOLS AND SERVICE PRODUCTS
Subsection 01 (SERVICE TOOLS)

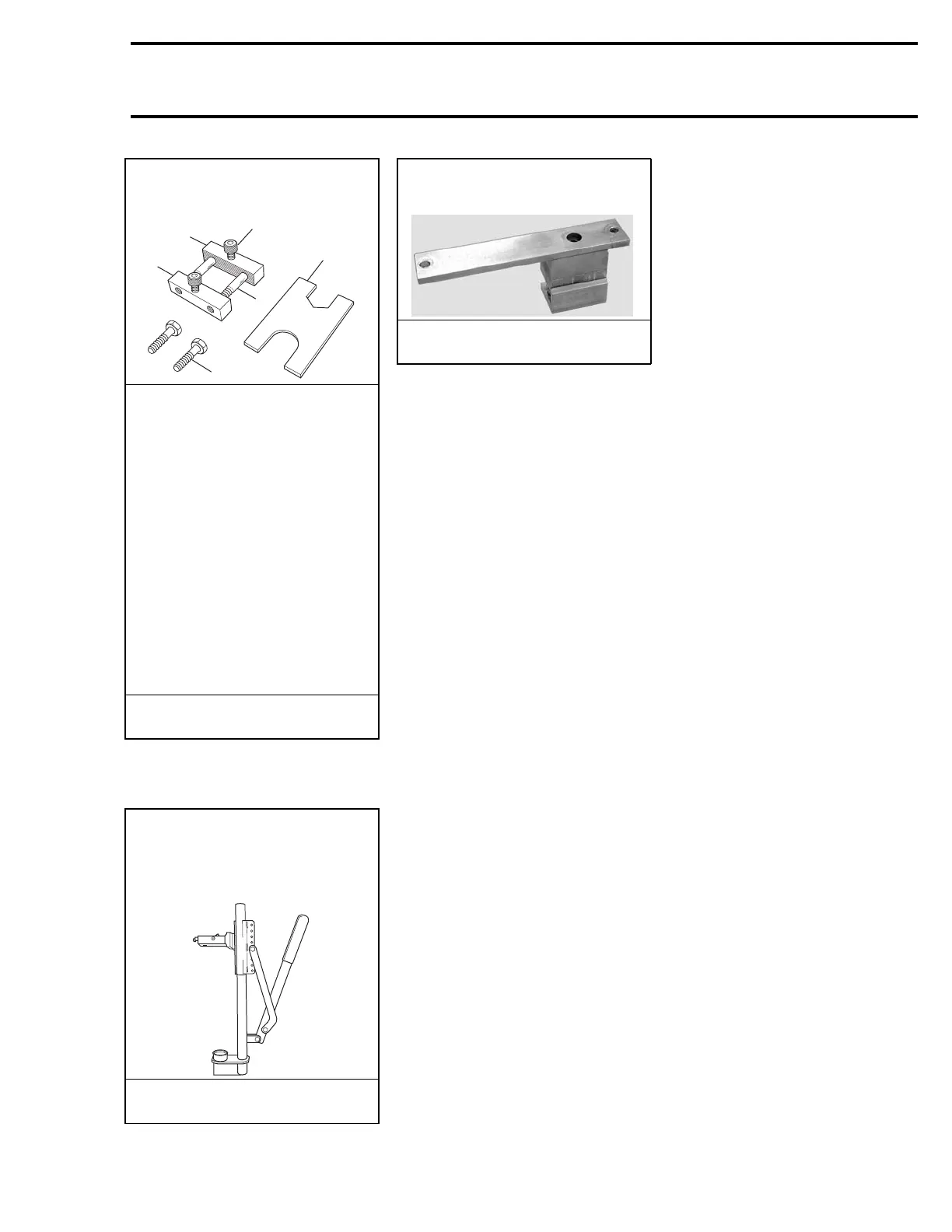

Drive axle sprocket adjuster
(P/N 861 725 700)
1
2
5
3
6
4
Parts included in the kit:
1) Block with threads (P/N 529
010 700)
2) Block without threads
(P/N 529 010 800)
3) Plate (P/N 529 010 600)
4) Bolt M10 (2) (P/N 222 007
565)
5) Allen screw M8 (2) (P/N 222
983 065)
6) Screw M8 (2) (P/N 222 082
565)
NOTE: When the tool is to
be used between tunnel and
sprocket use screw M8.
APPLICATION
All vehicles.
Belt tension tool
(P/N 529 035 957)
APPLICATION
Elite.
SUSPENSION — MANDATORY TOOLS
Shock spring removal kit
(P/N 529 035 504)
Replacement clevis pin
(P/N 414 528 400)
APPLICATION
All suspension with coil spring.
mmr2004-Rev 15

Ski-Doo REV Series Specifications

General

Chassis	REV
Track Width	15 in
Fuel Capacity	10.6 gal
Seating Capacity	1
Reverse	Available on most models
Electric Start	Available on most models
