Ski-Doo REV Series Shop Manual

Section 06 TRANSMISSION
Subsection 05 (BRAKE)
BRAKE

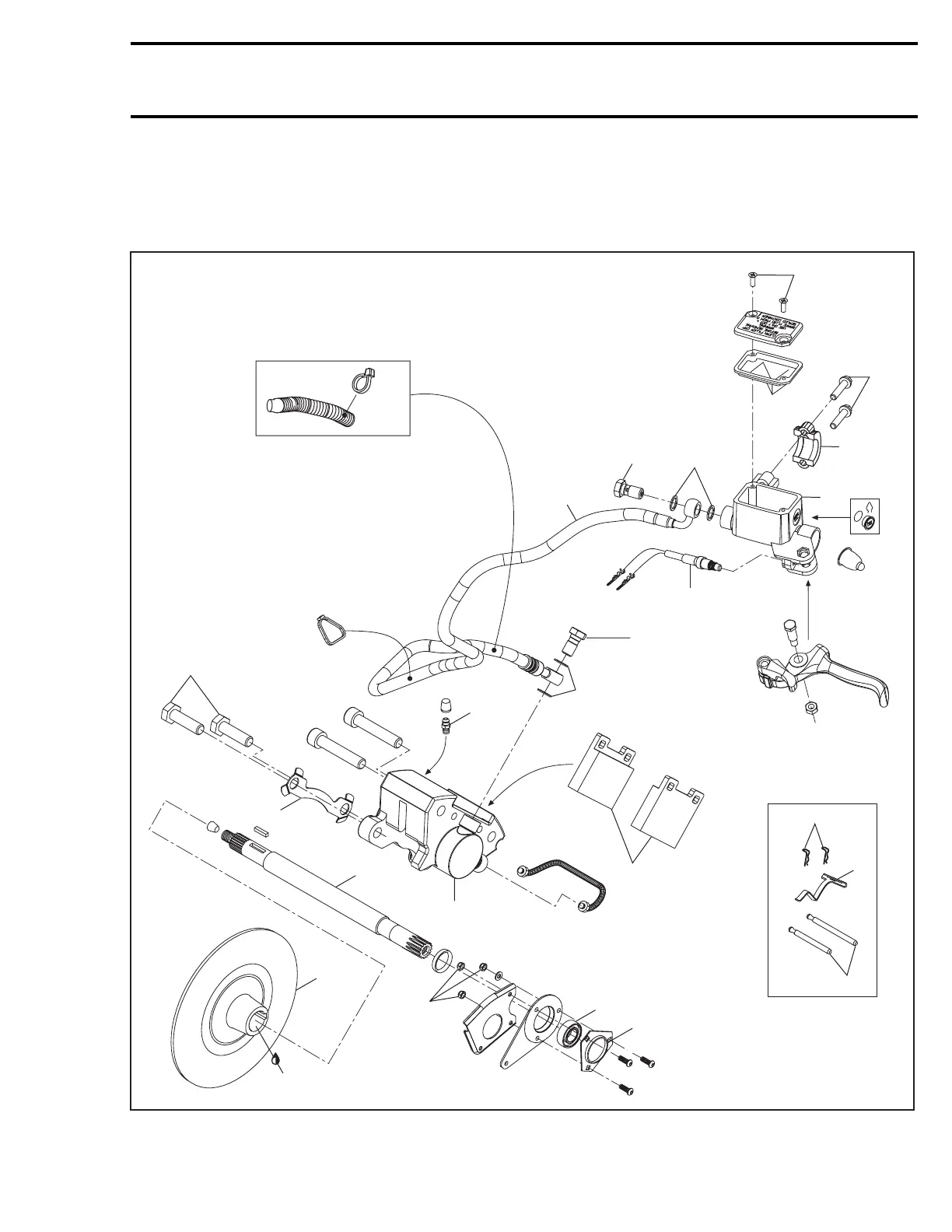

HYDRAULIC BRAKE
A33D1ES
2
1 Nm
(9 lbfin)
5
1
12
13
14
9
6
16
17
15
25 Nm
(18 lbfft)
10
20
42 Nm
(31 lbfft)
21
19
8
7
24 Nm
(18 lbfft)
18
4
3
11
Anti-seize
lubricant
mmr2004-Rev 239
