Take out knot and then pull out rope no. 1.
ASSEMBLY

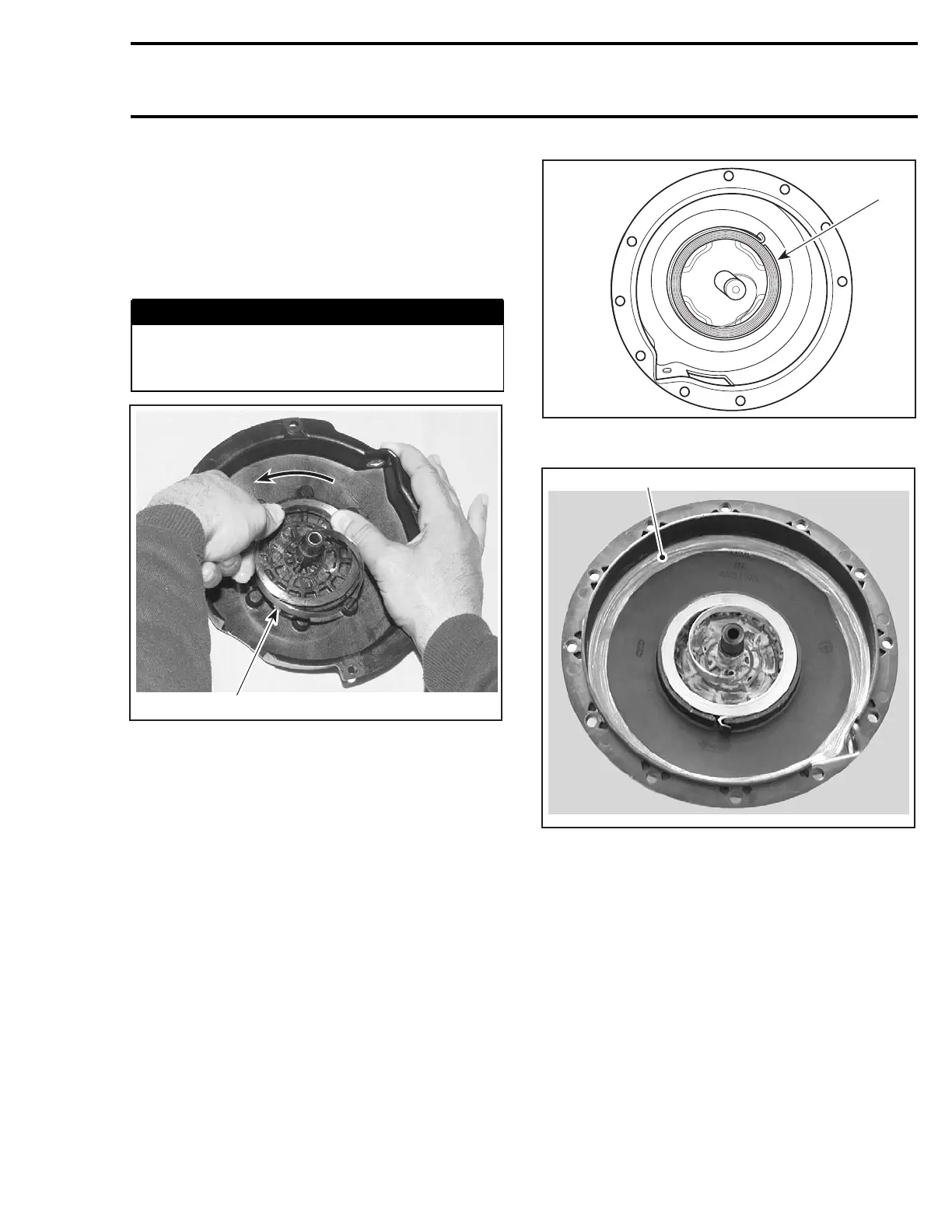

At assembly, position spring no. 11 outer end into
spring guide notch then wind the spring counter-
clockwise into guide.

WARNING
Since the spring is tightly wound inside the
guide it may fly out when rewind is handled.
Always handle with care.
A03C3FA
1
TYPICAL
1. Outer end into guide notch
CAUTION: It is of the utmost importance that
the rewind starter spring be lubricated period-
ically using Molykote PG 54 (P/N 420 899 763).
Otherwise, rewind starter component life will
be shortened and/or rewind starter will not op-
erate properly under very cold temperatures.
Lubricate spring assembly and 1 cm (1/2 in)
wide on bottom of housing with Molykote PG 54
(P/N 420 899 763).
A01C14A
1
TYPICAL
1. Molykote PG 54 inside spring guide
1
A32C2AA
1. Molykote PG 54 applied 1 cm (1/2 in) wide on bottom of housing
CAUTION: The use of standard multi-purpose
grease could result in rewind starter malfunc-
tion.
To install rope no. 1, insert rope into sheave no. 10
orifice and lock it by making a knot, leaving behind
a free portion of about 25 mm in length. Fuse rope
end with a lit match and insert it into sheave.
mmr2004-Rev 141
