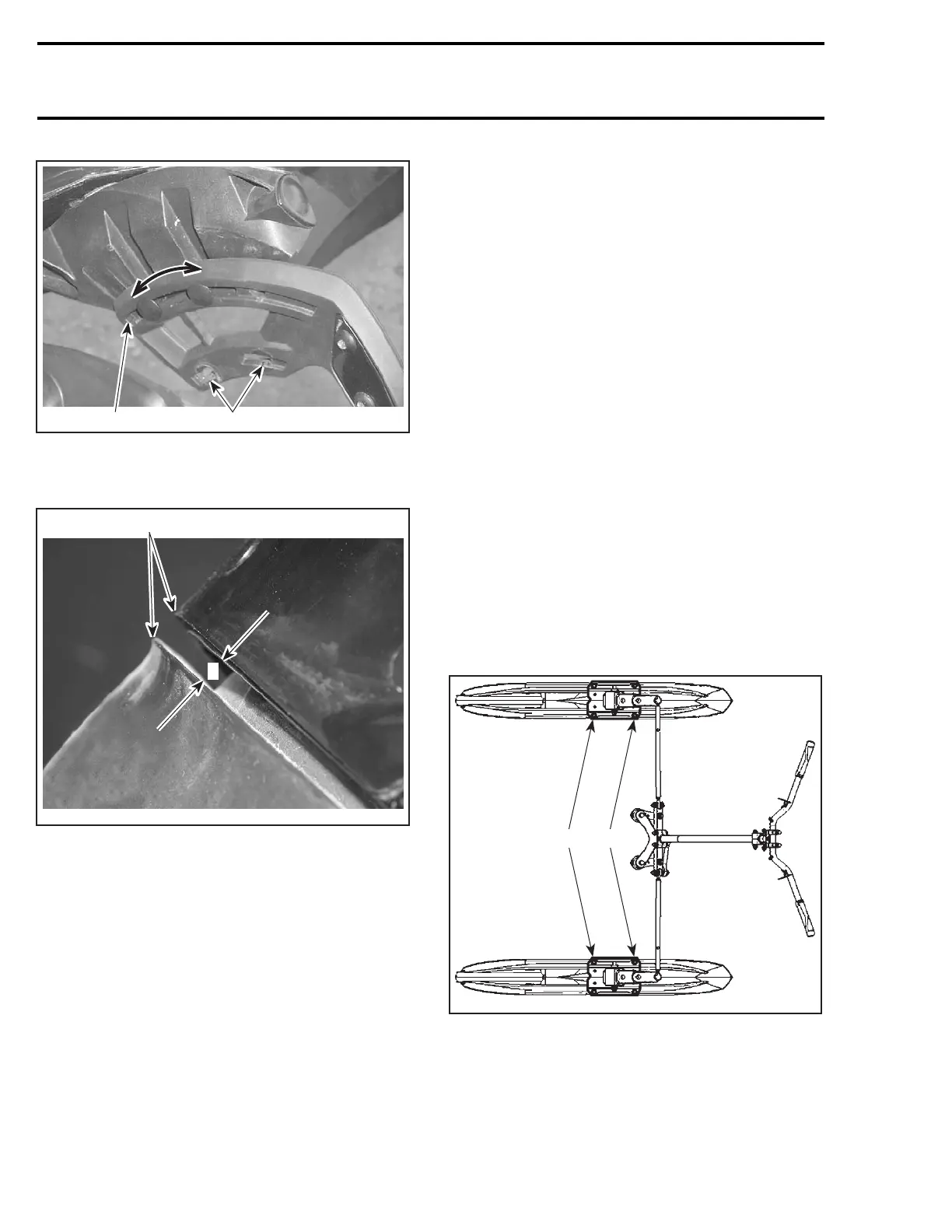

Section 09 STEERING/FRONT SUSPENSION
Subsection 01 (STEERING SYSTEM)
2
A33H17A
1
1. Slot when windshield is installed in rearward
steering column position
2. Slots when windshield is installed in forward
steering column position
A
1
A33H18A
PROPER FIT OF WINDSHIELD VERSUS CONSOLE
1. In line
A. 8to12mm(3/8to1/2in)
Handlebar Strap
Some Models
Ensure to position strap no. 28 symmetrically each
side of steering support and so that its rubber band
is on the inner side. Tilt strap 5° towards driver
relative to steering column axis or relative to han-
dlebar extension on so equipped models.
On Renegade X and Summit Series, position strap
between rubber band and screw end to protect
the rubber band.
Retaining clip and hardware must be installed in
thesamepositiononbothstrapends.
J-Hook Adjustment
Some Models
Position J-hook so that its curved end is pointing
downward and is roughly vertical. Ensure to ad-
just J-hooks at the same position each side.
Hand Guard Adjustment
Some Models
Position RH guard 8 mm (5/16 in) from throttle
housing and LH guard 4 mm (5/32 in) from brake
retaining clamp. Position hand guards so that their
inner face is roughly vertical. Torque top screw
first to 3.5 N•m(31lbf•in) then torque bottom
screw.
STEERING ADJUSTMENT (SKIS)
Definitions
TOE-OUT:
A difference measured between the front edge of
the ski bridge «A» and rear edge of ski bridge «B»
as viewed from the top.
A33G1DA
A B
Adjustments
SKI ALIGNMENT AND TOE-OUT
Ski alignment and toe-out are performed by adjust-
ing length of left and right tie rods no. 11.
330 mmr2004-Rev
