Subsection 07 (CARBURETOR AND THROTTLE CABLE)
2
3
A33C1OA
1

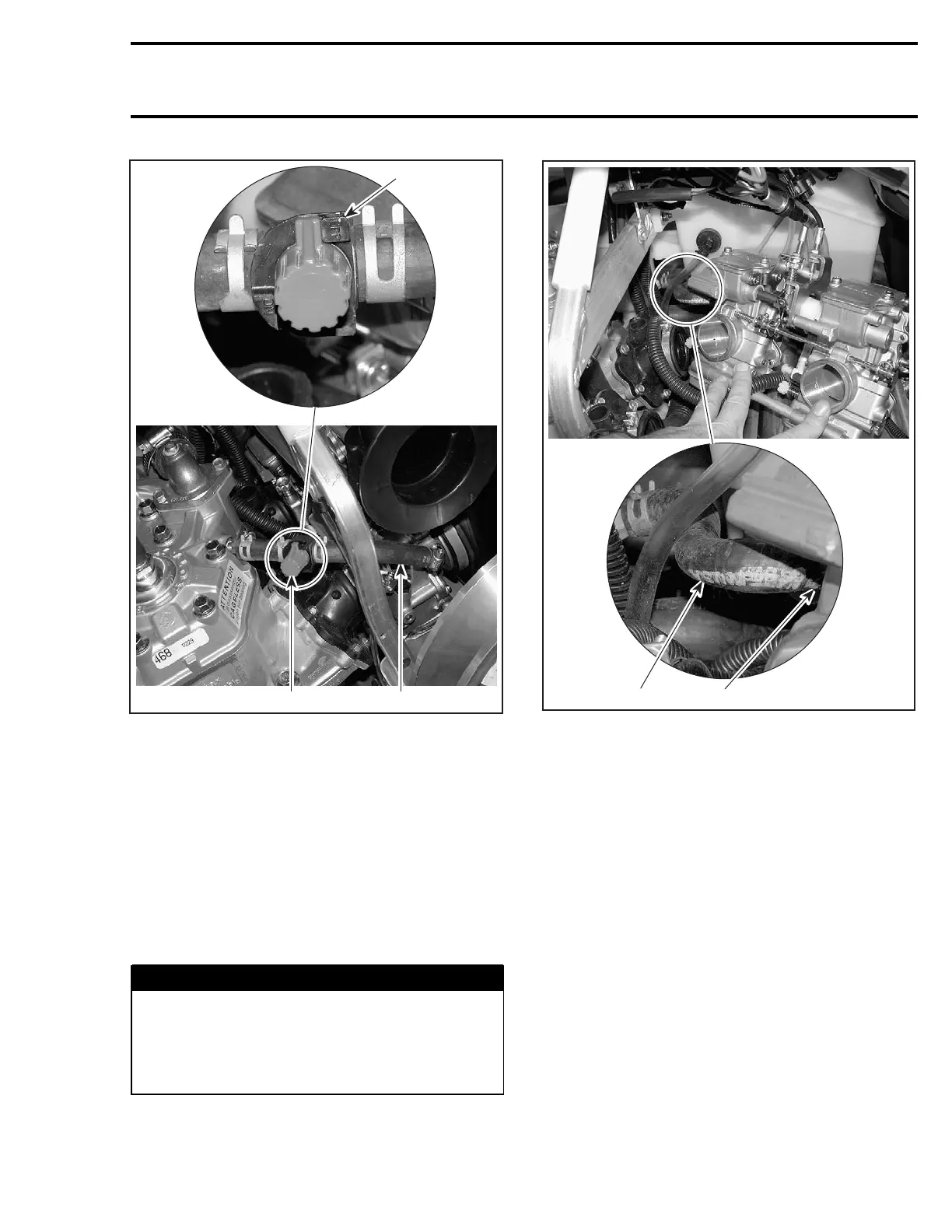

1. Inlet line
2. Valve
3. OFF
Disconnect heated carburetor coolant inlet line
taking care to recuperate coolant.
All Models
Disconnect throttle and choke cables.
Loosen clamps retaining dual carburetor assembly
to carburetor sockets.
Remove dual carburetor assembly, pinch and dis-
connect fuel line. Take care to recuperate fuel.
WARNING
Fuel is flammable and explosive under cer-
tain conditions. Always wipe off any fuel or
oil spillage from the vehicle. Ensure work
area is well ventilated. Do not smoke or
allow open flames or sparks in the vicinity.
Pinch heated carburetor coolant outlet line.
1
A33C1QA
2
1. Outlet line
2. Pinch here
Disconnect outlet line from carburetor assembly
taking care to recuperate coolant.
CLEANING AND INSPECTION
All Models
The entire carburetor should be cleaned with a
general solvent and dried with compressed air be-
fore disassembly.
CAUTION: Heavy duty carburetor cleaner may
be harmful to the float material and to the rub-
ber parts, O-rings, etc. Therefore, it is recom-
mended to remove those parts prior to clean-
ing.
Carburetor body and jets should be cleaned in
a carburetor cleaner following manufacturer’s
instructions. When jets are very dirty or coated
with varnish and gum, replace them.
