The resistance value of a temperature sensor may
test good at a certain temperature but it might be
defective at other temperatures. If in doubt, try a
new sensor.
Also remember this validates the operation of the
sensor at room temperature. It does not validate
the over temperature functionality. To test it, the
sensor could be removed from the engine/air si-
lencer and heated with a heat gun while it is still
connected to the harness to see if the ECM will
detect the high temperature condition and gener-
ate a fault code.

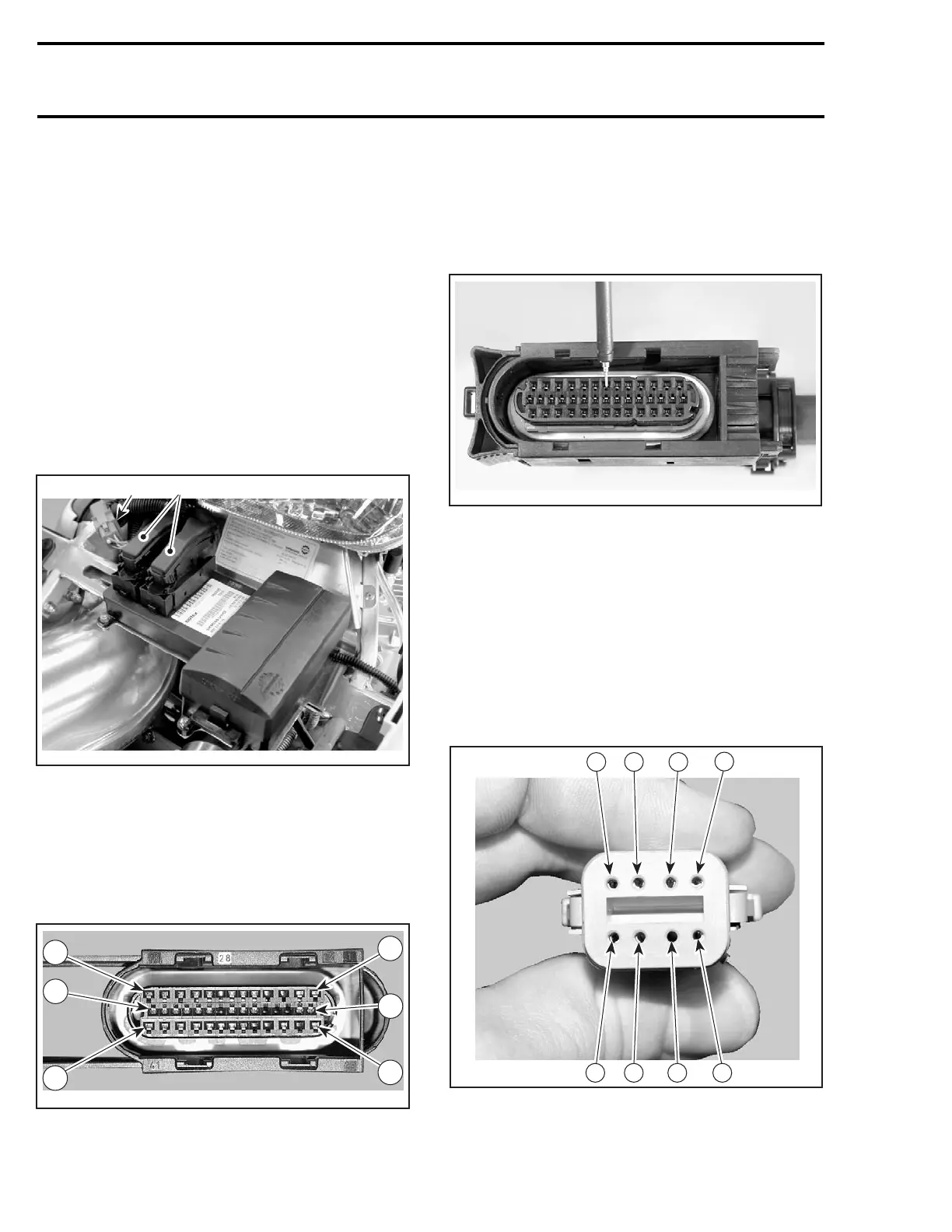

ENGINE CONNECTOR PIN-OUTS
Connector Position
A33I09B
1
2
1. ECM connectors
2. Engine connector
ECM Connector
Use this diagram to locate the pin numbers on
the ECM connector of the wiring harness when
performing tests.
R1503motr176A
1
13
28
41
29
14
ECM CONNECTOR PIN-OUT
(WIRING HARNESS SIDE)
CAUTION: Probe on top of terminal only. Do
not try to probe inside terminal or to use a pa-
per clip to probe inside terminal, it will dam-
age the square-shaped terminal and this could
lead to improper function of the engine man-
agement system.
A32CCPA
PROBE ONLY ON THE PIN NOZZLE OF FEMALE CONNECTOR
CAUTION: Do not disconnect the ECM connec-
tor needlessly. They are not designed to be dis-
connected/reconnected repeatedly.
NOTE: Do not apply dielectric grease or other lu-
bricant on the ECM connectors.
Engine Connector
Use this illustration to locate the pin numbers on
the engine connector of the wiring harness when
performing tests.
6
A32C9IA
7
8
5
1
2
34
ENGINE CONNECTOR PIN-OUT (WIRING HARNESS SIDE)
176
mmr2004-Rev
