Section 06 TRANSMISSION
Subsection 03 (DRIVEN PULLEY)

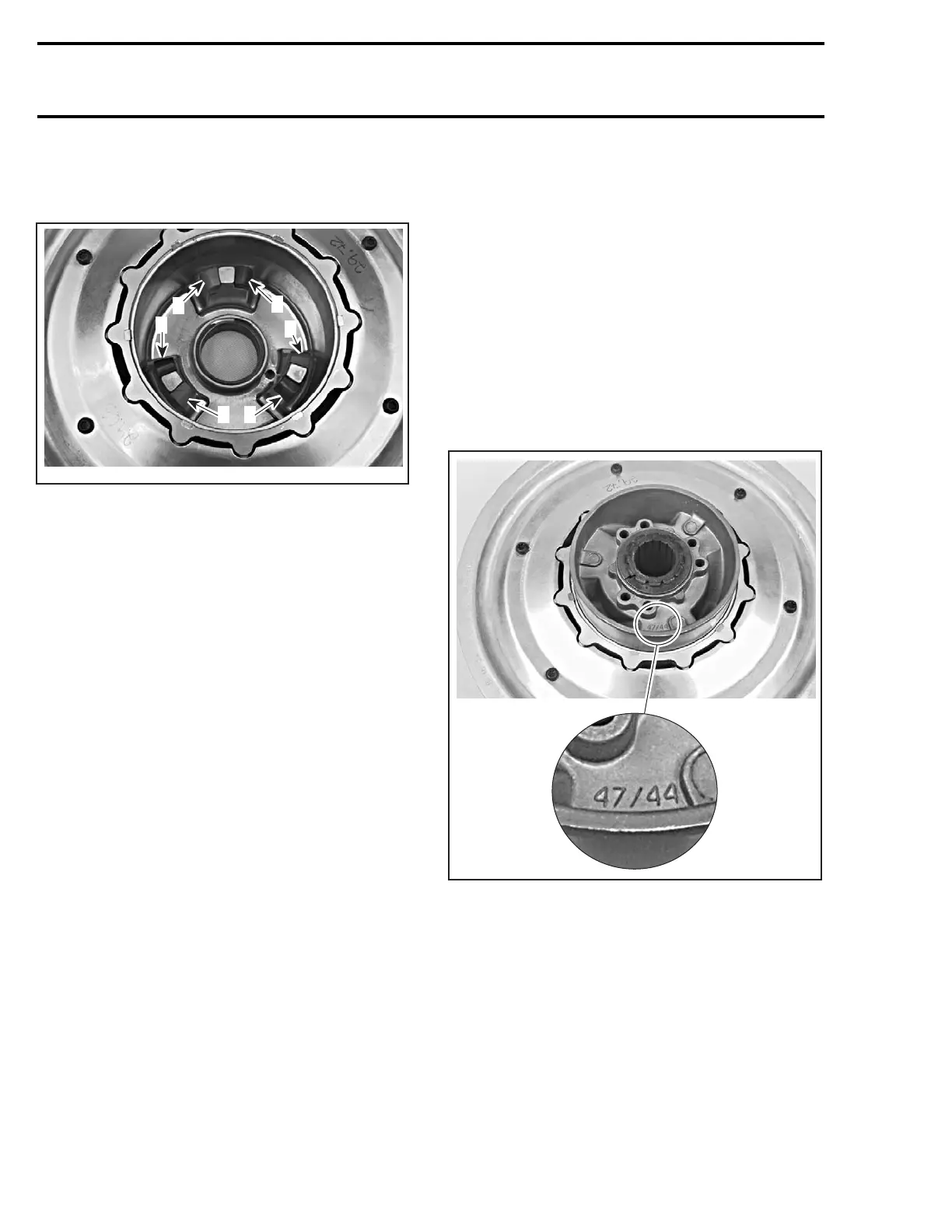

Install slider shoes as per following photo. Red
slider shoes are being used for reverse and black
ones for forward.
A30D0WA
1
1
2
2
2
1
1. BLACK slider shoe
2. RED slider shoe
Screws
Screws no. 12 are machined at their end. With
the adjustment ring steel to position 0 (zero),
screw ends are flush with inner side of fixed
pulley half when tighten.
CAUTION: If any of these screws is not flush
with inner side of sliding pulley, bushings will
worn unequally.
Assemble driven pulley components by reversing
the disassembly procedure.
Cam
Coat cam no. 11 interior with anti-seize lubricant.
INSTALLATION
Countershaft
CAUTION: Always apply anti-seize lubricant
(P/N 293 800 070) on the countershaft before
final pulley installation.
Should installation procedure be required, refer to
BRAKE then look for BRAKE DISC and COUNTER-
SHAFT BEARING ADJUSTMENT.
Reinstall the pulley on the countershaft no. 5 by
reversing the removal procedure.
ADJUSTMENT
Pulley Alignment and Drive Belt Height
Refer to PULLEY DISTANCE AND ALIGNMENT
and DRIVE BELT to perform adjustments.
CAUTION: Drive belt and pulley adjustments
must always be checked whenever pulleys
have been removed, replaced or disassem-
bled.
Cam
Make sure to install proper cam no. 11. Refer to
TECHNICAL DATA.
Cam angle is identified on cam.
A30D0XA
NOTE: For high altitude regions, a service bulletin
will give information about calibration according to
altitude.
