GASKET COMPOUND

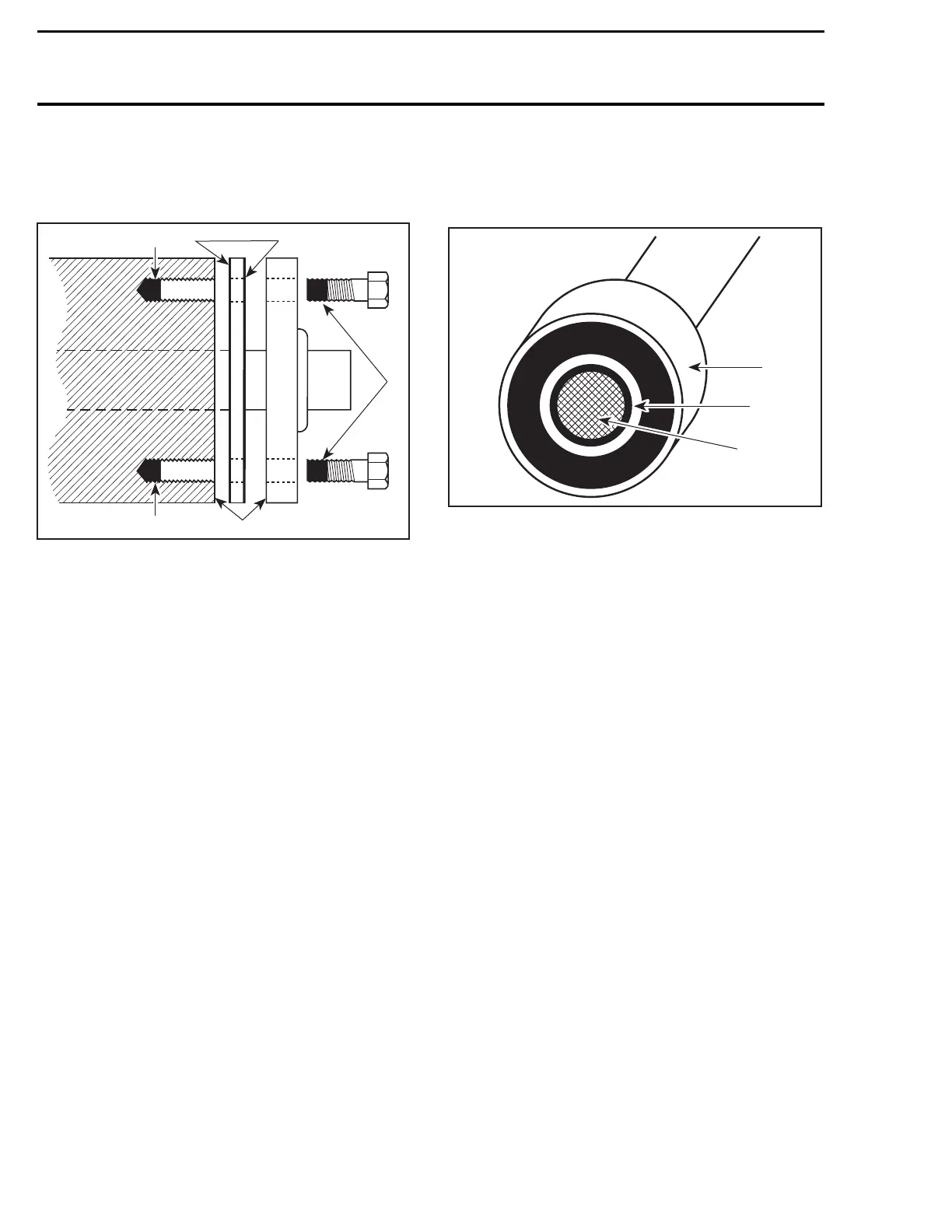

All Parts
A00A3SA
2
1
1
3
1
1. Proper strength Loctite
2. Loctite Primer N (P/N 413 708 100) and Gasket Eliminator
515 (P/N 413 702 700) on both sides of gasket
3. Loctite Primer N only
– Remove old gasket and other contaminants
with Loctite Chisel remover (P/N 413 708 500).
Use a mechanical mean if necessary.
NOTE: Avoid grinding.
– Clean both mating surfaces with solvent.
– Spray Loctite Primer N on both mating surfaces
andonbothsidesofgasket. Allowtodry1or
2 minutes.
– Apply GASKET ELIMINATOR 515 (P/N 413 702
700) on both sides of gasket, using a clean ap-
plicator.
– Place gasket on mating surfaces and assemble
immediately.
NOTE: If the cover is bolted to blind holes (above),
apply proper strength Loctite in the hole and on
threads. Tighten.
If holes are sunken, apply proper strength Loctite
on bolt threads.
– Tighten as usual.
MOUNTINGONSHAFT
Mounting with a Press
A00A3UA
1
2
3
1. Bearing
2. Proper strength Loctite
3. Shaft
Standard
– Clean shaft external part and element internal
part.
– Apply a strip of proper strength Loctite on shaft
circumference at insert or engagement point.
NOTE: Retaining compound is always forced out
whenappliedonshaft.
– DO NOT use anti-seize Loctite or any similar
product.
– No curing period is required.
Mounting in Tandem
– Apply retaining compound on internal element
bore.
– Continue to assemble as shown above.
