Section04ENGINE

Subsection 01 (593, 593 HO, 593 HO SDI AND 793 HO ENGINE TYPES)

A02C2CA

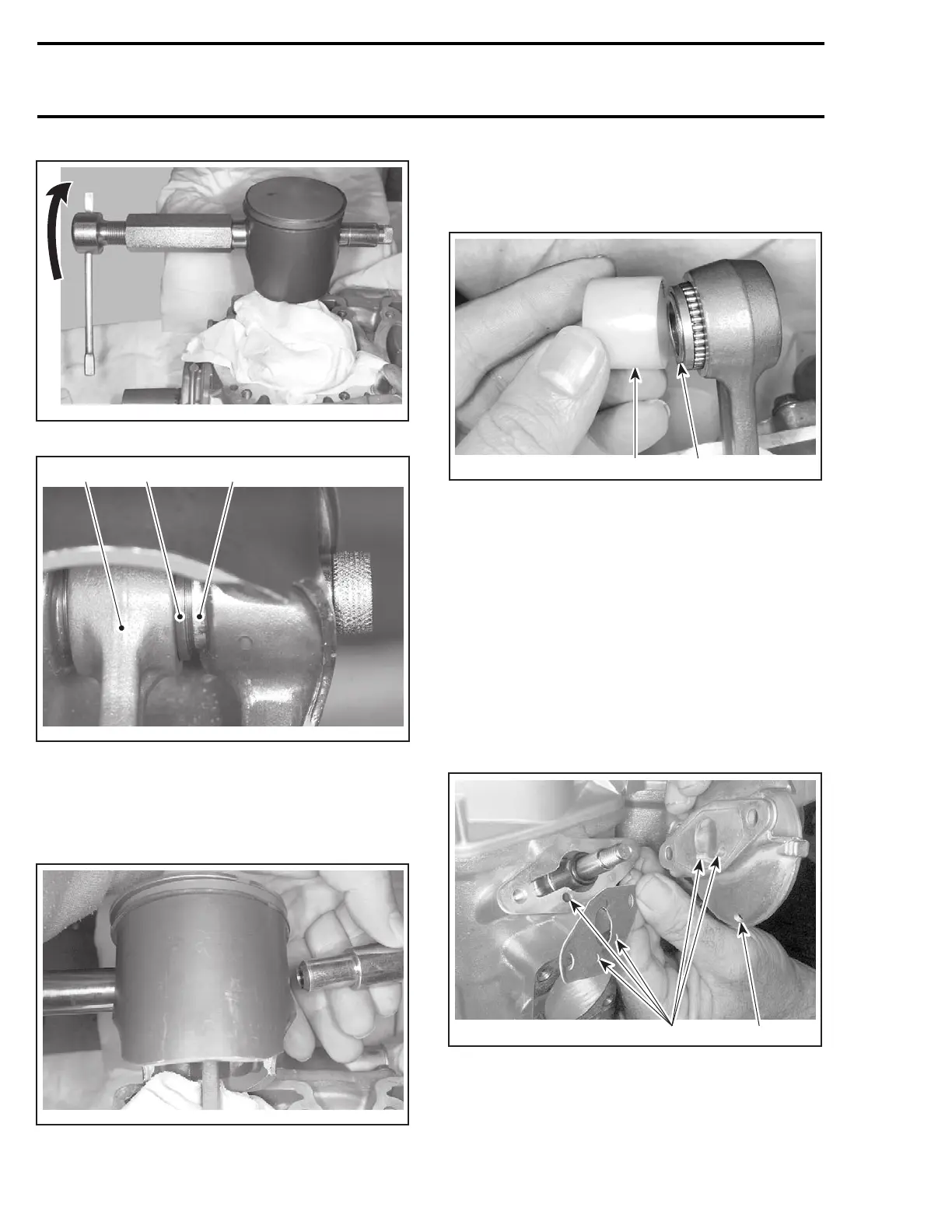

TYPICAL — PISTON PIN EXTRACTION

A02C2DA

TYPICAL

1. Sleeve inside bearing

2. Thrust washer

3. Shouldered sleeve end

Remove puller. Pull out shouldered sleeve care-

fully.

A02C2EA

TYPICAL

Remove piston from connecting rod.

Install locating sleeve. Then push needle bearings

along with thrust washers and sleeve.

A02C2FA

TYPICAL

1. Locating sleeve

2. Sleeve

INSPECTION

Cylinder Head Cover, Cylinder

Head and Cylinder

Refer to LEAK TEST AND ENGINE DIMENSIONS

MEASUREMENT.

RAVE System

Check valve rod housing and cylinder for clogged

passages (all models except SDI).

A32C16A

1. Draining hole

2. Passages

NOTE: Oil dripping from draining hole indicates a

loosen spring or damaged bellows.

94 mmr2004-Rev
