Ski-Doo REV Series Shop Manual

Section10BODY/FRAME
Subsection 01 (BODY)
1
A32H46A
1

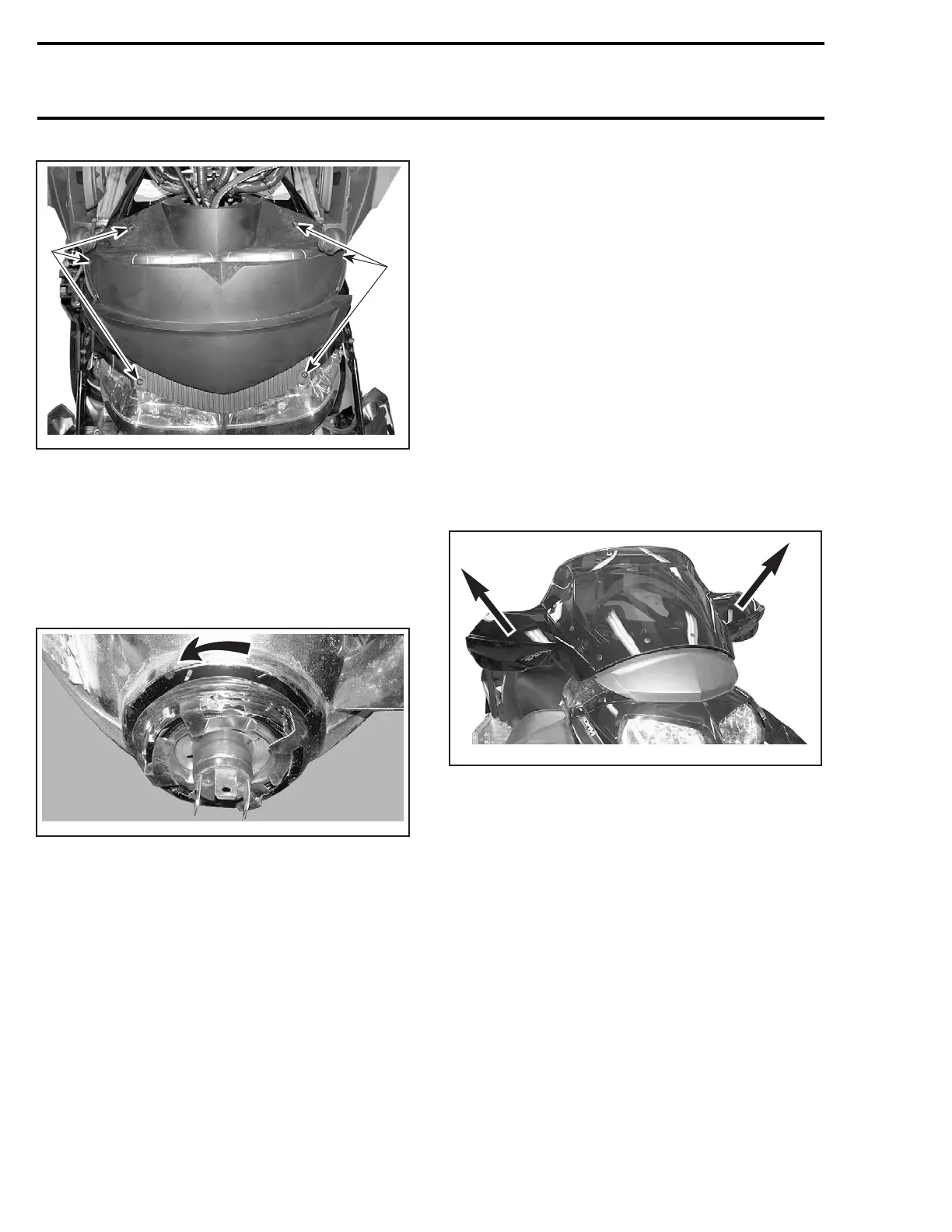

1. Remove screws
Unplug gauge connector(s).
Pull front console out.
Unplug burnt bulb connector. Remove the rubber
boot.
Turn bulb retainer ring counterclockwise to unlock.
Detach the bulb and replace.
A32H44A
CAUTION: Never touch glass portion of an
halogen bulb with bare fingers, as it short-
ens its operating life. If by mistake glass is
touched, clean it with isopropyl alcohol which
will not leave a film on the bulb. After lock-
ing ring installation, ensure bulb is properly
secured in place.
Properly reinstall removed parts.
Taillight
If the taillight bulb is burnt, expose the bulb by re-
moving red plastic lens. To remove, unscrew the
2 retaining screws. Verify all lights after replace-
ment.
DECAL
To remove a decal; heat old decal with a heat gun
and peel off slowly.
Using isopropyl alcohol, clean the surface and dry
thoroughly.
Apply liquid soap to new decal and carefully po-
sition the decal. Using a sponge or a squeegee,
remove the air bubbles and surplus water work-
ing from the center toward the edges. Allow to
air dry.
CAUTION: Do not apply isopropyl alcohol or
solvent directly on decals. Use only in a well
ventilated area.
WINDSHIELD
Pull windshield one side at a time as shown to
remove it.
A32H48A
Remove protective film when installing a new
windshield.
Apply liquid soap on grommets prior to installing
windshield to ease pin insertion.
344 mmr2004-Rev
